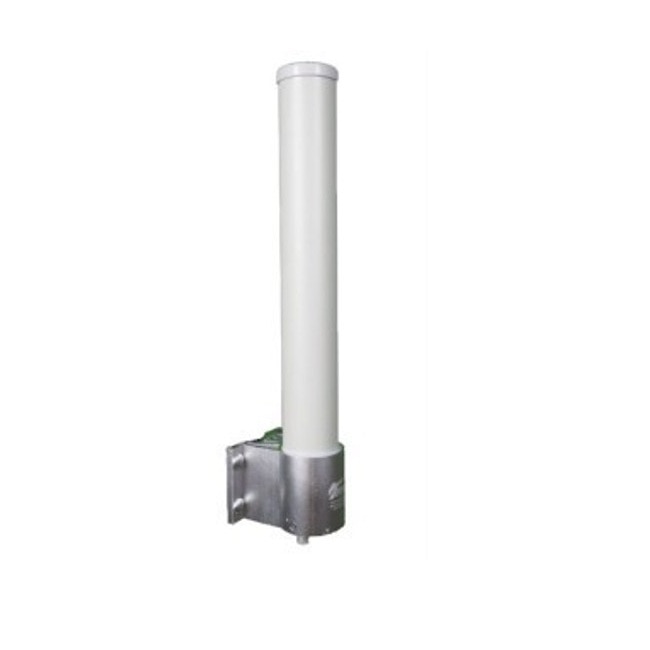

KP Performance 5 GHz 13 dBi H/V 2 N female MIMO Omni Antenna
- SKU: KPPA-5GHZ-DPOMA
US$215.99 US$239.99
Product Information
KP Performance KPPA-5GHZ-DPOMA
5 GHz 13 dBi H/V 2 N female MIMO Omni Antenna
The KPPA-5GHZ-DPOMA is a 5 GHz 13 dBi dual polarized H/V Omni antenna. Using an omni antenna like this is a practical solution when you are setting up a new tower and cannot justify the cost of putting up 3, 4 or more radios and sectors.
If you are deploying in a lower populated area omnis are always a consideration. These dual pol H/V omnis will provide you a very consistent pattern with no null zones.
Features:
- Out performs our competitors by 1 to 3 dBi
- Functional easy-to-install mounting bracket
- Flexible LMR 200 cables provided
- Stainless steel hardware
Specifications
Specifications KPPA-5GHZ-DPOMA
| Frequency Range | 5.15 GHz to 5.9 GHz | |
| Polarization Type | Horizontal/Vertical | |
| Gain | 12 to 16 dBi | |
| Vertical Beamwidth | 6.5° | |
| Horizontal Beamwidth | 360° | |
| Electrical Downtilt | 2° | |
| VSWR | < 2:1 | 1 |
| Cross Polar Ratio | >20 dB | |
| Port Isolation | >30 dB | |
| Connector Type | 2 x Type N Female | |
| Dimension | 28 in L x 6.5 in W x 7 in H | |
| Weight | 9 lbs |
