MikroTik MTAD-5G-30D3-4STD Parabolic dish antenna for 5GHz, 30dBi gain (4-pack)

(0)No Reviews yet
US$‎654.75 US$‎675.00
  • SKU: MTAD-5G-30D3-4STD
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Installation Guide:Download
9 in stock
College Station
9 In stock

Product Information

MikroTik RouterBOARD MTAD-5G-30D3-4STD (4-pack)

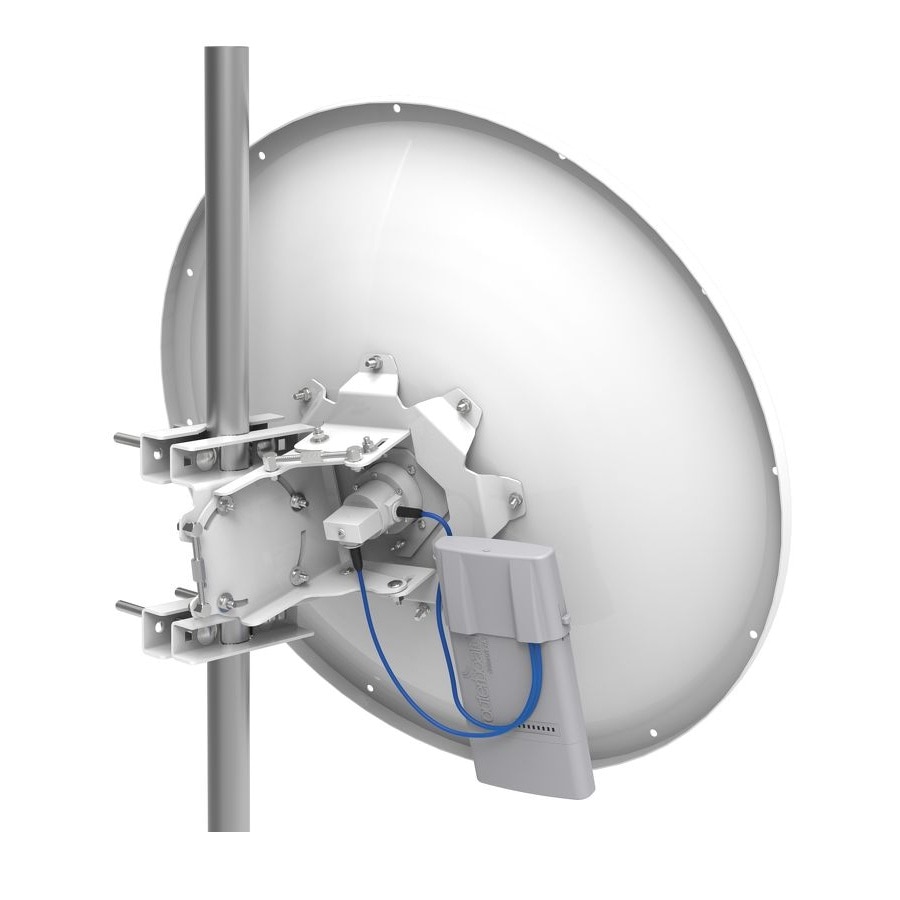

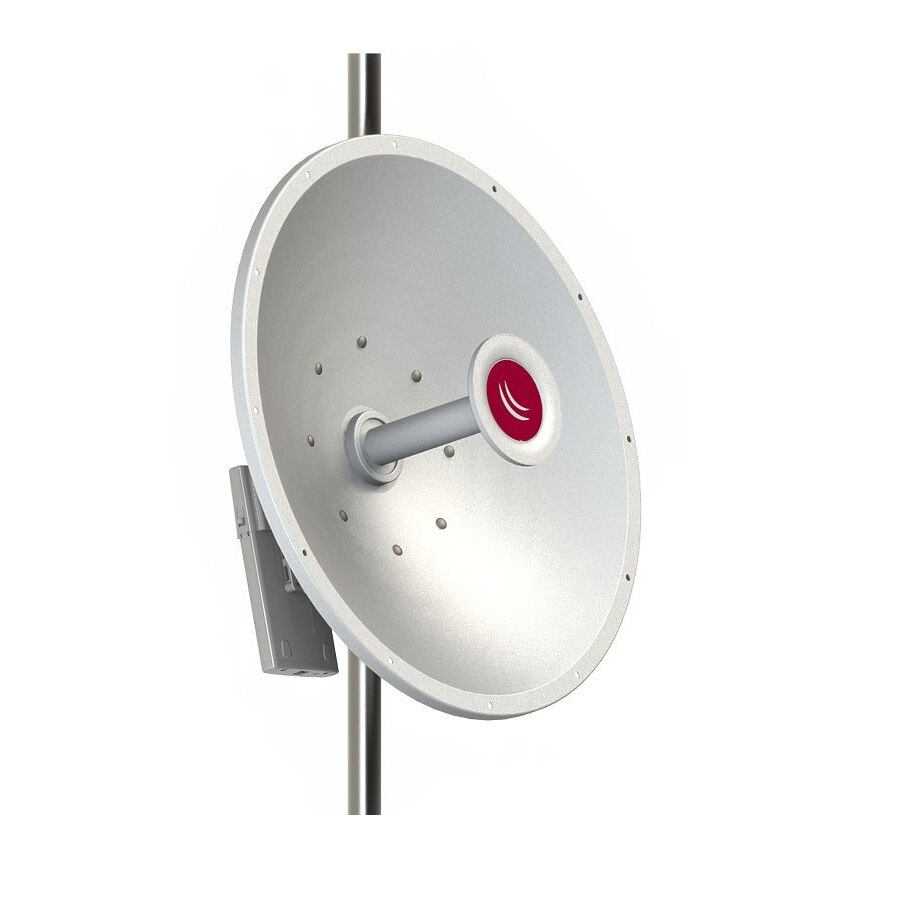

Parabolic dish antenna for 5GHz, 30dBi gain. This model includes precision alignment mount

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accommodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

Note: Basebox wireless device pictured for illustrative purposes. It is not included


  • Frequency Range 4.7-5.875 GHz
  • Gain 30 dBi typically
  • Dual Polarization Vertical and Horizontal
  • 3dB Beamwidth +/-2.5 deg


Specifications MTAD-5G-30D3-4STD

Beamwidth+/-2.5 deg
Connector2x RP-SMA Female (outside thread)
Cross Polarization>40 dB
Diameter x Depth70 x 45cm (27.5 x 17.8in)
Elevation adjustment range+/- 15 deg
Frequency Range4.7-5.875 GHz
Front-to-Back Ratio>30 dB
Impedance50 ohms
Operating Temperature-50°C to 80°C(-49°F to 158°F)
Outdoor RatingETSI EN 300 019-2-4
Packaged size73x73x20cm (29x29x8in)
Packaged weight8.4 kg (18,5)
PolarizationVertical and Horizontal
Pole Mount Diameter Range3 to 10cm (1.2 to 3.9in)
Port to Port Isolation>40dB min
Power Rating100W
StandardsEN 302 326 DN1, DN2, DN3, DN5
VSWR≤ 1.4 typ, ≤ 1.8 max
Weight5.7kg (12.6 lbs)
Wind Load (125 mph)181.4kg (400 lbs)
Wind Survivability201kph (125mph)
