MikroTik Small size powerful OEM board with one Gigabit LAN and one miniPCIe slot

(0) No Reviews yet
  • SKU: RBM11G
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Quick Guide: Download
  • Availability: 91 In Stock (updated live)
$39.00

Specifications RBM11G

Product code RBM11G
CPU MediaTek MT7621
CPU nominal frequency 880 MHz
CPU core count 2
Size of RAM 256 MB
Storage Flash, 16 MB
10/100/1000 Ethernet ports 1
MiniPCIe slots 1
SIM card slots 1
PoE in Yes
Supported input voltage 10 V - 30 V (Passive PoE and 802.3af/at with unshielded cable)
Dimensions 105 x 110 mm
Operating temperature -40°C .. +70°C tested
License level 4
Operating System RouterOS
Max Power consumption 11 W

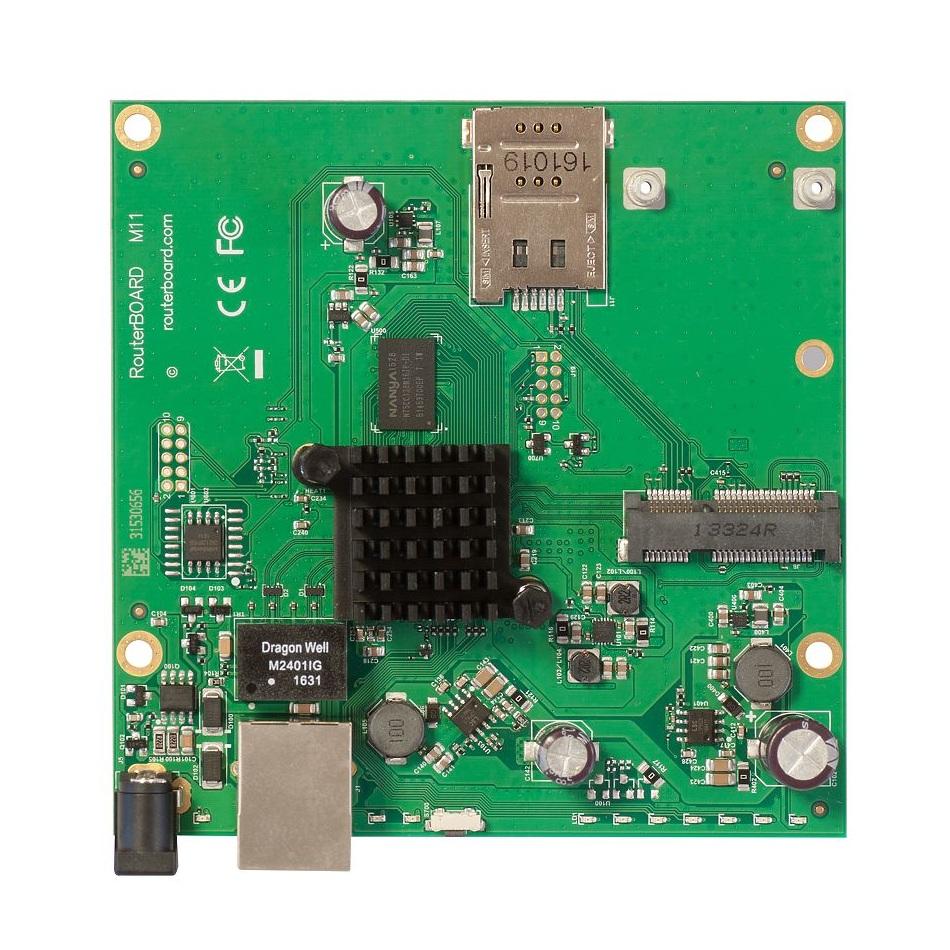

MikroTik RouterBOARD RBM11G

RouterBOARD M11G with Gigabit LAN and miniPCIe slot

The M11G is a fully featured RouterBOARD device perfect for using with your own enclosure or building a custom solution. It uses the same square PCB and mounting holes as RB411 or RB911/RB912 line. You can simply swap out the older models with the brand new M11G.

The M11G features a new MediaTek dual core CPU running at 880MHz, a miniPCIe slot for using with a WiFi module of your choice (up to two chains supported), or with a 3G/LTE modem (SIM slot provided). The device can be powered by PoE through it’s Gigabit Ethernet connector or through the DC power jack, and is equipped with RouterOS L4 license (AP support).
