Netonix Managed POE Switch, 24 1G Poe Copper Ports, 2 SFP Ports, 48V

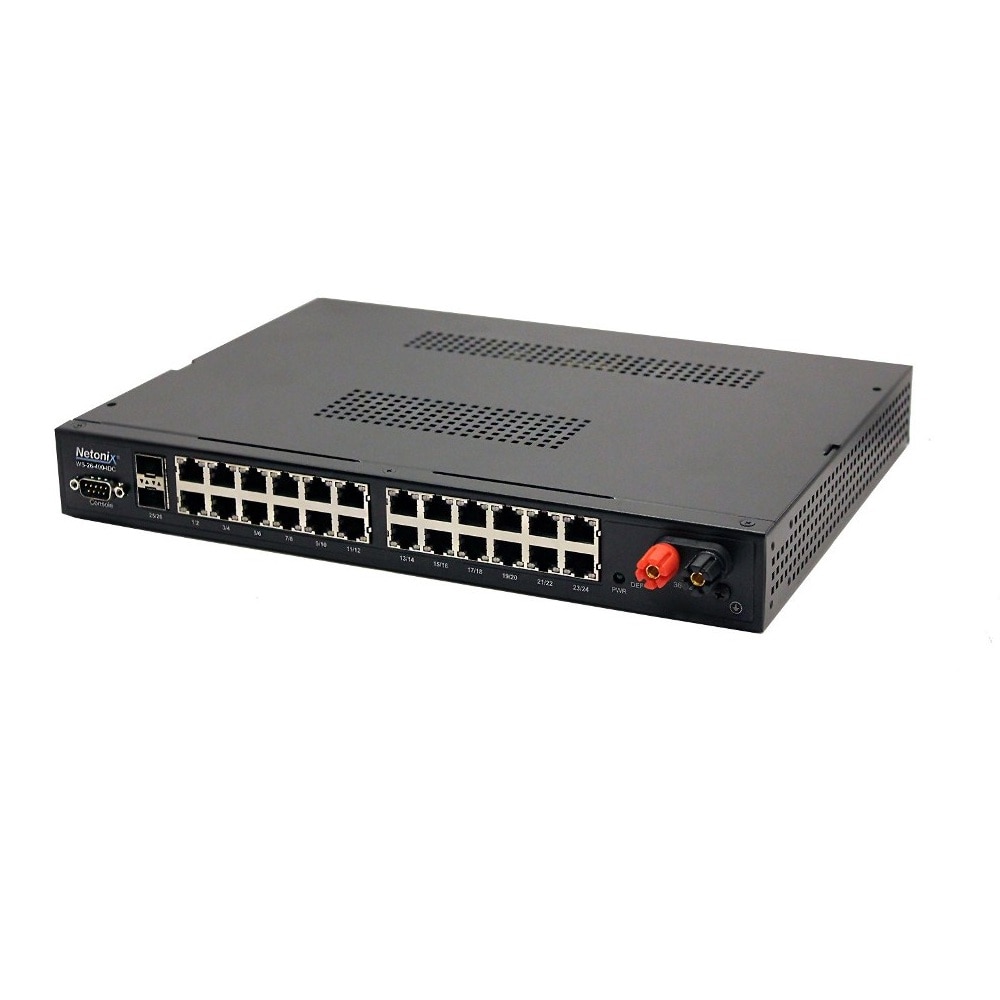

Netonix WS-26-400-IDC WISP Switch

Managed POE Switch

• (24) 1G POE Copper Ports
• (2) SFP Ports

400 Watt ISOLATED DC power supply accepts 32V to 72V DC variable input while providing uninterrupted 24V and 48V POE

• NOTE: Optional rack mount kit sold seperatly
• NOTE: This switches is designed to operate on negative or positive 48V sites.
• NOTE: Does not allow monitoring of DC input voltage

The Netonix® WISP Switch™ model WS-26-400-IDC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.

• Manufactured and Assembled in North America
• Standard Desktop / Wall mount

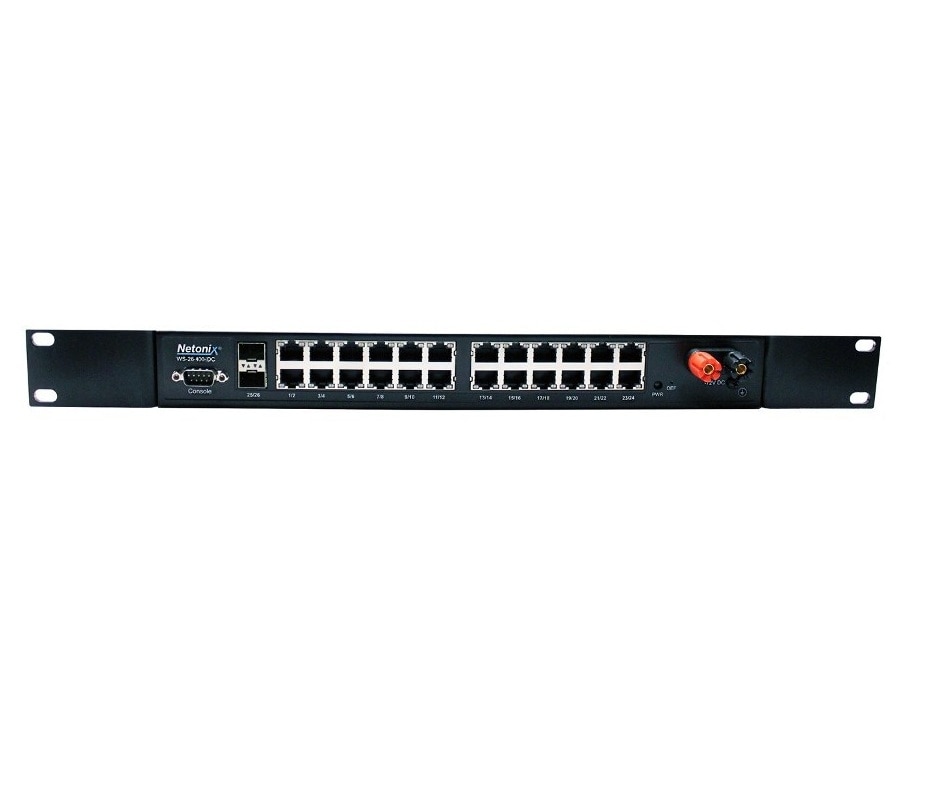

• Optional 19” rack mount kit / Din Rail kit
• Dimensions 343 mm x 248 mm x 44 mm
• Operating temperature -25 to 55°C
• Serial console port
• Passive PoE current sensors on each port

Configureable voltage / current

• Ports 01-24: 24V PoE Ports, Pins 4,5 (+), Pins 7,8 (-), .75A
• Ports 01-24: 48V PoE Ports, Pins 4,5 (+), Pins 7,8 (-), .75A
• Ports 01-02: 24V PoE Ports, Pins 1,2,4,5 (+), Pins 3,6,7,8 (-), 1.5A
• Ports 01-06: 48V PoE Ports, Pins 1,2,4,5 (+), Pins 3,6,7,8 (-), 1.5A
