TwistPort™ Adaptor for UBNT Rocket® Prism 5AC, airFiber® 5X, LTU-Rocket®, and LTU airFiber® 5XHD

(0)No Reviews yet
  • SKU: TPA-PAF
  • Manufacturer: RF Elements
  • Data Sheet: Download

Out of Stock

Product Information

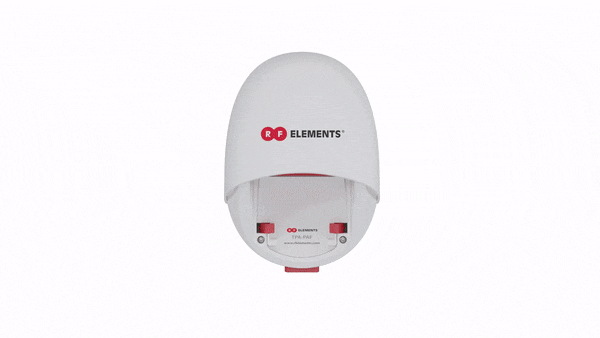

RF Elements TPA-PAF

TwistPort™ Adaptor for UBNT Rocket® Prism 5AC, airFiber® 5X,  LTU-Rocket®, and LTU airFiber® 5XHD

TwistPort Adaptor adapts 3rd party radios to RF elements® proprietary TwistPortTM waveguide connector. Integration of the radio is smooth and requires no tools. Making 3rd party radios compatible with TwistPortTM allows for using the radio with any TwistPortTM antenna ever made and enable superior performance, noise immunity and network scalability.

For UBNT Rocket® Prism 5AC, airFiber® 5X,  LTU-Rocket®, and LTU airFiber® 5XHD

This TP-A is also compatible with the newest Gen 2 of Rocket Prism 5AC and with the AF-5XHD airFiber® radios as well as the LTU Rocket and LTU airFiber 5XHD. Complete List of compatible radios includes: UBNTTM Rocket Prism 5AC, Rocket Prism 5AC Gen2, airFiber® 5X and airFiber 5XHD.

The migration path from Rocket Prism 5AC to airFiber 5X platform is smooth and effective, as no additional investment on TP-A is required.

GPS Antenna Integration

TP-A PAF contains well-protected space for GPS antenna that comes with UBNT® radios. After integration, GPS antenna and antenna cable are covered and well protected. No more issues with antenna attachment or with troubleshooting damaged GPS antennas.

Market Leading Performance

TwistPortTM Adaptors cover an ultra-wideband spectrum of 5180-6400 MHz and perform with superb efficiency with very well managed VSWR.


Easy Installation

Specifications

Specifications TPA-PAF

Antenna Connection TwistPort - Quick Locking Waveguide Port
Radio Connection 2x Slide-On RP-SMA and 1x RP-SMA for GPS
Materials Insert - Aluminium Alloy
Adaptor - UV stabilized and weather resistant ABS plastic
Flame Rating UL 94 HB
Temperature -40°C to +60°C (-40°F to +140°F)
Wind Survival 160 km/h
Weight 0.34 Kg / 0.75 lbs – single unit
0.52 Kg / 1.14 lbs – single unit incl. package
11.2 Kg / 24.7 lbs – carton (20 units)
PERFORMANCE
Frequency Range 5180 - 6400 MHz
Polarization Dual Linear H + V
VSWR Max 1.8
Impedance 50 Ohm
COMPATIBLE WIRELESS PLATFORMS
RF elements® any TwistPort™ Antenna
Ubiquiti Networks® Rocket® Prism 5AC, Rocket® Prism 5AC Gen2 airFiber® 5X, airFiber® 5X-HD
