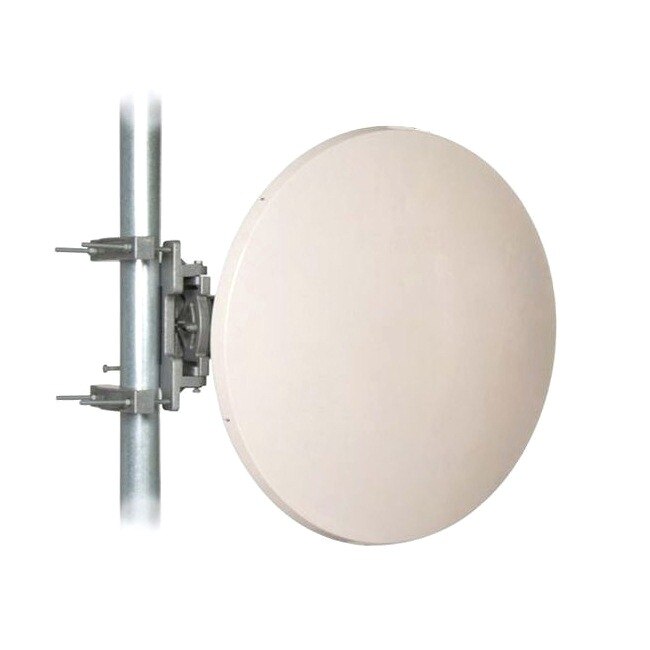

Siklu EtherHaul 2FT Antenna with Mounting Kit, with X Adaptor (VENT020)

(0)No Reviews yet
  • SKU: EH-ANT-2ft-B
US$‎1,007.00
  • Manufacturer: Siklu
  • Data Sheet: Download

Out of Stock

Direct Ship Item

Product Information

Siklu EH-ANT-2ft-B

2ft E-band Antenna for EtherHaul Radios with Mounting Kit, Supports 71-76 and 81-86GHz frequencies. Replaces EH-ANT-2FT-A

EtherHaul™ E-band ODUs support a variety of antennas depending on the intended application, from street level to roof top, from short to long reach. This document starts with the compatibility between ODUs and antennas, continues with the specifications and closes with the illustrations of the antennas.


EH-ANT-2FT-B - External 2FT antenna compatible with:

  • EH-1200FX
  • EH-1200TX
  • EH-2200FX
  • EH-2200TX
  • EH-2200-AES
  • EH-2500FX
  • EH-5500FD
  • EH-8010-AES
  • EH-8010

Specifications

Specifications EH-ANT-2ft-B

Frequency Range71 - 86 GHz
Regulatory Compliance:
ETSIEN 302 217-4-2 V1.5.1 Class 2
FCC47CFR101
Gain50dBi ± 2dB
3 dB Beam0.5°
PolarizationLinear Vertical/ Horizontal
Input Power10 W (Max.)
InterfaceCircular waveguide E-band
RadomeABS
Minimum Temperature-55°C (-67°F)
Maximum Temperature+71°C (159.8°F)
Ingress Protection (IP) RatingIP67
