Tachyon Networks Compact Ultra Low-Cost 60GHz Radio

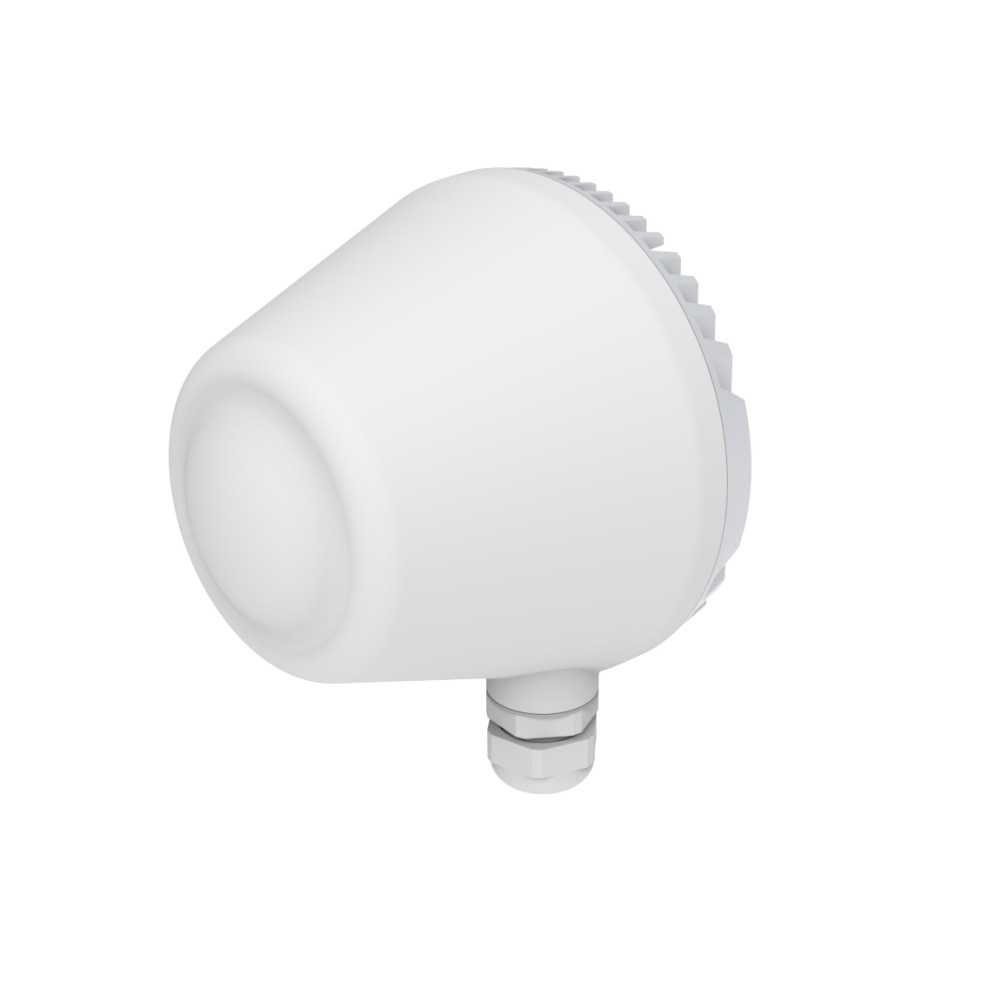

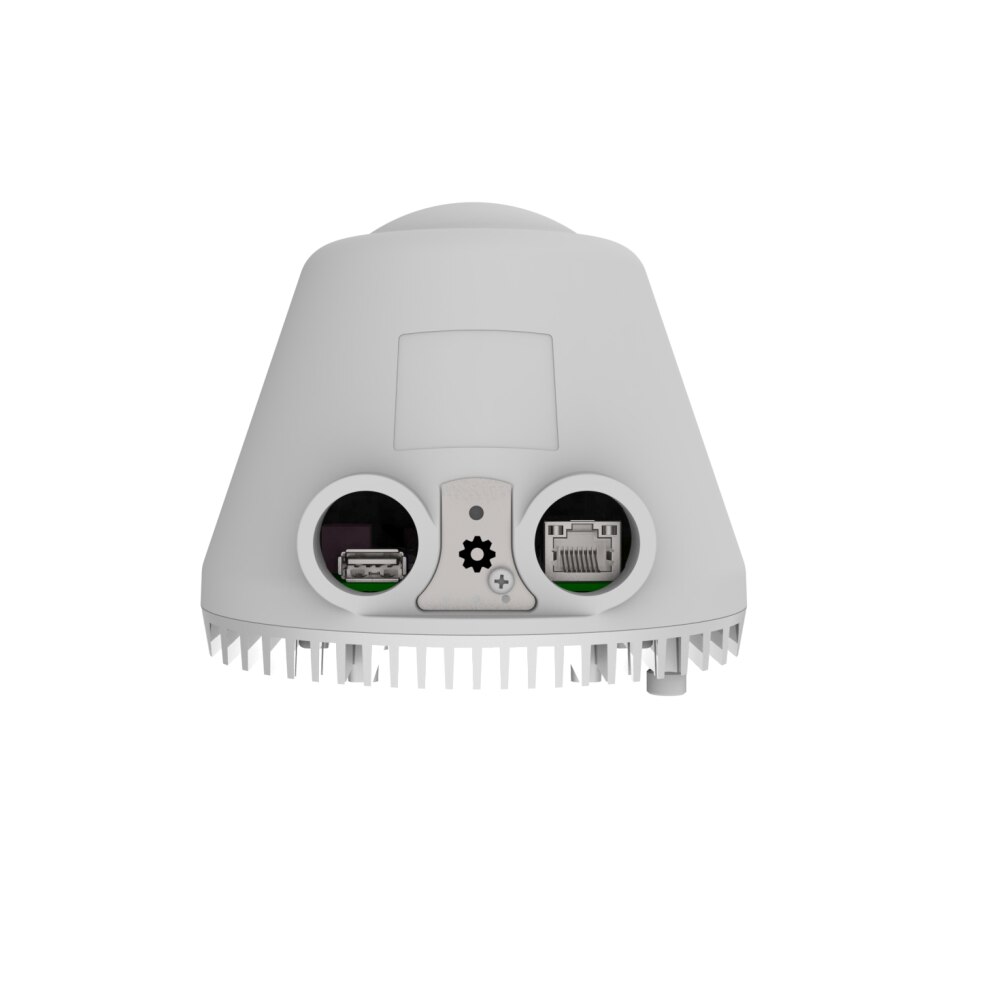

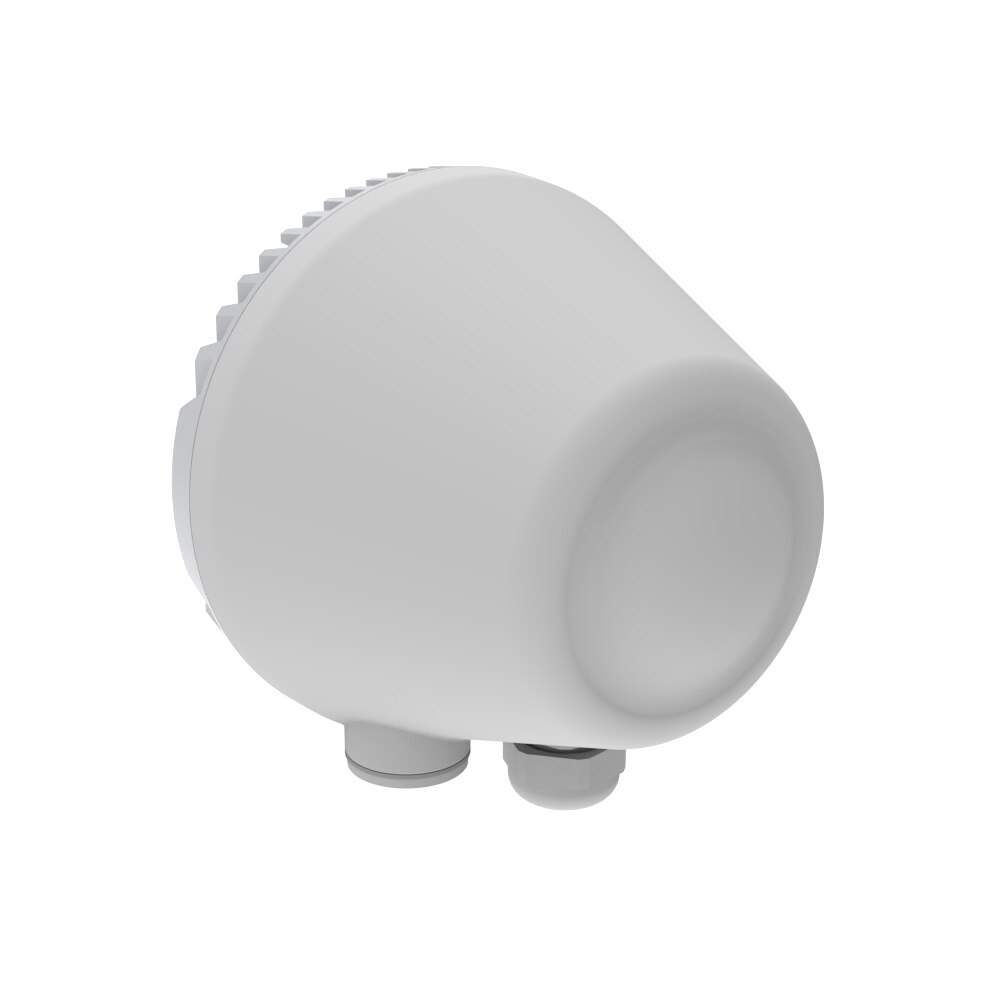

Tachyon Networks TNA-303L-65

Compact Ultra Low-Cost Outdoor 60 GHz PTP & PTMP Fixed Wireless Solutions

The TNA-303L-65 is the latest addition to Tachyon’s 60GHz lineup, offering full support for the unlicensed 60GHz band and seamless compatibility with existing TNA models. It delivers speeds up to 1 Gbps in an ultra-compact, cost-efficient form - making it the most affordable option in its class. An optional Wi-Fi radio dongle is available to simplify installation and alignment.

Applications:

Sub-7GHz offload

Because the sub-7GHz spectrum is scarce and prone to interference, the TNA-300 series models are perfect for offloading clients within range, leaving the low bands for hard-to-reach customers.

Deploying fiber-like service

The TNA-300 series product family can deliver multi-Gigabit speeds to up to 32 clients per sector at a fraction of the cost of deploying fiber.

High speed point-to-point

Use the TNA-300 series products to easily create point-topoint connections between buildings in urban environments.

High bandwidth video surveillance

The TNA-300 series units feature a proprietary TDMA scheduling protocol which is perfect for video surveillance networks requiring high-capacity upload bandwidth.

Features:

• Fiber-like speeds using the 60GHz band: 1 Gbps can be achieved and distances of up to 3+ km (PTP) and 2+ km (PTMP) without trenching, permits, or licenses.
• Upper-band support: All models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities.
• Ultra-compact design: The TNA-303L features an ultra-compact design which can blend into any surroundings and features extremely low wind loading.
• Best overall affordability: The low cost of the TNA-300 series product family, combined with high subscriber density and quick installation, greatly decreases total cost of ownership for service providers.
