  • Tycon Power Gigabit PoE Injector / Splitter 5-58VDC 130W 4 Pair

Tycon Power Gigabit PoE Injector / Splitter 5-58VDC 130W 4 Pair

(0) No Reviews yet
  • SKU: POE-INJ-1000-WTx
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$8.95

Specifications POE-INJ-1000-WTx

DC Input Voltage Range5 to 58VDC
Data Speeds 10/100/1000Mbps
Maximum PoE Current2.25A 130W Max
DC ConnectorRemoevable Wire Terminal Connector - Maximum Wire Size 14AWG
RJ45 PoE Pinout1,2,7,8(V+) 3,6,4,5(V-)
Operating Temperature-40°F to 185°F (-40 to 85°C)
Operating Humidity0 to 99% RH
Size2.8 x 2.1 x 0.95" (71 x 53 x 24mm)
Weight2.3oz (65g)

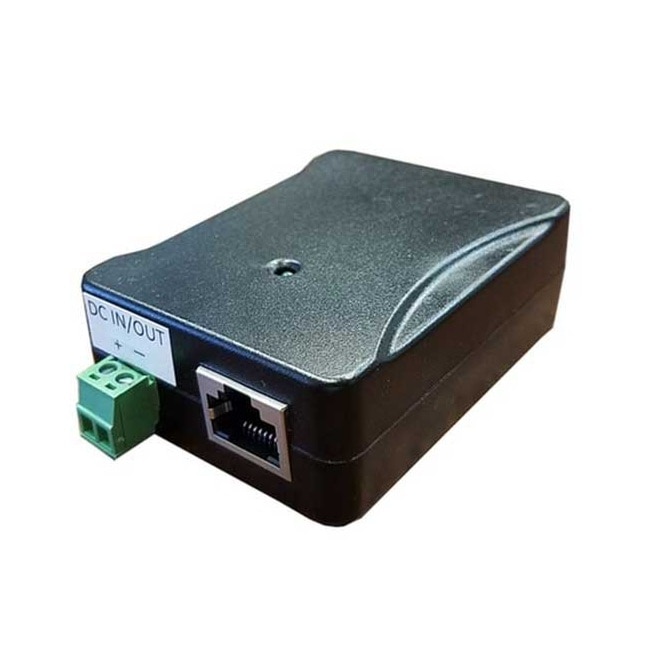

Tycon Power POE-INJ-1000-WTx

Gigabit PoE Injector / Splitter 5-58VDC 130W 4 Pair

Gigabit PoE Injector/Splitter with LED for power. Injects or splits DC power on all 8 wires. 1278(-) 3645(+) Wire terminal connector. Black Color. 2.25A.

The POE-INJ-1000-WTx is a shielded passive PoE inserter / splitter that are compatible with data speed up to 1 Gigabit. The DC connector is a removable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair), allowing for transport of up to 130W over a single CAT5/6 wire up to 100m.

Features:

  • High Power Shielded Design (uses all 4 pairs)
  • 10/100/1000Mbps Compatible
  • Removable Wire Terminal Connector
  • 5 to 58VDC Power Over Ethernet
  • Power On LED Indicator

Applications:

  • Wireless Equipment
  • Ubiquiti airFiber Antennas
  • Security Applications
  • HD PTZ Cameras
