Tycon Power 10-15VDC In 56VDC Out, 35W DC to DC Converter

(0)No Reviews yet
US$‎75.95 US$‎79.95
  • SKU: TP-DCDC-1248GD-HP
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
1033 in stock
College Station
1 In stock
Utah
1032 In stock

Product Information

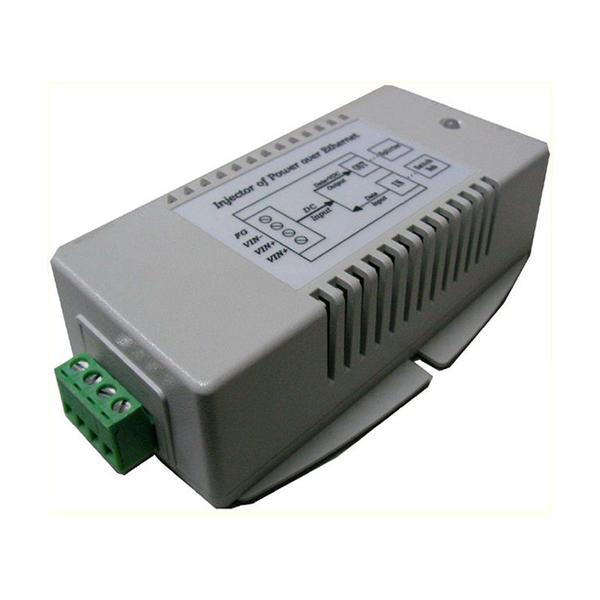

Tycon Power TP-DCDC-1248GD-HP

High Power Gigabit DC to DC Converter / POE Inserter

DC Input Voltage: 10VDC - 15VDC
DC Output Voltage: 56V (802.3af/at)
Output Current (max): 0.625A
Output Power (max): 35W

The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC-56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 35W.

Specifications

Specifications TP-DCDC-1248GD-HP

DC Input Voltage10VDC – 15VDC
DC Input ConnectorRemoveable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage56V (802.3af/at)
Data in & Data/POE Output ConnectorRJ45 (Shielded)
Output Current (max)0.625A
Output Power (max)35W
Self Consumption Power1W
Efficiency (min)75%
Line Regulation1%
