Tycon Power 56V 100W High Power Gigabit Passive POE
- SKU: TP-POE-HP-56G
$168.10 $176.95
Product Information

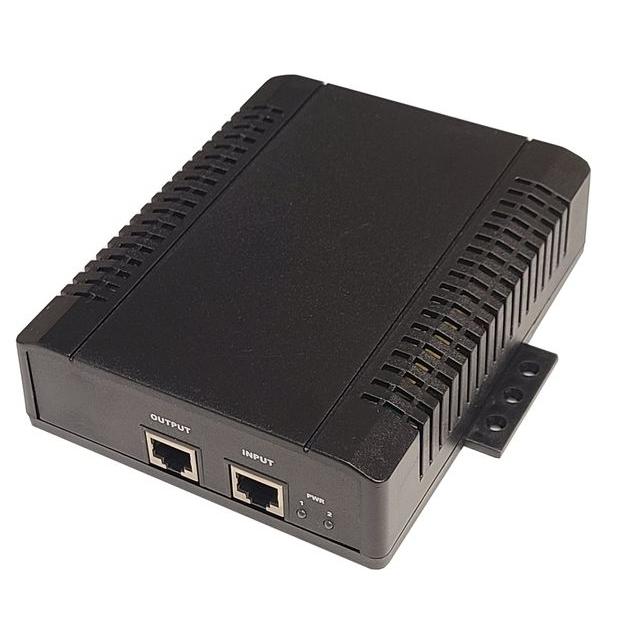

Tycon Power TP-POE-HP-56G
High Power Gigabit POE Injectors
The TP-POE-HP-56G Power over Ethernet Power Source offered by Tycon Power is a quality 5 Gigabit midspan power source for years of reliable operation even in the toughest conditions. It accepts data into a shielded RJ45 Jack and provides surge-protected data out and power on the RJ45 output jack. It works by supplying power to the remote device on all 8 Ethernet wires. The Ethernet spec supports distances up to 100m (328 feet).
The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. They have total power output up to 112W.
Features:
- 112W Power
- Remotely Power Equipment thru CAT5 Cable up to 100m
- Built in Ethernet and AC Surge Protection
- Autoranging Switching Power Supply
- Short Circuit, Over Current and Over Voltage Protection
- 10/100/1000/5000Mb Compatible
- High Temperature Industrial Operation
- Compact size – Floor / Desktop / Wall Mount
Applications:
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
Specifications
Specifications TP-POE-HP-56G
| AC Input | 100-240VAC +/-10% 47-63Hz |
| POE Output | 56VDC 2A 112W on all 8 wires |
| Data Rate | 5Gbps using CAT6A or better Ethernet Cable |
| POE Type | Passive |
| Max Inrush Current (120VAC) | 25A |
| Efficiency (min) | 0.9 |
| Line / Load Regulation | 1% / 5% |
| Ripple / Noise | 1% / 2% |
| Protections | Over-Voltage (58-60V) , Short Circuit, Over-Current (120-150%) |
| Surge Protection (+/- 4KV) ( IEC 61000-4-2 ) | Ethernet: 4 Pin (1/2,3/6) Common Mode Protection, 7.5V Clamping Voltage 5.4A (8/20µs) Peak Pulse Current, <2pF Shunt Capacitance AC Input: Operating voltage = 385VDC, Clamping voltage = 775VDC, Maximum discharge current is 1200A(8/20us) |
| LED Function | Two green LED: LED #1 = PoE power on pins 4,5,7,8 ; LED #2 = PoE power on pins 1,2,3,6 |
| Certifications | FCC, CE |
| EMC Standards | FCC Class A EN55032 Class A |
| Safety Standards | UL/TUV EN62368-1 |
| Environmental Standards | RoHs |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operating Humidity (RH) | 5% - 90% |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Case Size | 116 x 150 x 41mm (4.6x5.9x1.6”) |
| Weight | 454g (16oz) |
| Warranty | 3 Years |
