Ubiquiti Horn-5-90 (PrismAP-5-90) 5GHz 90° Isolation Horn Antenna

(0)No Reviews yet
  • SKU: HORN-5-90
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Installation Guide:Download
7 in stock
College Station
4 In stock
Mississippi
3 In stock

Product Information

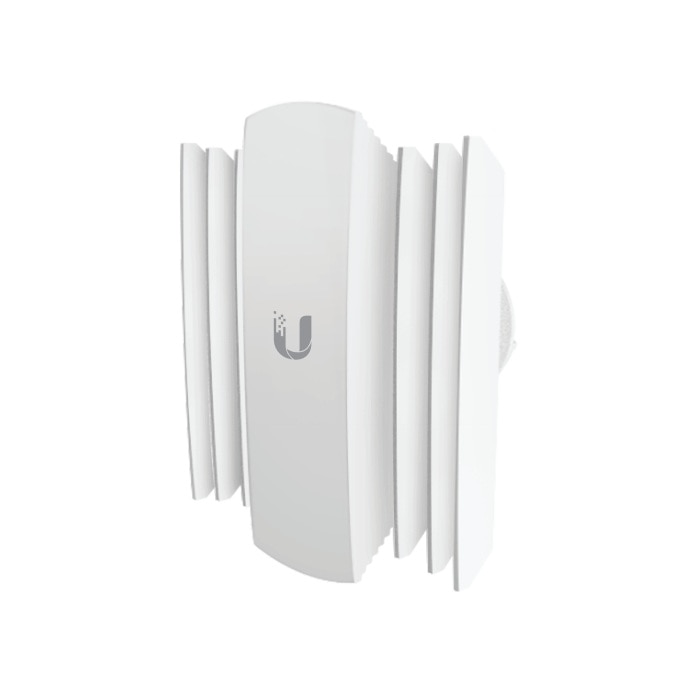

Ubiquiti Horn-5-90 (PrismAP-5-90)

HORN-5-90 5GHz 90° Isolation Antenna Horn

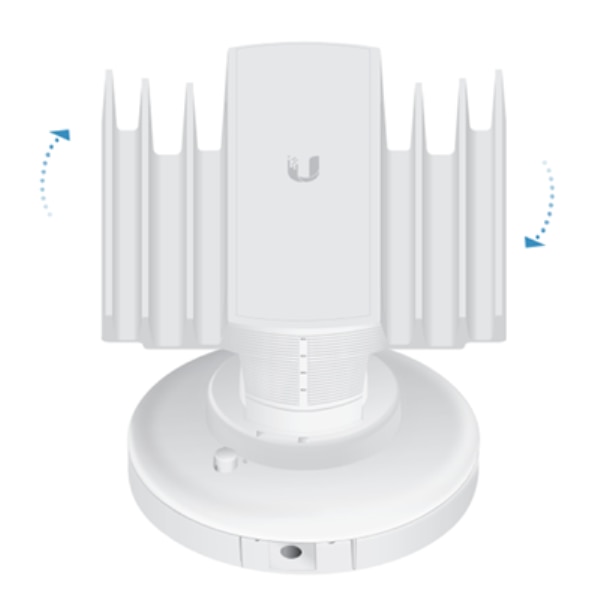

The Ubiquiti Horn-5-90 is a 5GHz 13dBi Sector Antenna designed to seamlessly integrate with PrismStation 5AC access points (PrismStation sold separately), offering precise radiation angles for specific beam shaping so you can customize the IsoStation for your specific installation requirements. This versatile combination gives network architects unparalleled flexibility and convenience.

Modular design

With flexible sectorisation for optional antenna beam-widths, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environment needs. Ubiquiti PrismStations uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the PrismStation 5AC is versatile and cost-effective to deploy.

Enhanced co-location

Sector horn antennas have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Sector Horn Antennas are ideal for cluster sector installations with high co-location requirements.


Features:

  • Sector horn antenna designed for increased co-location performance.
  • Single button release designed for ease of changing antennas.
  • Newly designed horn for improved beam shaping suitable for a wide range of installations.
  • Naturally attenuated side lobes and low back radiation.
  • Ideal for cluster sector installations with high co-location requirements.

Specifications

Specifications Horn-5-90

Dimensions 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46")
Weight 920 g (32.45 oz)
Supported Frequency Range 5.15 - 5.85 GHz
Gain 13 dBi
HPOL Beamwidth 90°
VPOL Beamwidth 90°
Elevation Beamwidth 45°
Maximum VSWR 2:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 46 N @ 200 km/h (10.3 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
