  • Ubiquiti airMax NanoBeam 2AC, 13 dBi MIMO antenna

Ubiquiti airMax NanoBeam 2AC, 13 dBi MIMO antenna

(0) No Reviews yet
  • SKU: NBE-2AC-13-US
  • Manufacturer: Ubiquiti Networks
  • User Guide: Download
  • Quick Start Guide: Download
  • Availability: 22 In Stock (updated live)
$99.00

Specifications NBE-2AC-13-US

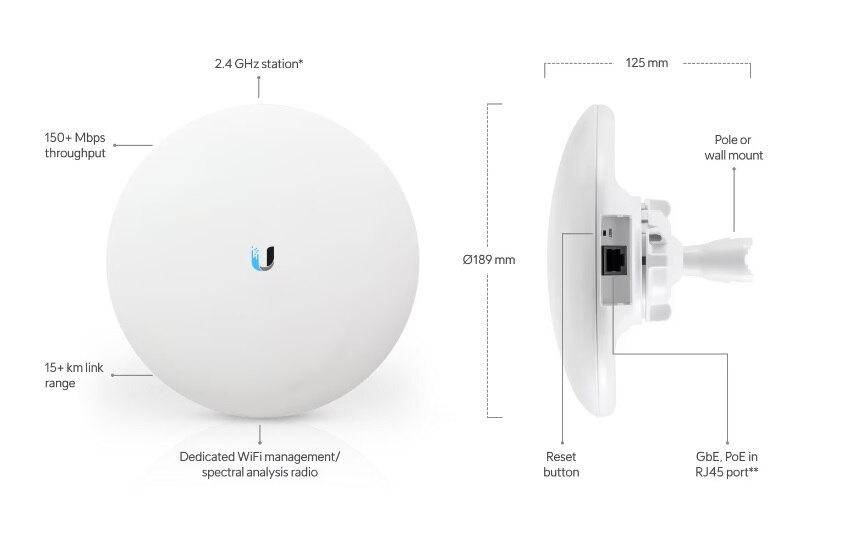

Dimensions (Mount Included) 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight (Mount Included) 530 g (1.17 lb)
Gain 13 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 7.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Loading 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Mounting Pole-Mount (Kit Included) Wall-Mount (Not Included) Window-Mount (Not Included)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 80° C (-40 to 176° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC

Ubiquiti NBE-2AC-13-US

Ubiquiti airMax NanoBeam 2AC, 13 dBi MIMO antenna

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Innovative Mechanical Design

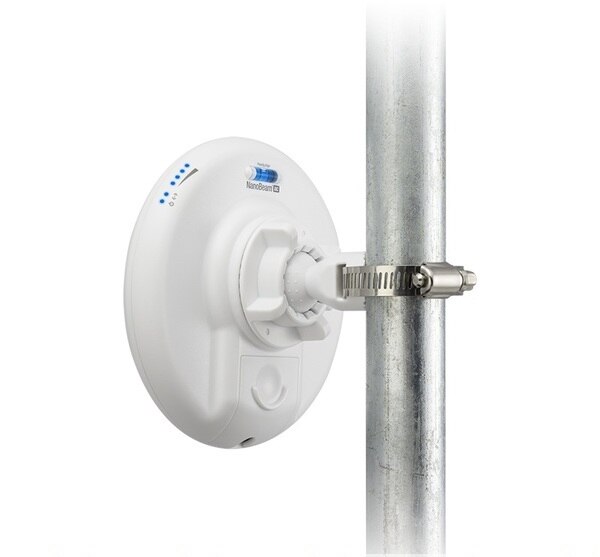

  • Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
  • Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.
  • Easy removal The antenna feed can be detached with the push of a button.

Corrosion Resistance

Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.
