Ubiquiti EdgePower Supply 54V 72W

  • SKU: EP-54V-72W
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Start Guide: Download
  • Availability: 6 In Stock    (updated live)
$‎159.00

Specifications EP-54V-72W

Dimensions 115 x 192 x 43.7 mm (4.53 x 7.56 x 1.72")
Weight 650 g (1.43 lb)
Interfaces
Networking 2) 10/100 Mbps RJ45 Ports
Management Ethernet In-Band
PoE Output (2) 54VDC Passive PoE (Pins 4, 5+; 7, 8-)
DC Output 54V, 1.3A
Power Method
AC Input 100-240VAC, 50-60 Hz, Universal Input
Battery Input DC Terminal Block
Power Supply
AC Input AC/DC 72W
Battery Input 12VDC Lead Acid Battery*
Max. Power Consumption
System 2W
Output 72W
LEDs
System Status
RJ45 Data Ports PoE; Link/Activity
ESD/EMP Protection Air: ± 12 kV, Contact: ± 12 kV
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC

Ubiquiti Networks EP-54V-72W

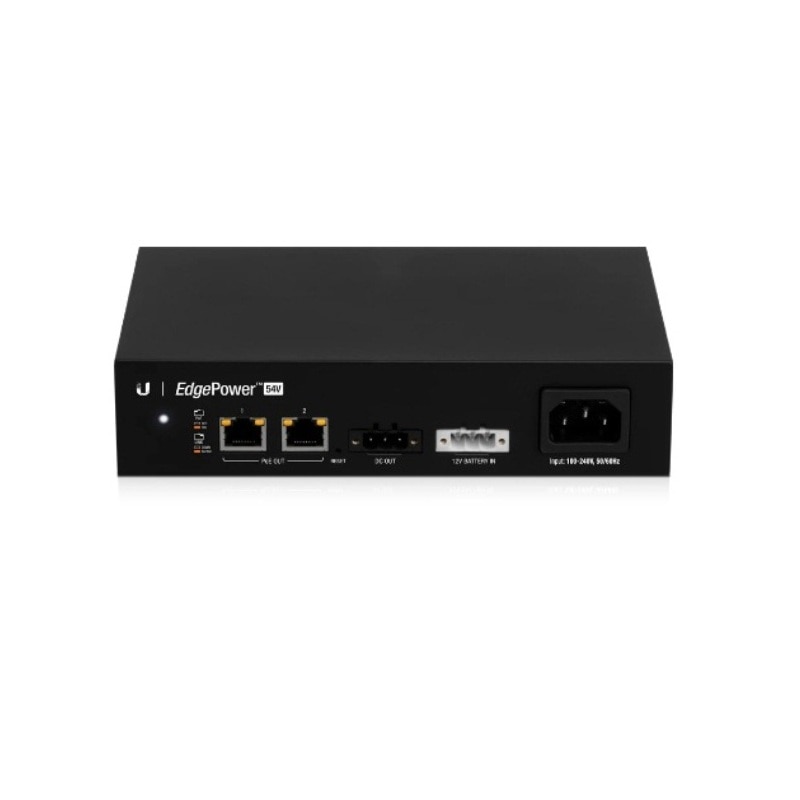

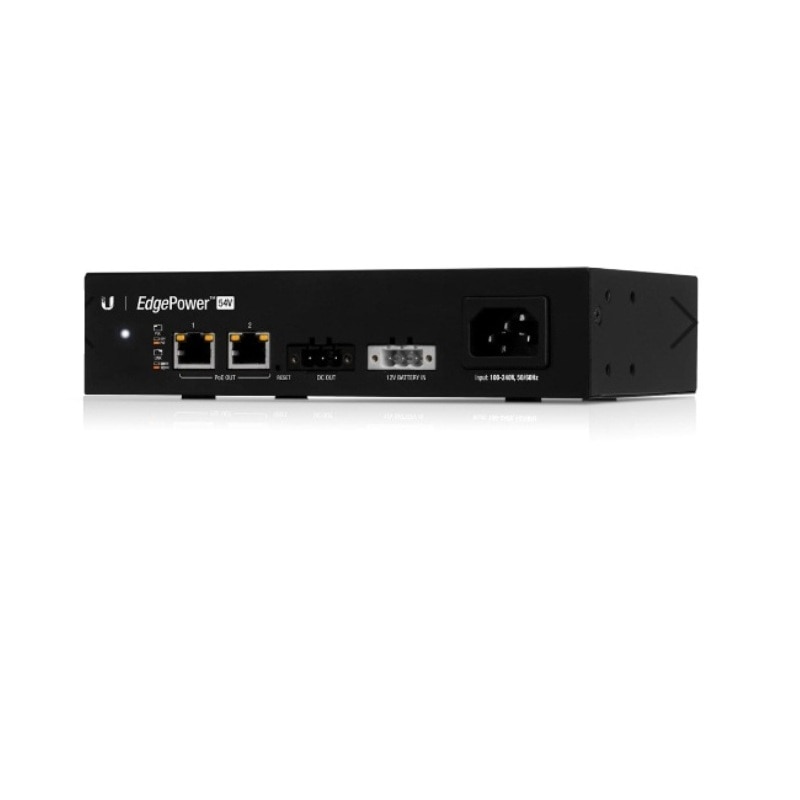

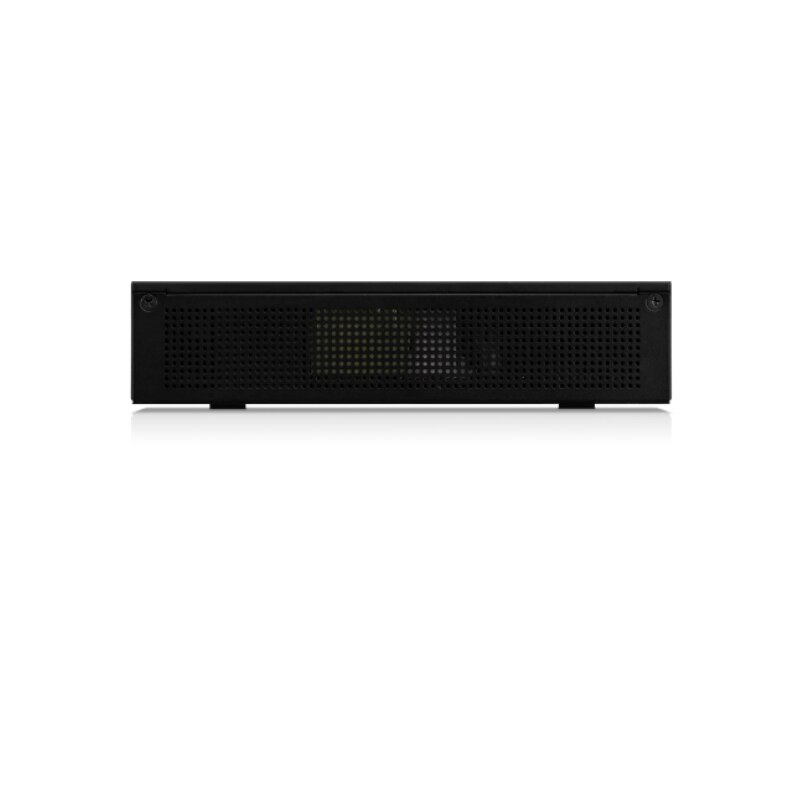

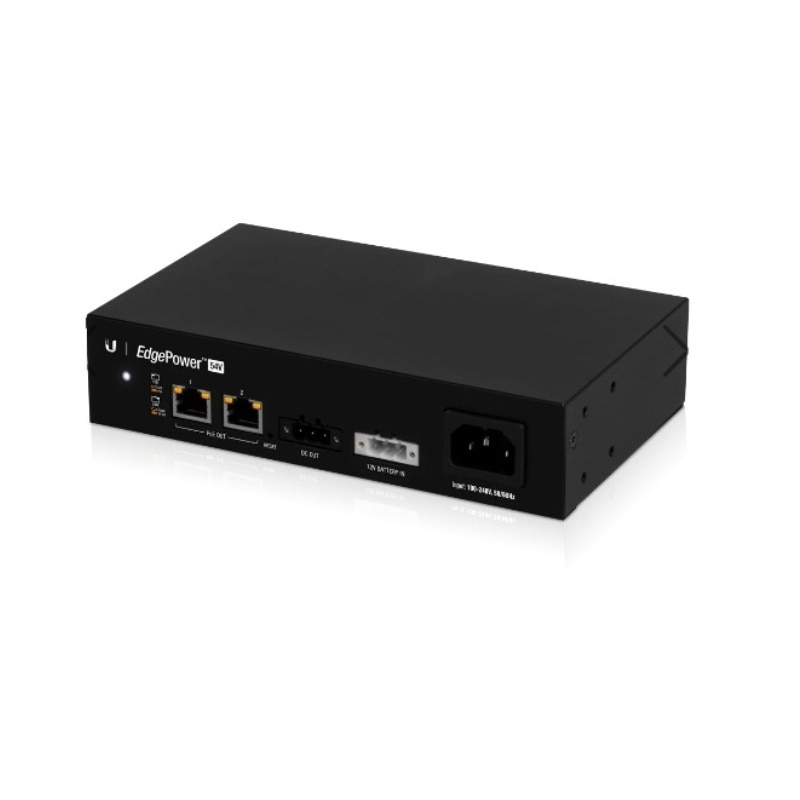

Ubiquiti EdgePower Supply 54V 72W

The EdgePower 54V 72W is a UNMS monitored and managed 54V DC power supply with integrated battery backup. This product provides WISPs with an easy-to-install 54V redundant power supply that includes a management user interface, SNMP, and simple 12V battery backup charger with multiple 54V outputs for small sites.


Features:

  • 100-240VAC, 50-60 Hz, Universal Input
  • 54V DC Output (terminal connector with dual DC barrel jack included)
  • 12V Lead Acid Battery Input*
  • Two, 10/100 Ethernet, 54V Passive PoE output, switch-ports
  • Note: *12V Battery not included
