Ubiquiti UniFi 6 Long-Range Access Point (US Version)

  • SKU: U6-LR-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
US$‎179.00

Specifications U6-LR-US

MECHANICAL
DimensionsØ220 x 48 mm (Ø8.66 x 1.89")
WeightWithout Mount: 800 g (1.76 lb) With Mount: 930 g (2.05 lb)
Enclosure MaterialPlastic
Mounting MaterialSGCC Steel
WeatherproofingIP54
HARDWARE
Processor SpecsDual-Core® Cortex® A53 at 1.35 GHz
Memory Information512 MB
Management InterfaceEthernet In-Band
Networking Interface(1) 1 Gbps Ethernet RJ45
Buttons FactoryReset
LEDsRGB
Power Method802.3at PoE, Passive PoE (48V)
Power Supply802.3at PoE; 48V, 0.65A PoE Adapter (Not Included)
Supported Voltage Range44 to 57VDC
Max. Power Consumption16.5W
Max. TX Power 2.4 GHz 5 GHz 26 dBm 26 dBm
MIMO 2.4 GHz 5 GHz 4 x 4 4 x 4
Throughput Speeds 2.4 GHz 5 GHz 600 Mbps 2400 Mbps
Antenna Gain 2.4 GHz 5 GHz 4 dBi 5.5 dBi

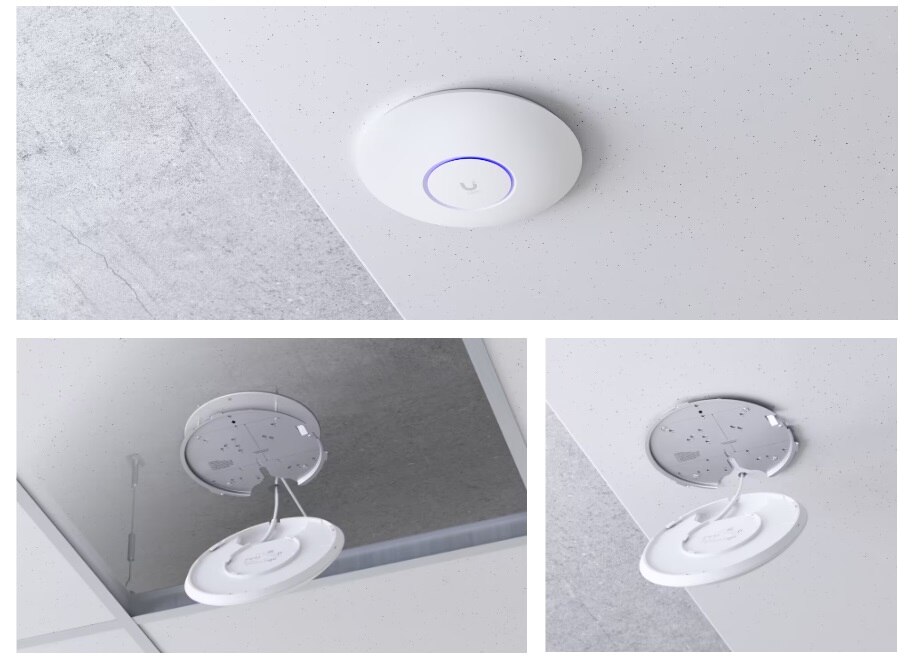

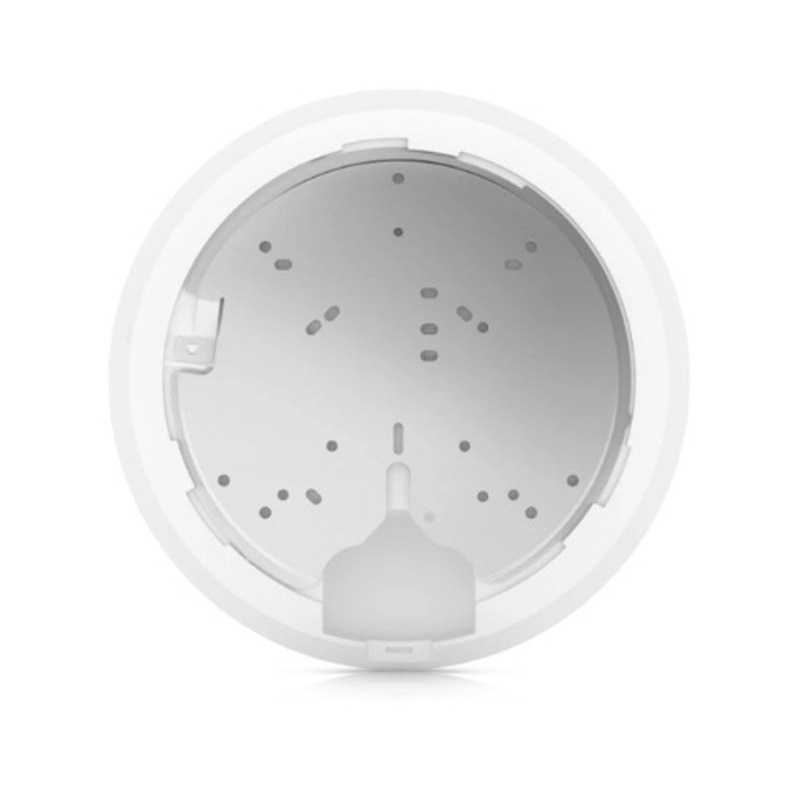

MountingWall/Ceiling (Kits Included)
Operating Temperature-30 to 60° C (-22 to 140° F)
Operating Humidity5 - 95% Noncondensing
CertificationsCE, FCC, IC
SOFTWARE
Wi-Fi Standards802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions
BSSID8 per Radio
VLAN802.1Q
Advanced QoSPer-User Rate Limiting
Guest Trafc IsolationSupported
Concurrent Clients300+
SUPPORTED DATA RATES (MBPS)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (Wi-Fi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Ubiquiti Networks U6-LR-US

UniFi 6 Long-Range Access Point (US Version)

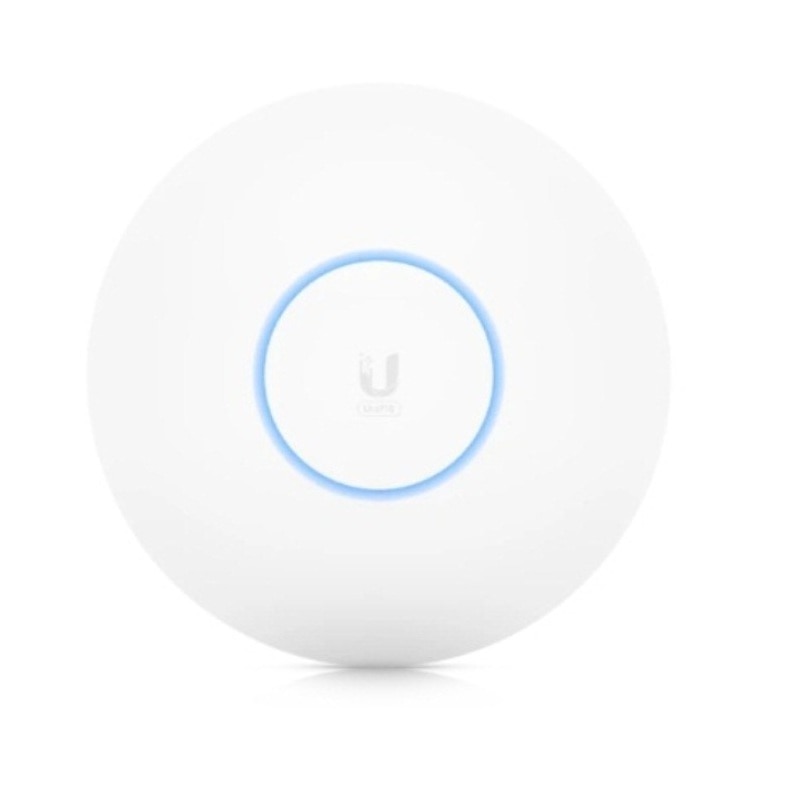

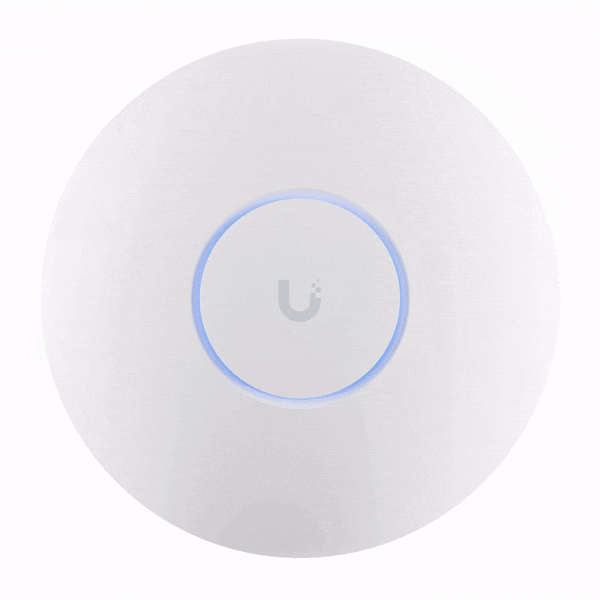

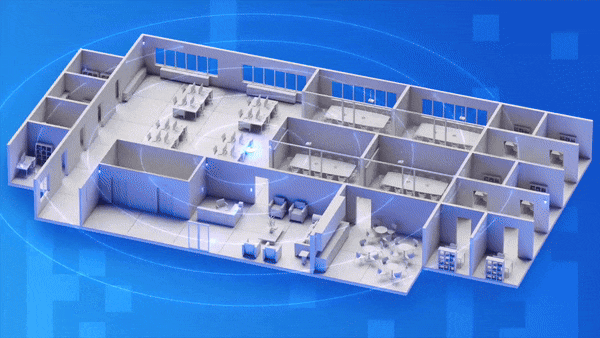

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.

It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).


Features:

  • 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
  • Four-stream high-efficiency Wi-Fi 6 technology
  • 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
  • 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps

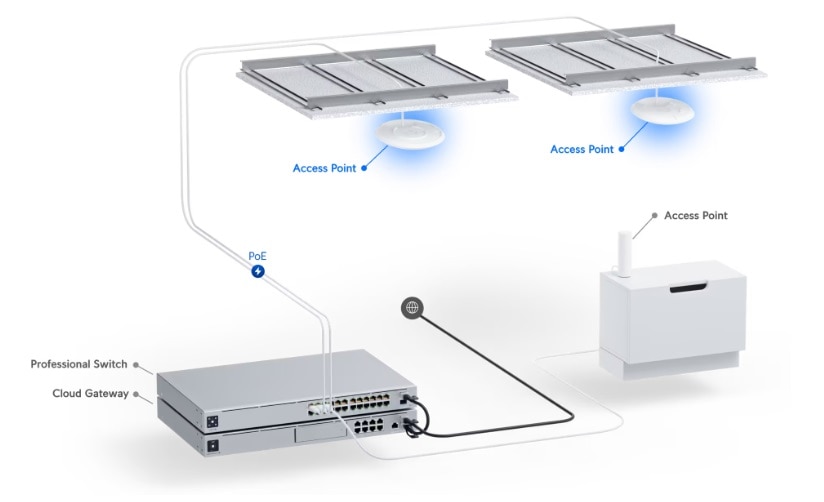

  • Powered with 802.3at PoE (PoE injector not included)

Managed by UniFi Network Controller version: 6.0.34 or higher

Works with UniFi Network Controller :

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support
