Ubiquiti Networks UniFi Express
- SKU: UX-US
$149.00
Product Information
Ubiquiti Networks UniFi Express

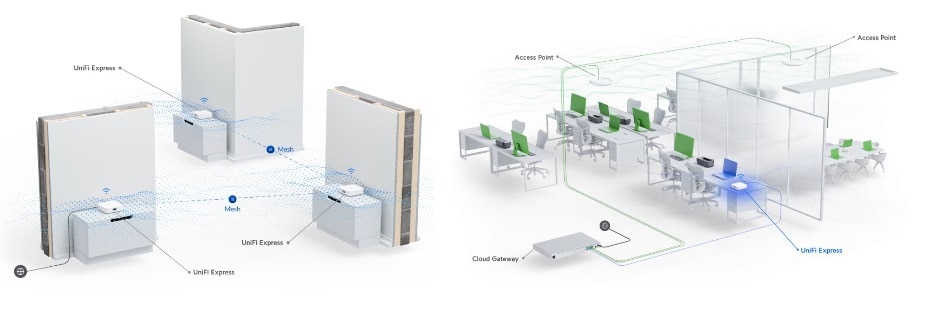

Impressively compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.
Features:
- Built-in WiFi 6 AP
- 140 m² (1,500 ft²) single-unit coverage
- 60+ connected WiFi devices
- (1) GbE RJ45 WAN port
- (1) GbE RJ45 LAN port to extend network
- 0.96" LCM status display
- Manages up to four additional UniFi Network devices when operated as a gateway
- Managed with UniFi Network 8.0.7 and later
Specifications
Specifications UX-US

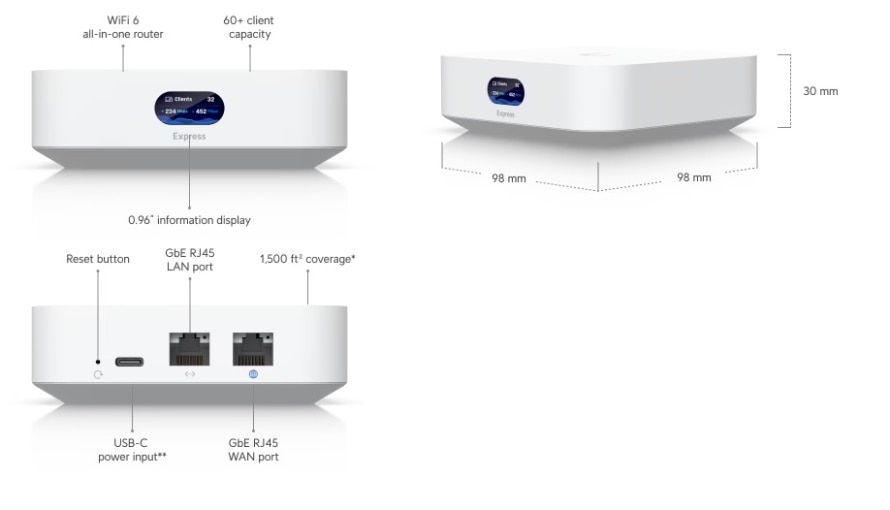

| Dimensions | 98 x 98 x 30 mm (3.6 x 3.6 x 1.2") |
| Weight | 302 g (10.7 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Networking interface | (1) GbE RJ45 WAN port (1) GbE RJ45 LAN port |
| Management interface | Ethernet Bluetooth |
| Power method | USB type C (5V DC/3A) |
| Max. power consumption | 10W |
| Max. WiFi TX power 2.4 GHz 5 GHz | 22 dBm 25 dBm |
| MIMO 2.4 GHz 5 GHz | 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz | 573.5 Mbps 2.4 Gbps |
| Antenna gain 2.4 GHz 5 GHz | 4 dBi 5.15 dBi |
| Antennas | (2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna |
| LCM display | 0.96" status display |
| Button | Factory reset |
| Operating temperature | -10 to 45° C (14 to 113° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | Console mode: 3 per band Standard AP: 8 per band |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 60+ |
| Zero wait DFS | Yes |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 8.0.7 and later |
