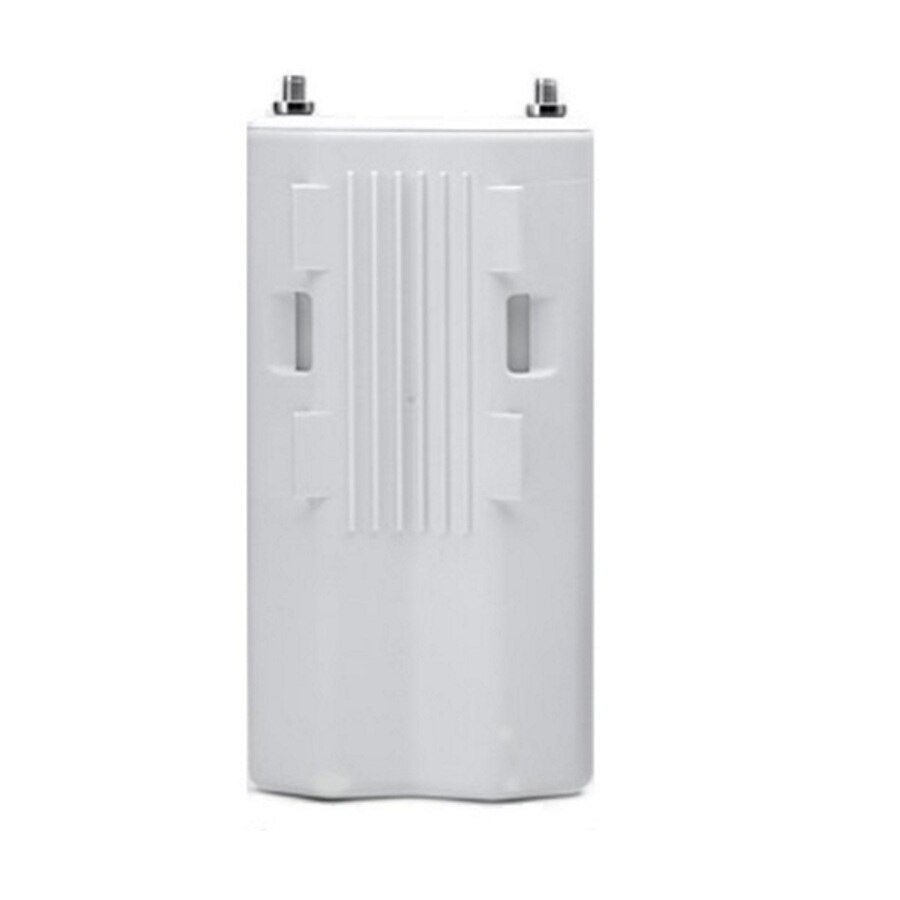

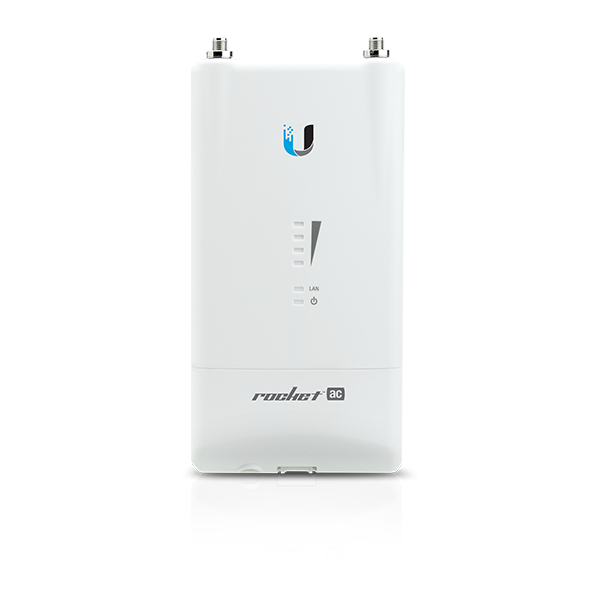

Ubiquiti Rocket 5 airMax 5GHz ac BaseStation

(0)No Reviews yet
  • SKU: R5AC-Lite-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Start Guide:Download
46 in stock
College Station
11 In stock
35 In stock

Product Information

Ubiquiti Networks R5AC-Lite-US (US Version)

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Plug and Play Integration

The innovative airMAX® ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks.

Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.


R5AC-Lite Specifications

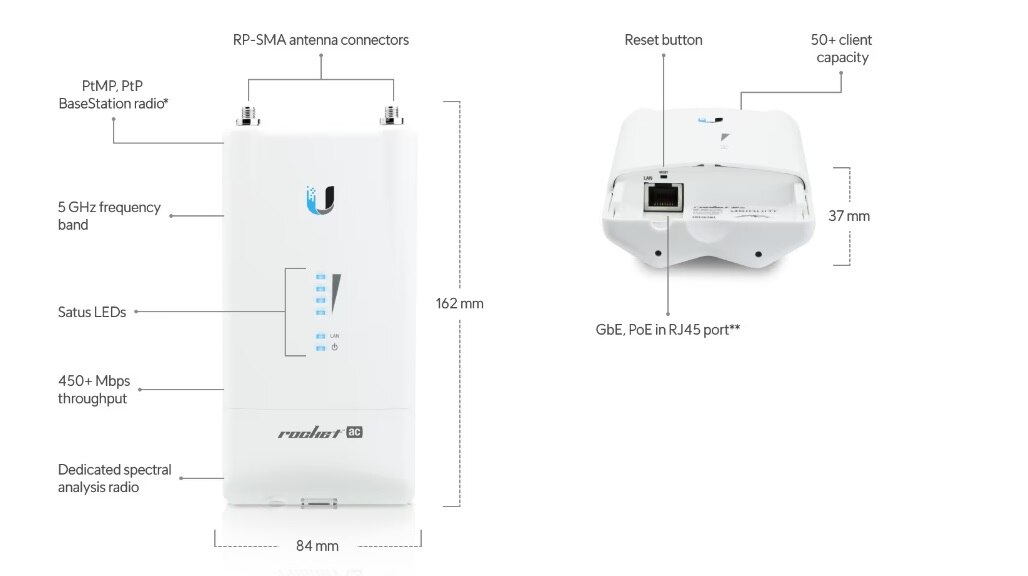

Dimensions162 x 84 x 37 mm (6.38 x 3.31 x 1.46”)
Weight250 g (8.81 oz)
Power Supply24V, 0.5A Gigabit PoE Adapter
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption8.5W
ProcessorAtheros MIPS 74Kc, 720 MHz
Networking Interface(1) 10/100/1000 Mbps
RF Connections(2) RP-SMA (Waterproof )
LEDsPower, LAN, (4) Signal Strength
Channel Sizes10/20/30/40/50/60/80 MHz,10/20/30/40 MHz
Enclosure CharacteristicsOutdoor UV Stabilized Plastic
Supported Voltage Range20-26VDC
ESD/EMP Protection± 24KV Air / Contact
Operating Temperature-40 to 80° C (-40 to 176° F)
Operating Humidity5 to 95% Noncondensing
Shock and VibrationETSI300-019-1.4
Wireless ApprovalsFCC, IC, CE
RoHS ComplianceYes
ModesAccess Point, Station
ServicesWeb Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
UtilitiesAntenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Distance AdjustmentDynamic Ack and Ackless Mode
Power AdjustmentSoftware Adjustable UI or CL
SecurityWPA2 AES Only
QoSSupports Packet Level Classification WMM and User Customer Level: High/Medium/Low
Statistical ReportingUp Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
OtherRemote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM
Ubiquiti Specific Features30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
