MikroTik MTAS-5G-15D120 mANT 15s Sector Antenna
US$57.23 US$59.00
- SKU: MTAS-5G-15D120
- Manufacturer: MikroTik
- Data Sheet / Spec Sheet: Download
Product Information
MikroTik RouterBOARD MTAS-5G-15D120
MikroTik 5GHz 15dBi mANT15s Dual-Pol Sector Antenna (2 x RP-SMA connectors)
with two RP-SMA Connectors
The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

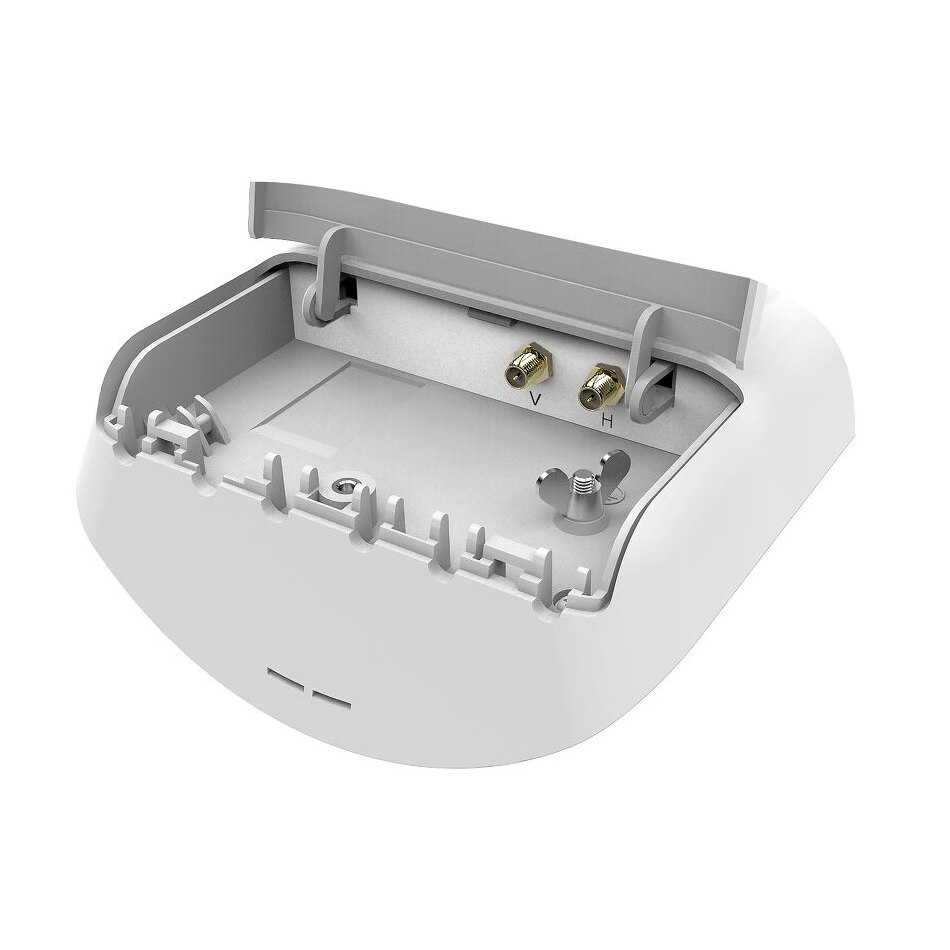

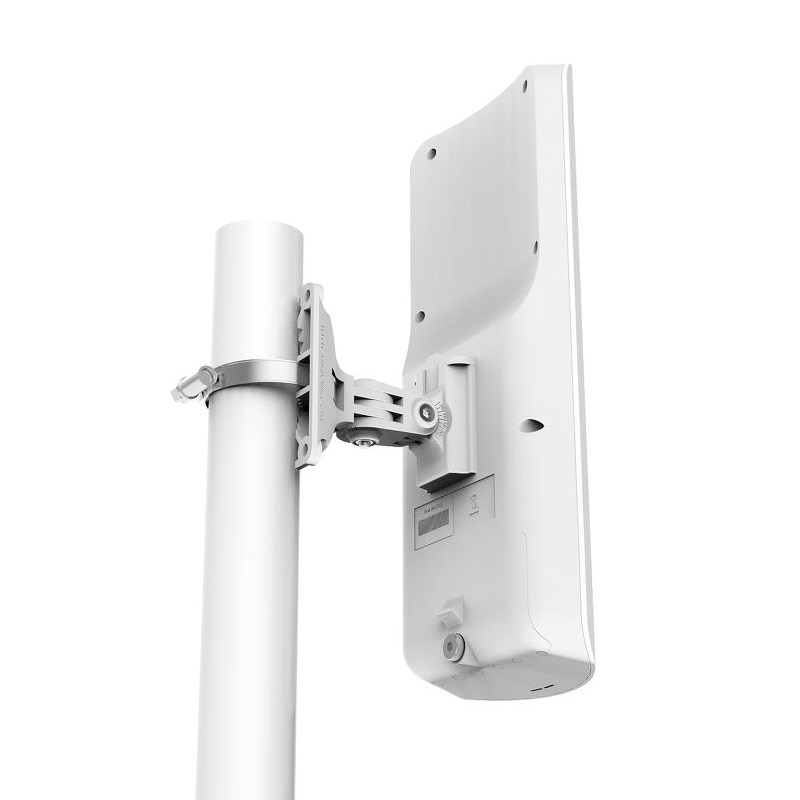

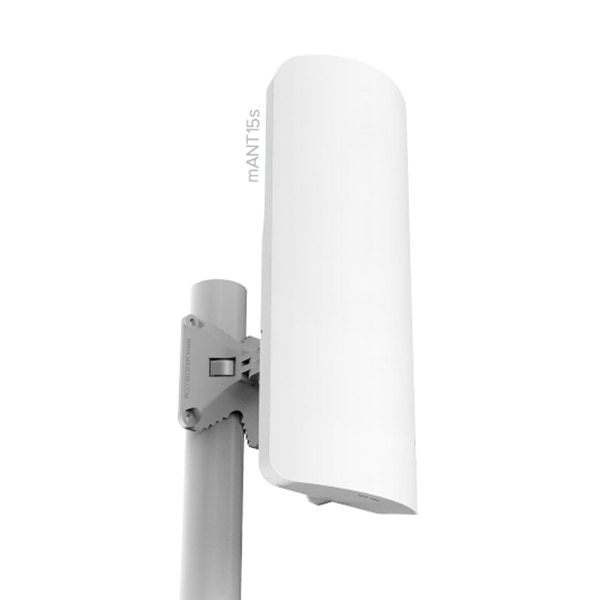

The mANT is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.
Specifications
Specifications MTAS-5G-15D120
| Antenna gain | 15dBi |

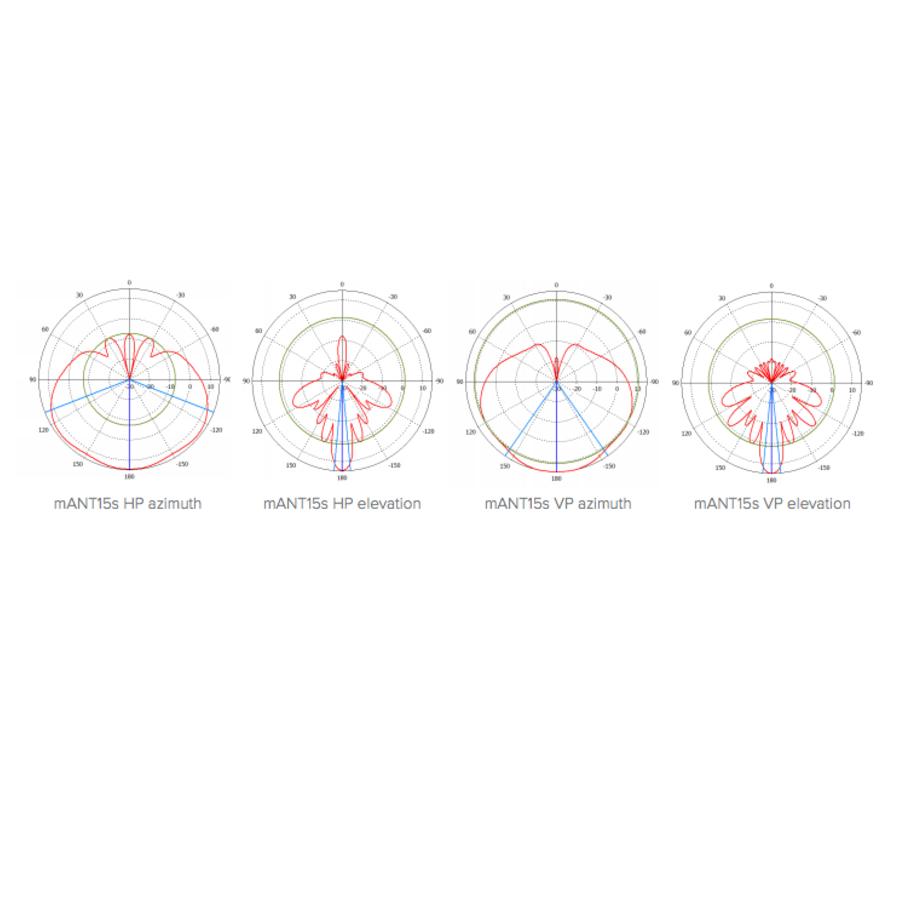

| Beamwidth | 120 deg (azimuth) 10 deg (elevation) |
| Connector | two RP-SMA |
| Cross Polarization | >30 dB |
| Diameter x Depth | 140 x 348 x 82 mm |
| Frequency Range | 5.17 - 5.825 GHz |
| Front-to-Back Ratio | >30 dB |
| Polarization | Vertical and horizontal |
| Port to Port Isolation | >40 dB min |
| VSWR | 1.43 typ, 1.8 max |
| Weight | 734 g |
