Cambium 5 GHz 450b 17 dBi Mid-Gain – ISED

  • SKU: C050045B033A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped directly from other locations when out of stock. Email me when this product is in stock!

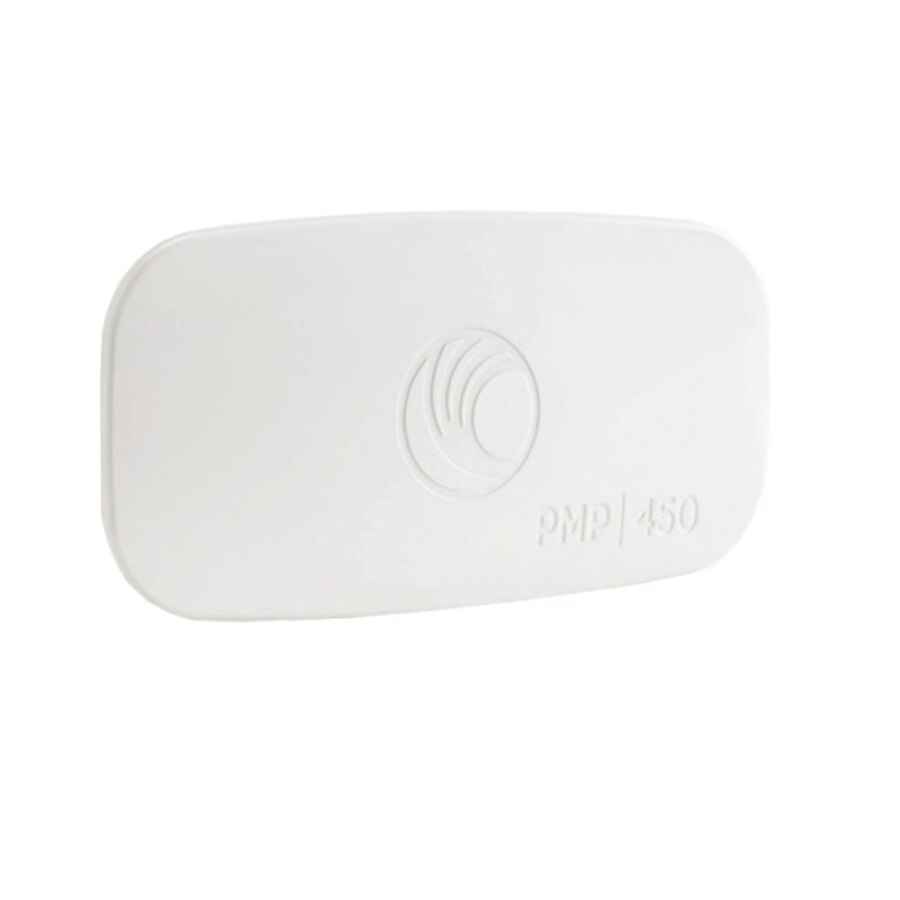

Cambium Networks C050045B033A

PTP450b 5GHz End, ODU with Integrated 17 dBi Mid-Gain Antenna, Uncapped throughput, ISED

Cambium Networks 450 platform increases performance with the addition of the 450b Subscriber and Backhaul Module.


  • Ultra-wide band radios support the entire band, from 4.9 to 5.925 GHz.
  • Gigabit Ethernet Interface provides the maximum transfer rates to the device.
  • 3.5 mm audio jack allows direct connection of headphones without any adapters.
  • New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM.
  • Capable of up to 300 Mbps aggregate in a 40 MHz channel.
  • Backhaul radios can function as a Point-to-Point (PTP) link or as a Subscriber Module (SM).

Shipping Information:

Dimensions (W x H x L)5.71cm X 3.62cm X 11.02cm
Weight1.81 lbs

Specifications C050045B033A

GPS SynchronizationNo
Broadband Frequency Band5 GHz
Frequency Range5470-5875 MHz
Network ProtocolIP
Antenna TypeIntegrated
Radio TypeSubscriber Module
Power Supply20 to 30V
Description5 GHz 450b - Mid-Gain - ISED
Encryption56-bit DES, 128-bit AES
MountingIntegrated pipe mount
Data Rate4 Mbit/s
