KP Performance 3GHz ± 45° Slant Dual Polarity 16.7 dBi 90° Sector GEN II

(0)No Reviews yet
  • SKU: KPPA-3GHZDP90S-45
US$‎270.74 US$‎284.99
  • Manufacturer: KP Performance
  • Data Sheet: Download

Out of Stock

441 in stock
University Park Illinois
441 In stock

Product Information

KP Performance KPPA-3GHZDP90S-45

3 GHz 90° ± 45 Degree Slant Dual Pol 16.5 dBi Sector GEN II / Cables Included

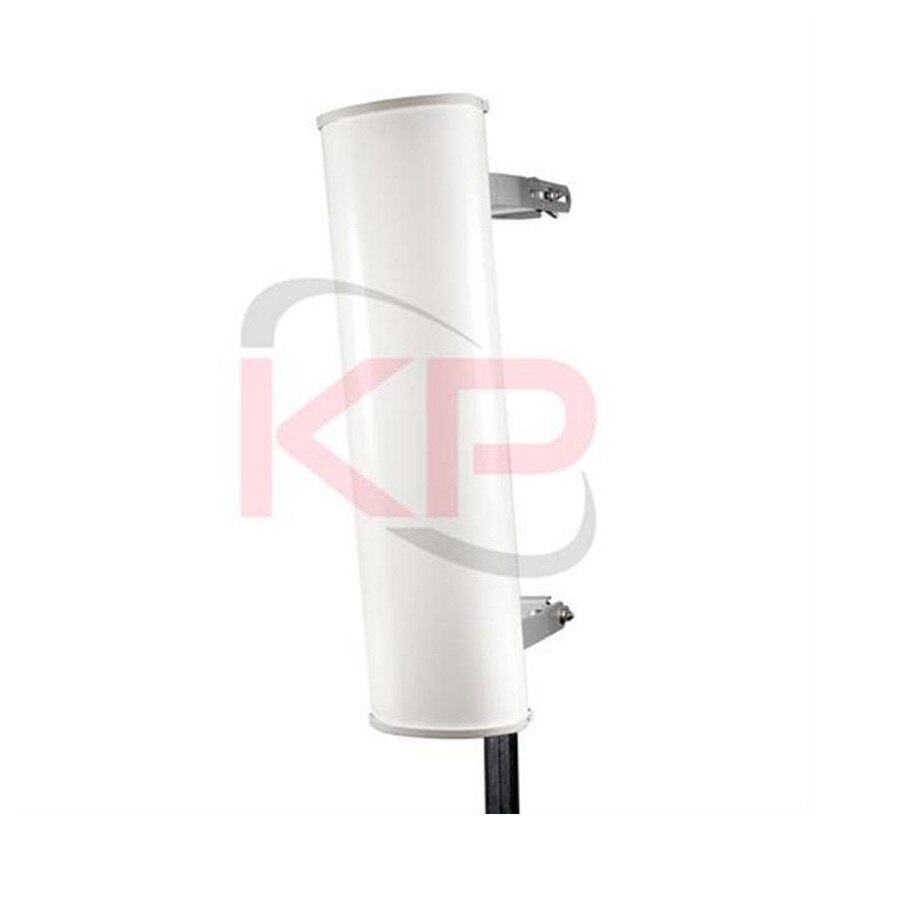

The KP Performance KPPA-3GHZDP90S-45 is a 3 GHz ±45 Degree Slant, Dual Pol 16.7 dBi, 90 Degree Sector Antenna with two type-N connectors. This 3 GHz sector antenna is specifically designed for customers deploying 45 degree slant radios.

These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. These 3 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors.


  • Functional mounting bracket.
  • Flexible LMR200 cables provided.
  • Stainless steel hardware.
  • Cost effective Antenna solution with radio casing attached


Specifications KPPA-3GHZDP90S-45

Part NumberKPPA-3GHZDP90S-45
Frequency range3300-3800 MHz
Polarization±45 degree slant
Gain16.7 dBi
Azimuth 3dB beamwidth90 °
Elevation 3dB beamwidth6.5 °
Electrical Downtilt2 °
VSWR< 1.5:1
Return loss> 14 dB
F/B ratio> 31 dB
Cross-pol ratio> 25 dB
Port to port isolation20 dB
ABAB frequency re-use-26 dB
ABABAB frequency re-use-23 dB
ABCABC frequency re-use-27 dB
Input power50 W max per port
Impedance50 Ω
Connector TypeType N Female x 2
Dimensions27 x 7 x 3.5”
Weight10 lb
Mounting methodCarriage bolts
Mounting pole dia 1¼ in – 3 ½ in
Surface FinishMatt powder coat
Temperature range-40° to +60° C / +140° F
Wind speed160 km/h / 100 mph
UV protectionUV resistant powder coat
Ingress protectionIP54 rain resistant
