Product Information
MikroTik RouterBOARD RBLtAP-2HnD&R11e-LTE
LtAP LTE kit with R11e-LTE modem 2.4GHz access point

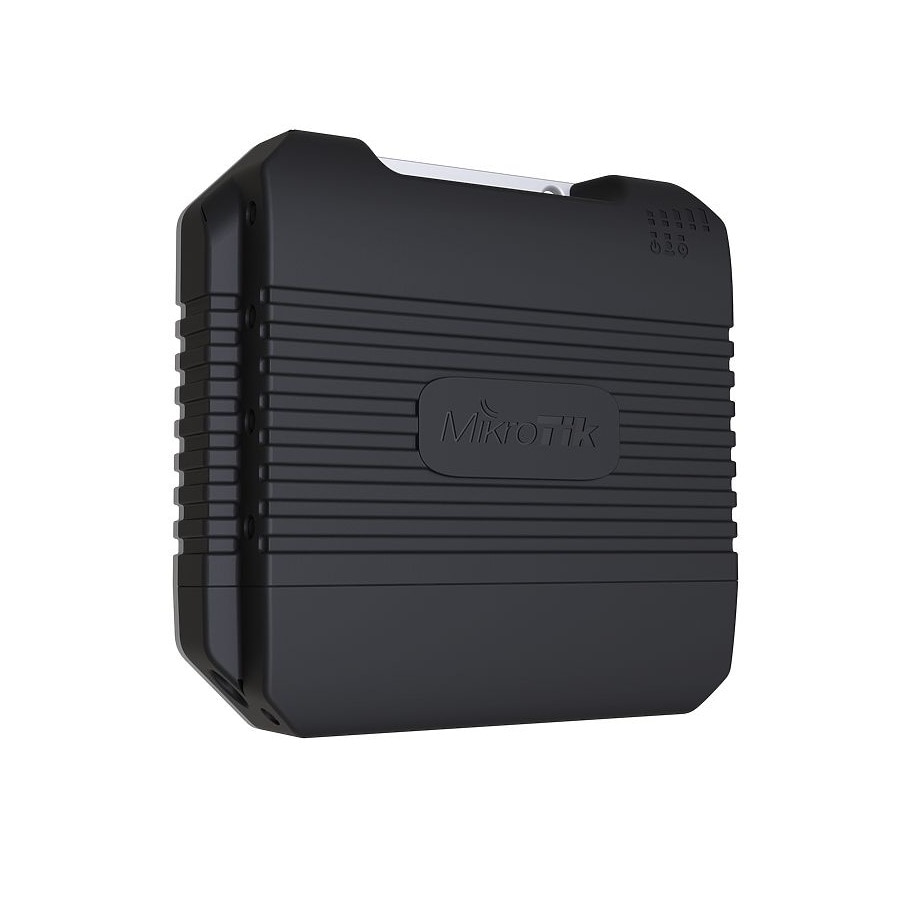

Introducing LtAP LTE kit– a heavy-duty 4G (LTE) access point with GPS support.
The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.
Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

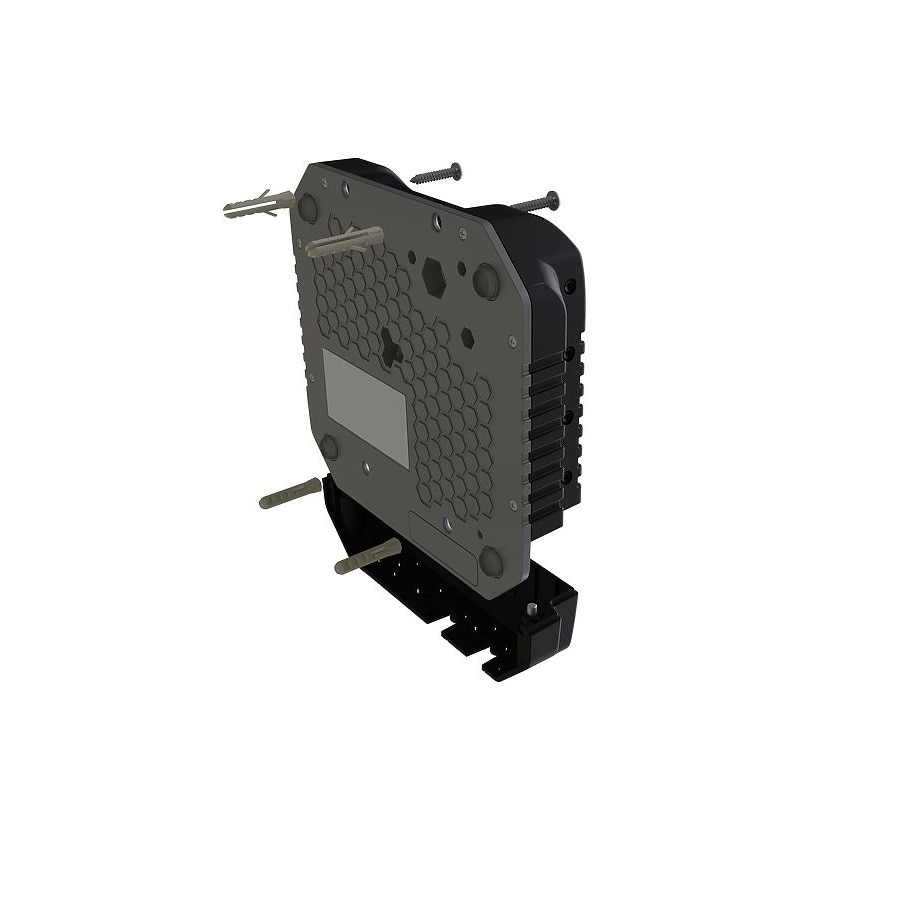

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C° to +70 C°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.

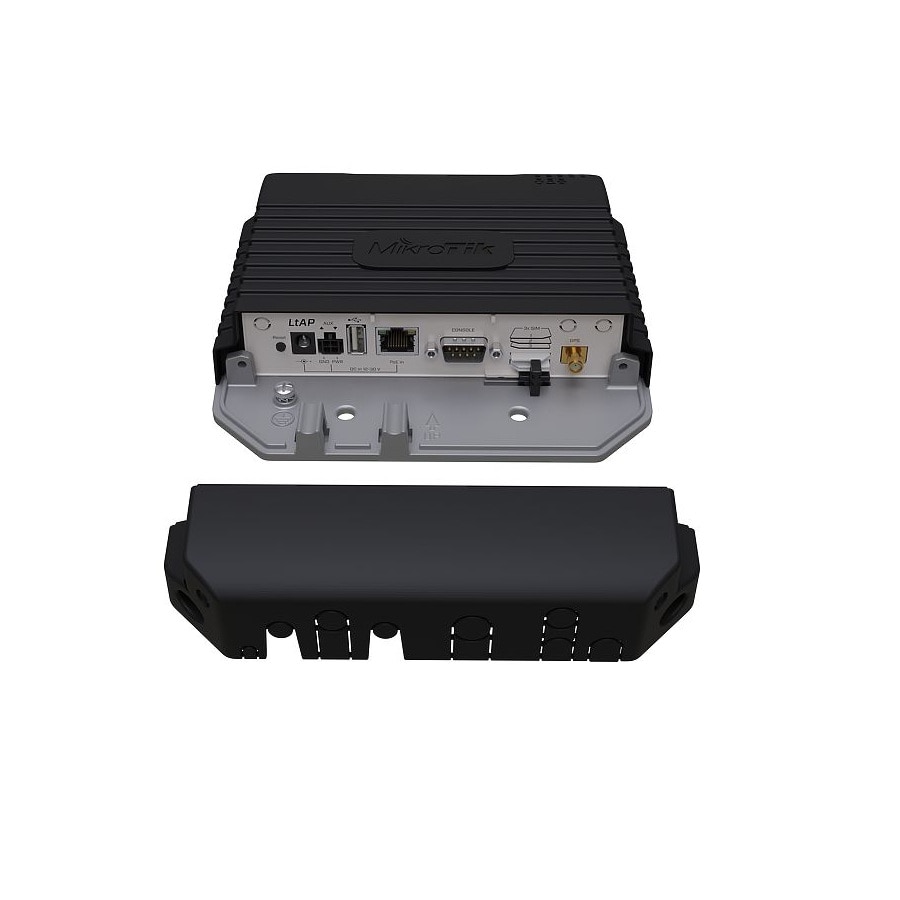

LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
The new LtAP LTE kit is more than an access point – it is what you need it to be wherever you need it to be.
Specifications
Specifications RBLtAP-2HnD&R11e-LTE
| CPU | Dual-core MediaTek MT7621 880 MHz |
| Size of RAM | 128 MB |
| Storage | 16 MB flash |
| 10/100/1000 Ethernet ports | 1 |
| Wireless | 2.4 GHz 802.11b/g/n dual-chain |
| Wireless regulations | Specific frequency range will be limited by country regulations |
| Wireless antenna max gain | 2.5 dBi |
| LTE antenna max gain | 4 dBi (with u.FL connector) |
| Antenna beam width | 360° |
| LTE category | 4 (150 Mbps Downlink, 50 Mbps Uplink) |
| 3G category | R7 (21 Mbps Downlinks, 5.76 Mbps Uplink) |
| 2G category | Class12 |
| Supported input voltage | DC jack or automotive connector 12 - 30 V |
| PoE in Passive PoE | 12 - 30 V |
| Dimensions | 170 x 162 x 40 mm |
| Operating temperature | -40°C .. +70°C |
| Operating system | RouterOS, License level 4 |
| Mini SIM slots | 3 |
| MiniPCIe slot #1 | Top slot supports PCIe and USB 2.0 cards, but is shared with the USB 2.0 type A port (can use either USB port or miniPCIe slot at the same time) |
| MiniPCIe slot #2 | Bottom slot supports only USB (2.0 and 3.0) miniPCIe modems (no PCIe support) |
| USB port | 1 USB 2.0 port type A (can only be used if miniPCIE slot #1 is not used) |
| Built-in GPS | Yes (external antenna option via MMCX connector) |
| Serial port | RS232 |
| Max power consumption | 24 W |
| Supported bands | |
| LtAP LTE kit | |
| LTE (FDD) bands | 1(2100)/2(1900)/3(1800)/7(2600)/8(900)/20(800) |
| LTE (TDD) bands | 38(2600)/40(2300) |
| 3G bands | 1(2100)/2(1900)/5(850)/8(900) |
| 2G bands | 2(1900)/3(1800)/5(850)/8(900) |
Wireless specifications
| Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
| 1MBit/s | 25 | -100 |
| 11MBit/s | 25 | -94 |
| 6MBit/s | 26 | -96 |
| 54MBit/s | 23 | -78 |
| MCS0 | 26 | -96 |
| MCS7 | 22 | -73 |
