MikroTik RB921GS-5HPacD-15S-US mANTBox 15s US

(0)No Reviews yet
US$‎134.83 US$‎139.00

Out of Stock

Call for Availability

Product Information

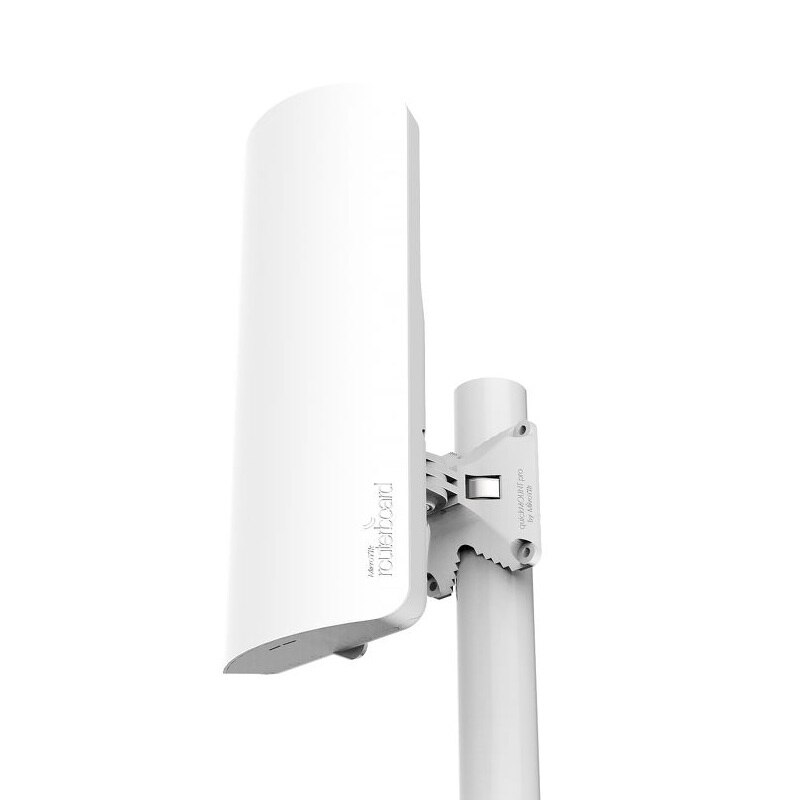

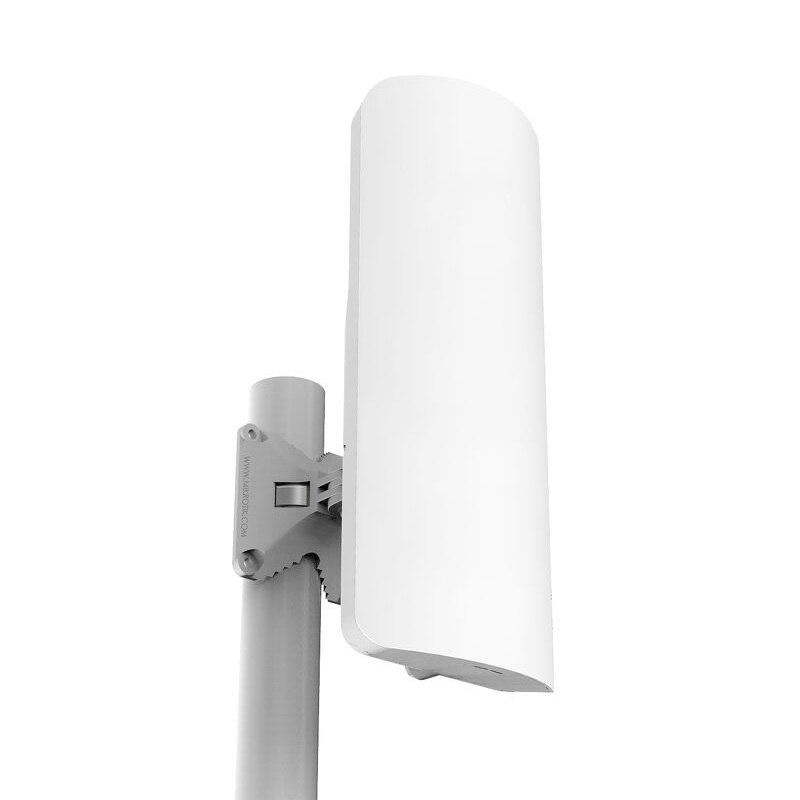

Mikrotik RouterBOARD RB921GS-5HPacD-15S-US (US Version)

5GHz 120 Degree 15dBi Dual Pol Sector Antenna

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power. Just like our mANT antennas, the mANTBox also comes in two sizes, a 15 dBi sector unit and a unit and 19 dBi sector unit.

The mANTBox15s is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO included.


Features:

  • CPU: 720MHz
  • Data Storage: 128MB NAND
  • Size of RAM:128MB DDR2 300MHz
  • SFP cage: 1
  • 24V 0.8A power adapter
  • QuickMOUNT PRO
  • K-41 screw kit
  • Metal ring

Specifications

Specifications RB921GS-5HPacD-15S-US

Product CodeRB921GS-5HPacD-15S
CPUSingle core QCA9557 720 MHz
Size of RAM128 MB DDR2 300Mhz
Data Storage128 MB NAND
10/100/1000 Ethernet ports1
SFP Cage1
WirelessBuilt-in 5 GHz 802.11ac, dual-chain
PCB temperature monitorYes
Voltage monitorYes
Power inputjack: 8-30 V DC, PoE in: 8-30 V DC
Power consumption13W
LEDs8
BeeperYes
Operating SystemMikroTik RouterOS, Level 4 license
Antenna Gain15 dBi
Frequency Range5.17 - 5.825 GHz
PolarizationVertical and horizontal
3DB Beamwidth - Azimuth120 deg
3DB Beamwidth - Elevation10 deg
VSWR1.43 typical, 1.8 max
Por-to-Port Isolation>40 dB min
Front-to-Back ratio>30
Cross Polarization>30
WeightPackage: 1.35 Kg Unit: 816g
Dimensions140 x 348 x 82 mm

Wireless Specs

RATETx (dBm)
6MBit/s31
54MBit/s27
MCS030
MCS727
MCS922
