RF Elements 90° Asymmetrical Beam TP Antenna
- SKU: AH90-TP
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information

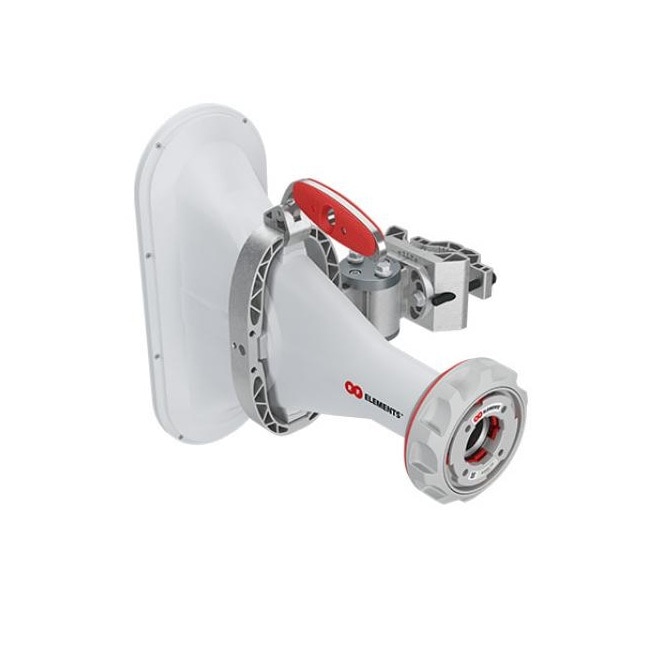

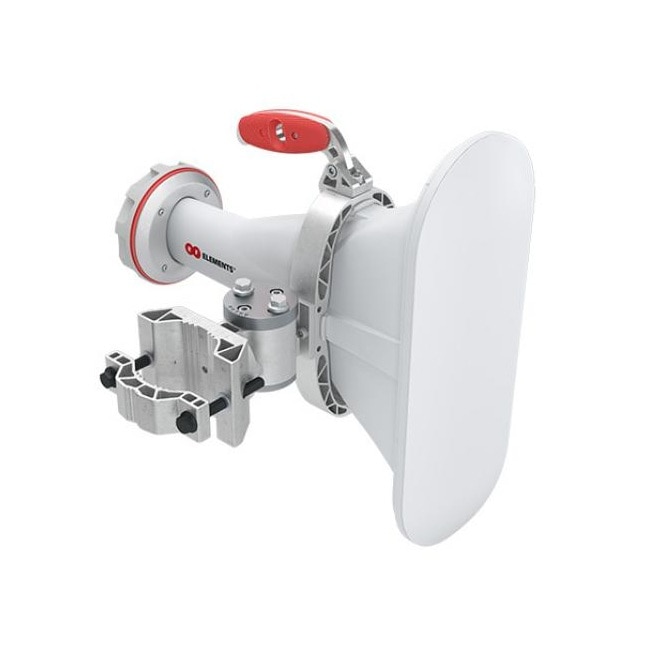

RF Elements AH90-TP
90° Asymmetrical Beam TP Antenna
90° Asymmetrical Horn TP Antenna combines the best of both worlds - a high gain of a traditionalsector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in the elevation plane, greatly improving coverage planning options. 90° Asymmetrical Horn TP Antenna delivers unmatched beam performance thanks to the high stability of gain and radiation pattern in the whole band of operation.
Outstanding performance favors 90° Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites. AH90-TP features our revolutionary TwistPort™ connector, a patentpending twist-and-lock waveguide port. 90° Asymmetrical Horn TP Antenna supports a wide range of third party mainstream radios with our TPA TwistPort™ Adaptor. AH90-TP features an all new mechanical structure with a massive aluminum ring and mounting bracket. Stainless steel hardware comes with black coating that prevents hardware seizing. Asymmetrical Horn antennas were awarded WISPA Product of the Year 2019, 2020 and 2021 Awards.
Specifications
Specifications AH90-TP
| Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate,HDPE, Aluminium, Stainless Steel |
| Enviromental | IP55 |
| Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 79/82 N - Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 646/654 cm2 - Front/Side (100.1/101.4 in2) |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 5.3 kg (11.6 lbs) – single unit* 7.2 kg (15.9 lbs) – single unit incl. package* |
| Single Unit Retail Box | 510 × 420 × 175 mm (20 x 16.5 x 6.8 inch)* |
| Frequency Range | 5180 - 6000 MHz |
| Gain | 16 dBi |
| Azimuth Beam Width -3 dB | H 60° / V 60° |
| Elevation Beam Width -3 dB | H 16° / V 16° |
| Azimuth Beam Width -6 dB | H 90° / V 90° |
| Elevation Beam Width -6 dB | H 25° / V 25° |
| Beam Efficiency | 90% |
| Front-to-Back Ratio | 30 dB |
