Tycon Systems 24V or 48V 1400Ah Batt, 900W Uninterruptible Power System
Product Information
Tycon Systems UPAL24/48-14-900
UPSPro 750W 17,280VA, 24/48VDC 30A Unregulated Output,120/240VAC Input, Aluminum Encl, 1440Ah Battery.Solar Ready.
The UPSPro® UPAL24/48-14-900 outdoor backup power systems are designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (requires blocking diode with most panels) so a solar panel can be added as an alternate power source or to extend backup time.

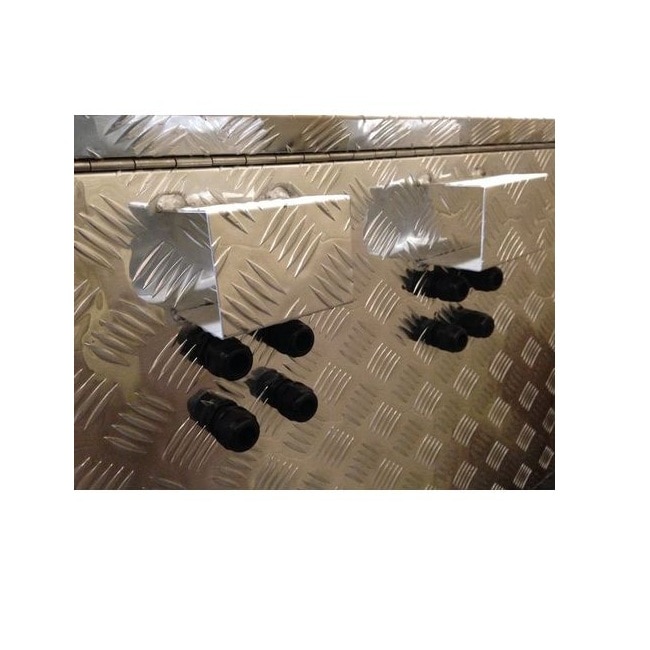

Features include 24V/48VDC configurable output, an advanced 60A MPPT battery charge controller to protect against over-charging or overdischarging of the valve regulated sealed lead acid pure lead carbon AGM batteries. The ground mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45C.
There is generous space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There are mounting struts incorporated inside the enclosure to be able to mount DIN Rails or a flat metal or plywood plate. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.
Features:
- Configurable as 24V or 48VDC System
- Weatherproof, UV resistant, outdoor enclosure
- Powered from AC mains power and/or Solar
- Interior space for customer electronics
- Ground Mounting
- Isolates Connected Equipment from Power Line Surges

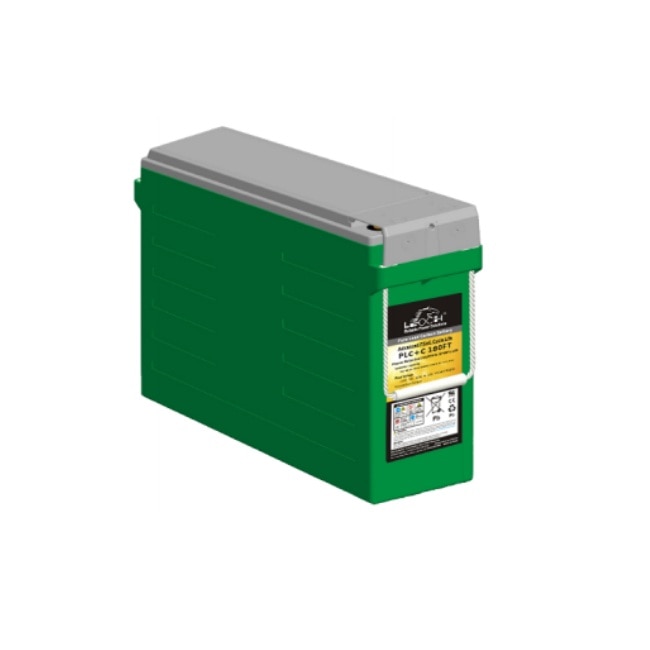

- High Quality Sealed Pure Lead Carbon AGM Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications:
- Wireless Base Stations and Clients
- Mission critical power
- Remote Sensors
- Wireless Bridge and Repeaters
- Surveillance Cameras
- Backup Power Systems
Specifications
Specifications UPAL24/48-14-900
| Battery Voltage (DC) | 24VDC or 48VDC (customer configurable) |
| Input Voltage (AC) | 120/240VAC, 50/60Hz, 5A Max. |
| Capacities (Amp Hr) | 1440Ah |
| Avail Storage Capacity (Watt Hr) | 17280Whr |
| Max Output Power | 900W |
| Suggested Maximum Load | 750W |
| Maximum Instantaneous Load | 30A 500msec |
| Battery Type | Valve Regulated Sealed Lead Acid / GEL |
| Battery Life | 5+ years |
| Battery Cable Fuse | 40A 250V Blade Fuse |

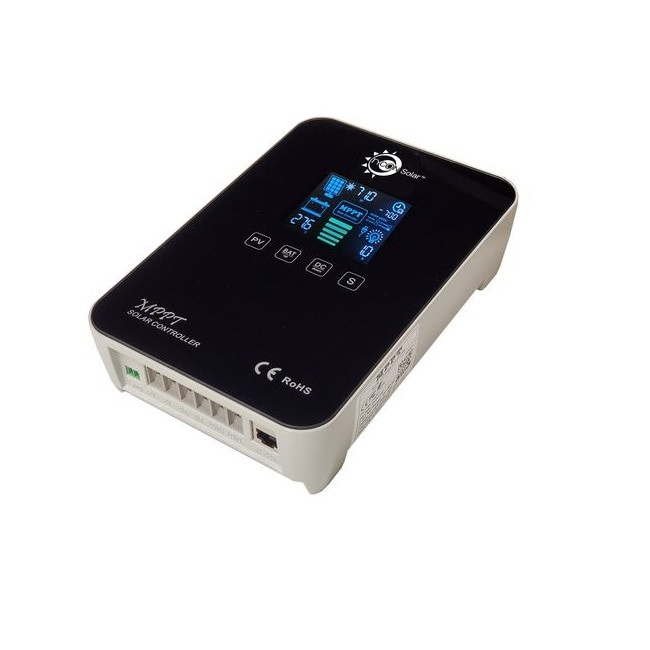

| Controller Type | 60A MPPT Solar Controller with Status Display and 30A Load with on/off switch |
| Maximum Solar Panel Size | 1560W @ 24V Battery Config, 3120W @ 48V Battery Config |
| Controller Display Status | Battery Voltage, Charging Voltage, Charging Current, Load Current, Temperature |
| Bulk Charge | 28.8V / 57.6V |
| Float Charge | 27.5V / 55.2V |
| Over-discharge protection | 22V / 44V |
| Over-discharge recovery voltage | 25.2V / 50.4V |
| Controller Self Consumption | <1W |

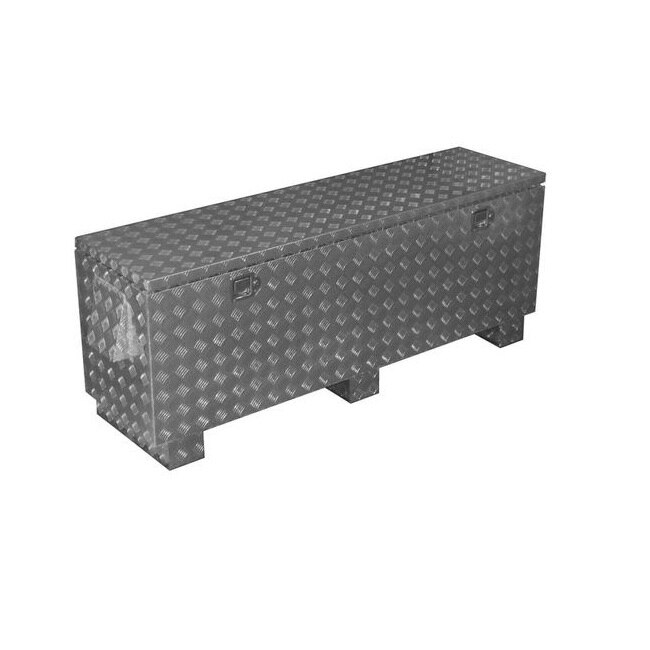

| Enclosure Type | Ground Mount, Key Lock, Aluminum Diamond Plate |
| Enclosure Size | 65” x 18” x 20” (1651 x 457 x 508mm) |
| Operating Temperature | -40°C to +65°C (-40°F to 149°F) |
| System Weight (without batteries) | 85lbs (39kg) |
| Battery Weight | 8 x 127lbs (58kg) |
| Certifications | Individual components used have CE Certifications. |
| Warranty | 3 Years |
