Tycon Power 48V 720Ah Batt, 900W Uninterruptible Power System

US$‎4,749.95 US$‎4,999.95
  • SKU: UPAL48-720-900
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • User Guide: Download
  • Availability: Direct Ship Item Ships direct from manufacturer usually same day Email me when this product is in stock!
US$‎4,749.95 US$‎4,999.95

Tycon Power UPAL48-720-900

UPSPro 200W 8640VA, 24/48VDC Out, 7 GigE 802.3at/24V Pasv PoE Ports, 24/48V 2.25A Aux, 120/240VAC Input, Alum. Encl, 720Ah Battery

The UPSPro STL48-900W series outdoor enclosures are designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready so a solar panel can be added as an alternate power source or to extend backup time. Features include 12V/24V/48VDC configurable output, an advanced 60A MPPT battery charge controller to protect against overcharging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

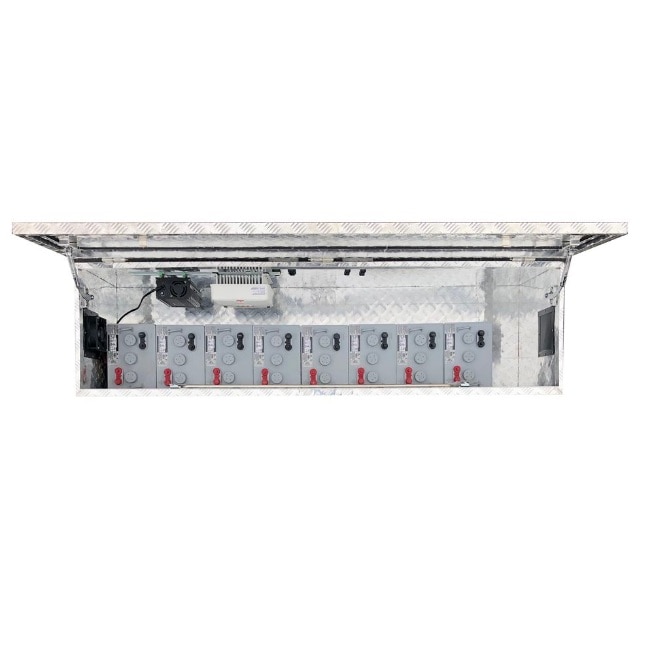

There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There is a 1U rack mount feature in the enclosure for rack mounting. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.

A typical high power wireless access point with average power consumption of 8W will run 40 hours on a 52Ah battery at room temperature or 28 hours at -20 deg C.


Features:

  • Configurable as 12V, 24V or 48VDC System
  • Weatherproof, UV resistant, outdoor enclosures
  • Powered from AC mains power and/or Solar
  • Interior space for customer electronics
  • Wall or Pole Mounting
  • Isolates Customer Equipment from Power Line Surges
  • High Quality AGM Sealed Lead Acid Batteries
  • Advanced battery charge controller protects against overcharge and over discharge

Applications:

  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Mission critical outdoor power
  • Backup Power Systems

Specifications UPAL48-720-900

Battery Voltage (DC)48VDC
Input Voltage (AC)120/240VAC, 50/60Hz, 5A Max.
Capacities (Amp Hour)720Ah
Avail. Storage Capacity (Watt Hour)8640Whr
Max. Output Power900W
Suggested Maximum Load750W
Maximum Instantaneous Load30A 500msec
Battery TypeValve Regulated Sealed Lead Acid / GEL
Battery Life5+ years
Battery Cable Fuse40A 250V Blade Fuse
Controller Type60A MPPT Solar Controller with Status Display and 30A Load with on/off switch
Maximum Solar Panel Size1560W @ 24V Battery Config, 3120W @ 48V Battery Config
Controller Display StatusBattery Voltage, Charging Voltage, Charging Current, Load Current, Temperature
Bulk Charge28.8V / 57.6V
Float Charge27.5V / 55.2V
Over-discharge protection22V / 44V
Over-discharge recovery voltage25.2V / 50.4V
Controller Self Consumption<1W

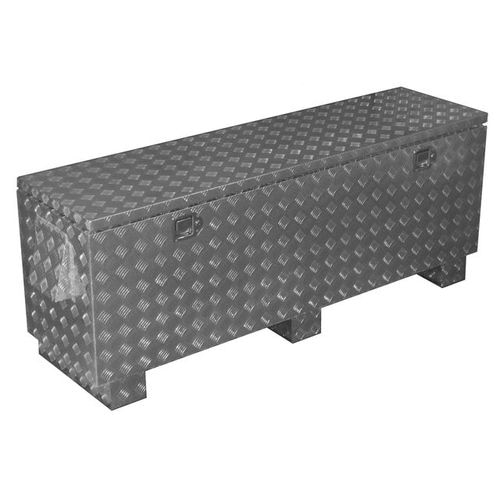

Enclosure TypeGround Mount, Key Lock, Aluminum Diamond Plate
Enclosure Size65” x 18” x 20” (1651 x 457 x 508mm)
Operating Temperature-40°C to +65°C (-40°F to 149°F)
System Weight (without batteries)78lbs (35kg)
Battery Weight4 x 127lbs (58kg)
CertificationsIndividual components used have CE Certifications.
Warranty3 Years
