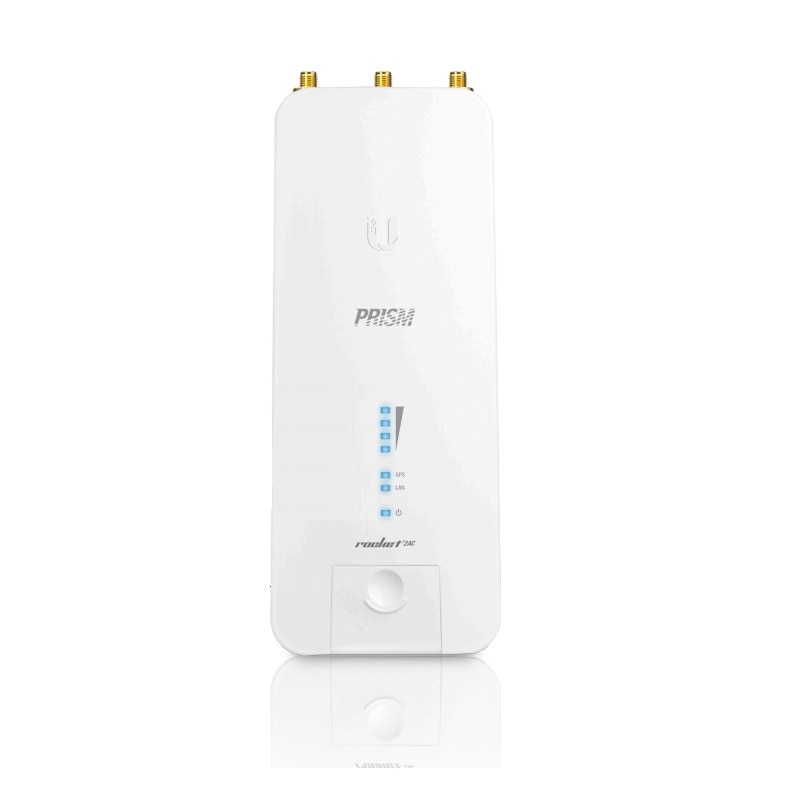

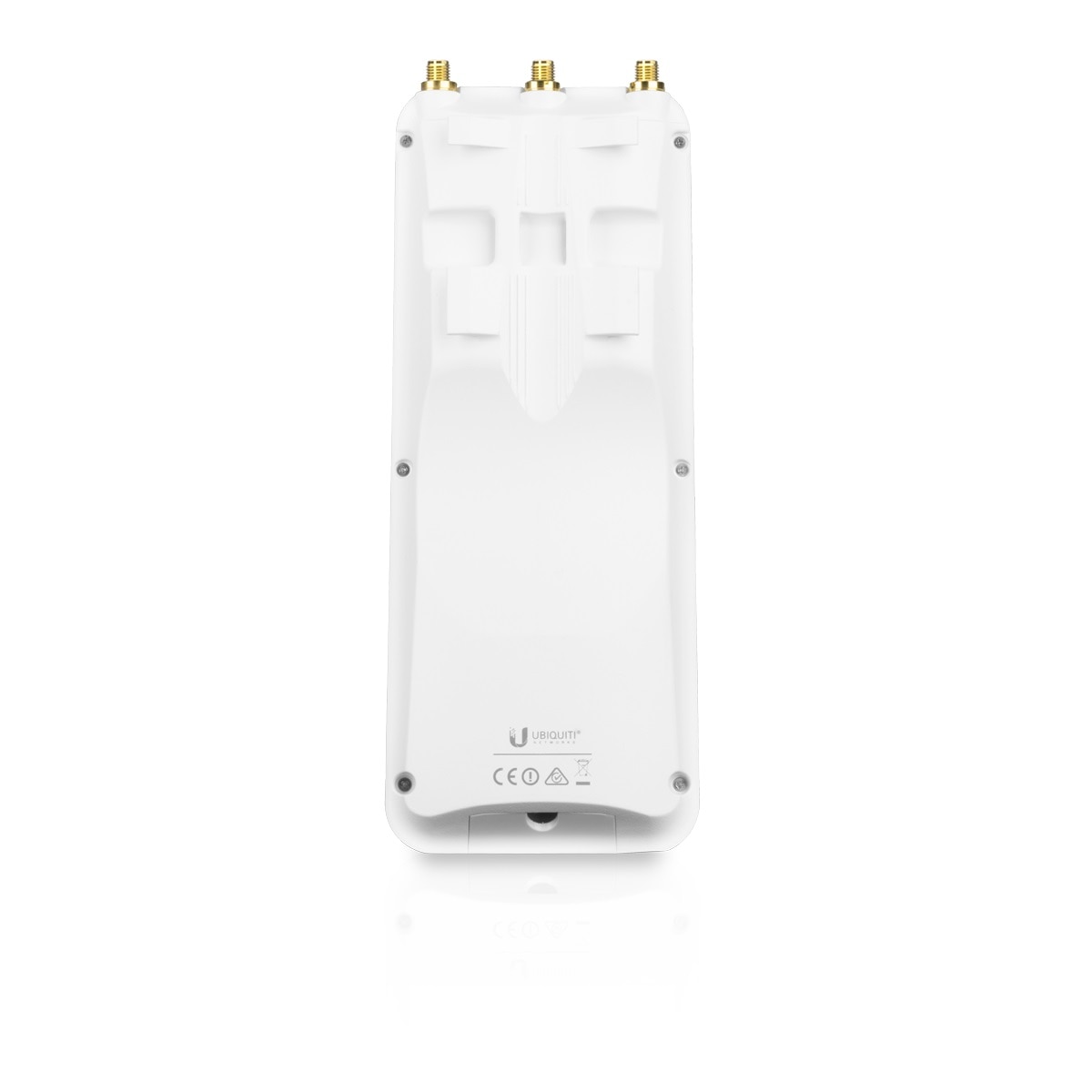

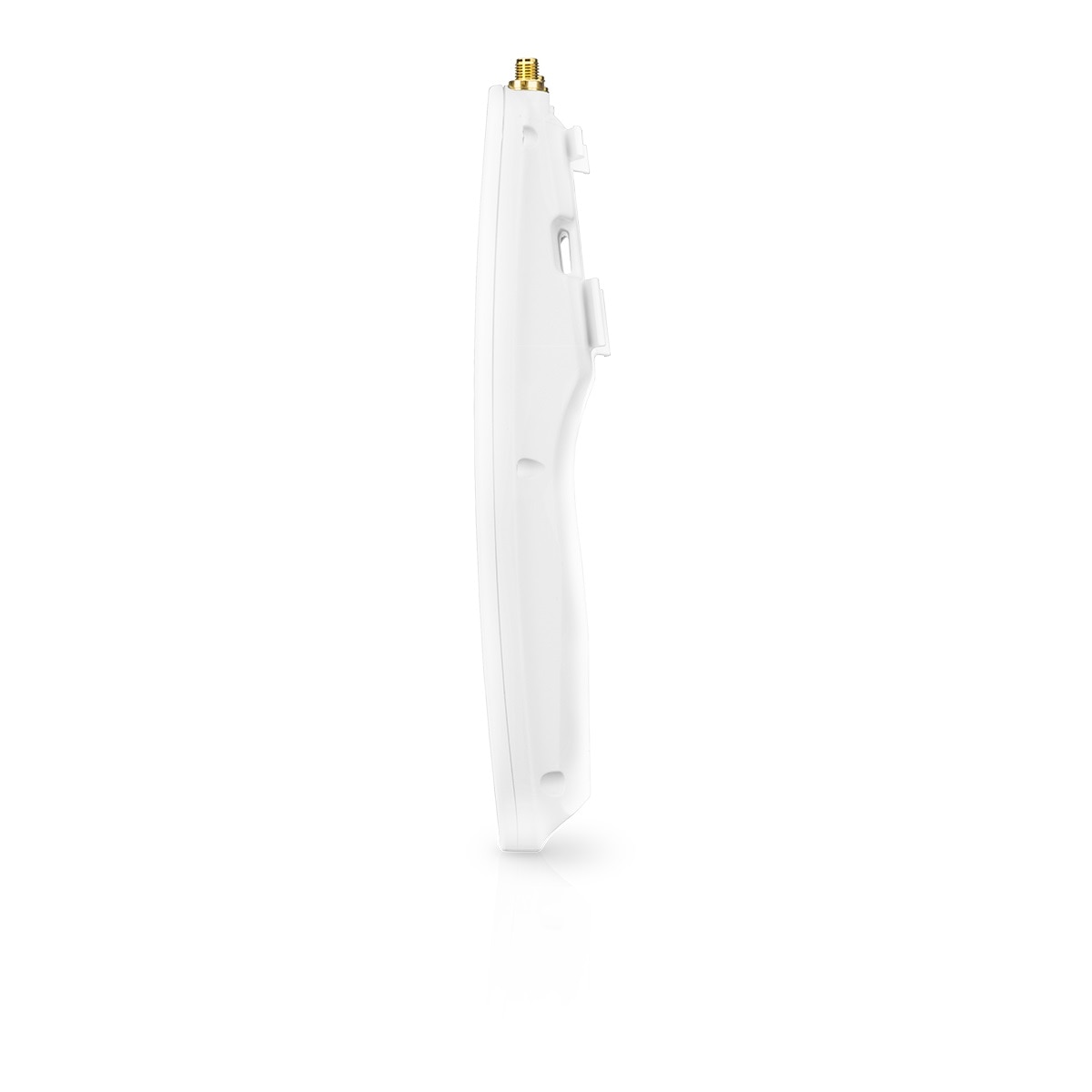

Ubiquiti Rocket 2GHz ac Radio
Ubiquiti Networks R2AC-US
2GHz Rocket ac Prism (US Version)
Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas.
Pair the Rocket 2AC Prism with airMAX ac antennas for optimal performance:
- PtP backhaul RocketDish™ ac Antenna
- PtMP links airMAX ac Sector
2.4 GHz Coverage Deploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz spectrum with a single radio. The Rocket 2AC Prism allows for flexibility in configuring channel bandwidths (subject to local country regulations).
Management Wi-Fi Radio
The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The Rocket® Prism AC features enhanced protection against ESD events.
The Rocket® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

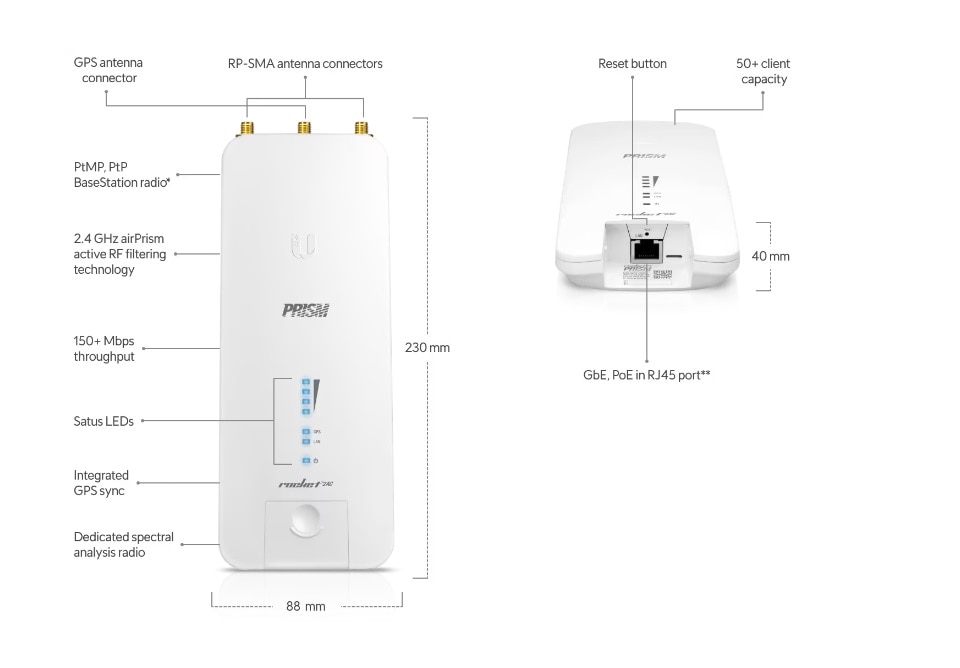

|Dimensions||88 x 40 x 230 mm (3.47 x 1.58 x 9.06")|
|Weight||440 g (15.52 oz)|
|Power Supply||24V, 0.5A Gigabit PoE|
|Max. Power Consumption||8.5W|
|Power Method||Passive PoE (Pairs 4, 5+; 7, 8 Return)|
|Supported Voltage Range||18-26VDC|
|Networking Interface||(1) 10/100/1000 Ethernet Port|

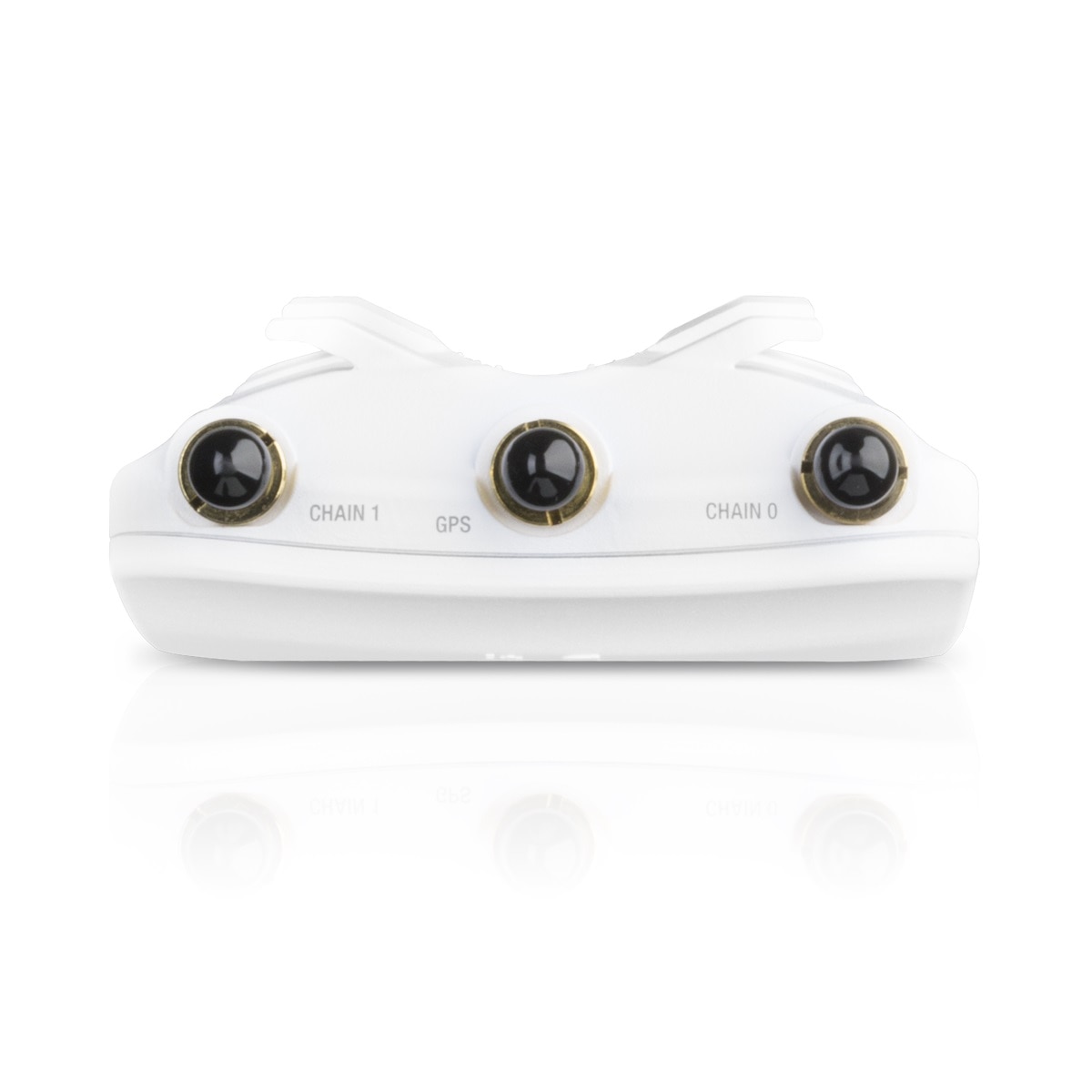

|RF Connectors||(2) RP-SMA (Waterproof ); (1) GPS (Waterproof )|
|Processor Specs||Atheros MIPS 74Kc, 720 MHz|
|Memory||128 MB DDR2 SDRAM, 16 MB NOR Flash|
|LEDs||Power, LAN, (4) Signal Strength, GPS|
|Signal Strength LEDs||Software-Adjustable to Correspond to Custom RSSI Levels|
|Channel Width Support||10/20/40 MHz|
|Enclosure Characteristics||Die-Cast Aluminum with White Powder Coating|
|ESD/EMP Protection||Air: ± 24 kV, Contact: ± 24 kV|
|Operating Temperature||-40 to 70° C (-40 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Wireless Approvals||FCC, IC, CE|
|Shock and Vibration||ETSI300-019-1.4|
|Modes||Access Point, Station|
|Services||Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing|
|Utilities||airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test|
|Distance Adjustment||Dynamic Ack and Ackless Mode|
|Power Adjustment||Software Adjustable UI|
|Security||WPA2 AES Only|
|QoS||Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low|
|Statistical Reporting||Uptime, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate|
|Other||Remote Reset Support Software Enabled/Disabled, VLAN Support, 256QAM, GPS, TX Filter|
|Ubiquiti Specific Features||10 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Ackless Mode|
