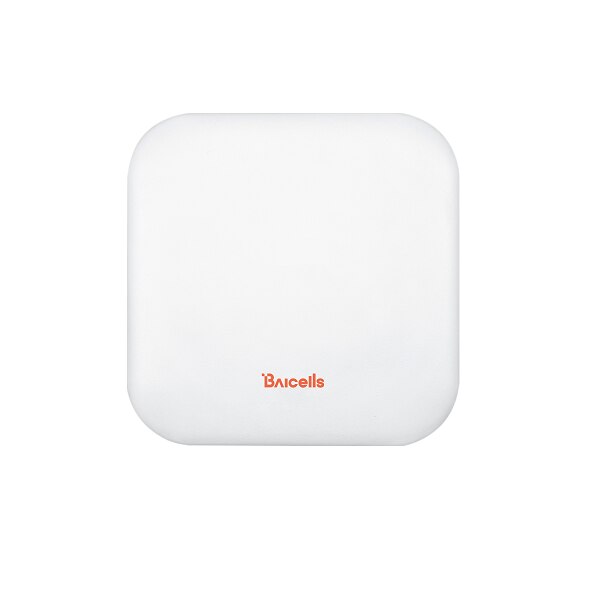

Baicells CBRS supported CAT12 Mifi UE Cat12 Band 38/40/41/42/43/48
- SKU: BC-Mifi-010411
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
Baicells BC-Mifi-010411
CBRS supported CAT12 Mifi UE Cat12 Band 38/40/41/42/43/48
Baicells Atom OD06 outdoor CPE 3.5 GHz. The Baicells Atom OD06 outdoor high-gain user equipment (UE) provides superior wireless access performance and routing capabilities to bring broadband data and voice services to end-users. The UE operates with standardized long-term evolution (LTE) time division duplexing (TDD) to enable high-speed, wireless communications. The Atom OD06 high-gain UE is designed exclusively for the fixed wireless market, featuring a spring-locked gasketed door for protecting the SIM slot and eliminating the need to weatherproof the power and ethernet connections. Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the UE simultaneously. The product comes with a standard one-year warranty.
Features:
- Supports LTE TDD Bands 40/41/42/43/48
- 2.5 GHz or 3.6 GHz models
- Complies with 3GPP Release 10 Cat6/7 standards
- 1000 Mbps Ethernet interface
- GUI-based local and remote web management
- TR069 network management protocol support
- Cell lock, SIM lock, and pin lock
- User-friendly LED status indicators
- Built-in LTE bipolar, directional, high-gain antenna Power supply with PoE
- Pole or wall mount
- Wi-Fi assisted alignment
Specifications
LTE Mode | TDD |
Frequency Bands | Band 38, 40, 41, 42, 43, 48 |
Max Output Power | 23 +/- 2 dBm |
CA and MIMO | CA: intra- or inter-band DL 2CA (4X4 MIMO 64 QAM) DL 3CA (2X2 MIMO 256 QAM) DL 4CA (2X2 MIMO 256 QAM) |
Memory | NAND 512 MB + LPDDR2 256 MB |
LED | • 4G Status • Power Status • Wi-Fi Status |
External Interface | • USB Type-C plug (with 39” cable) • SIM card slot (4FF) |
Buttons | Power key, Menu key |
Battery | • Capacity: 4000 mAh • Life: 5 to 6 hours (typical) |
Antenna | Internal, LTE 1T4R (256 QAM) or 1T2R (256 QAM) |
Dimensions (HxWxD) | • 3.9 x 2.7 x 0.8 inches • 98 x 68.6 x 20 millimeters |
Weight | 0.3 lbs. / 120 g |
MTBF | Greater than or equal to 150000 hours |
MTTR | Less than or equal to 1 hour |
