Cambium Networks 450b Retro Subscriber Module
US$378.78
- SKU: C050045B102A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C050045B102A

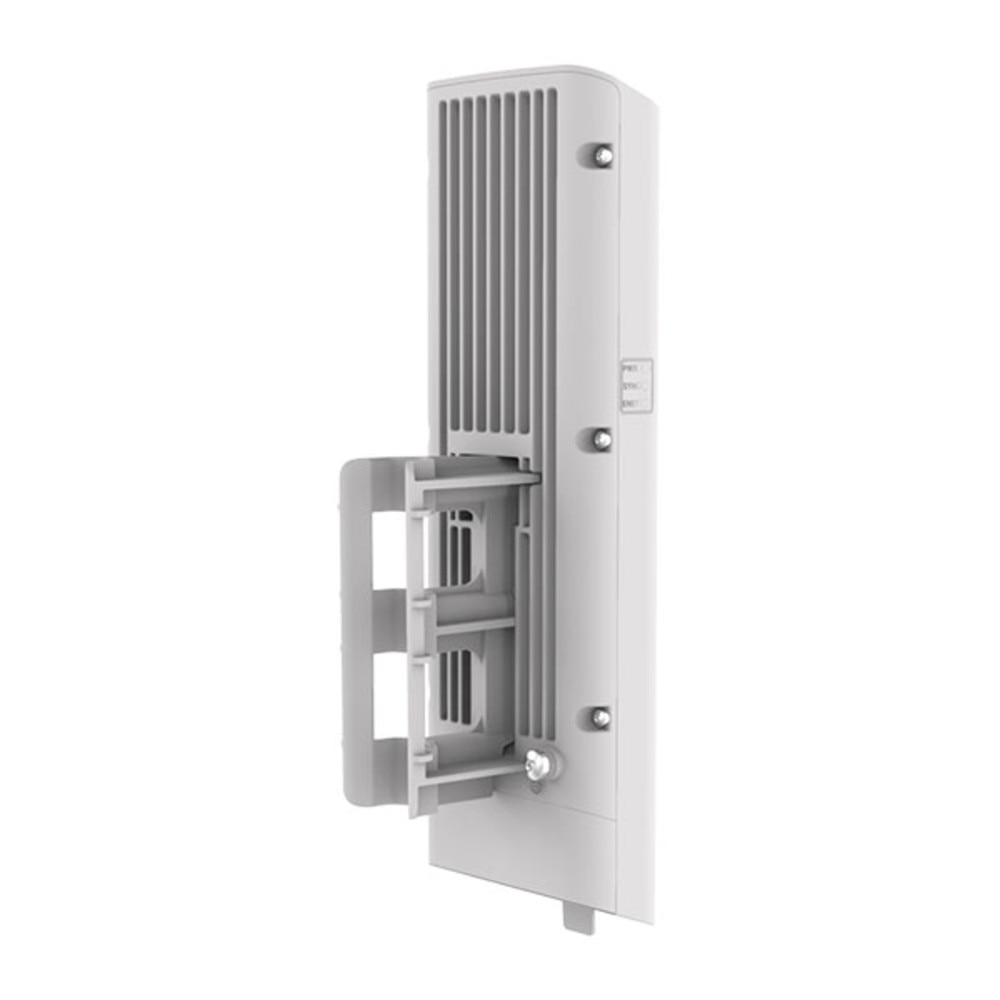

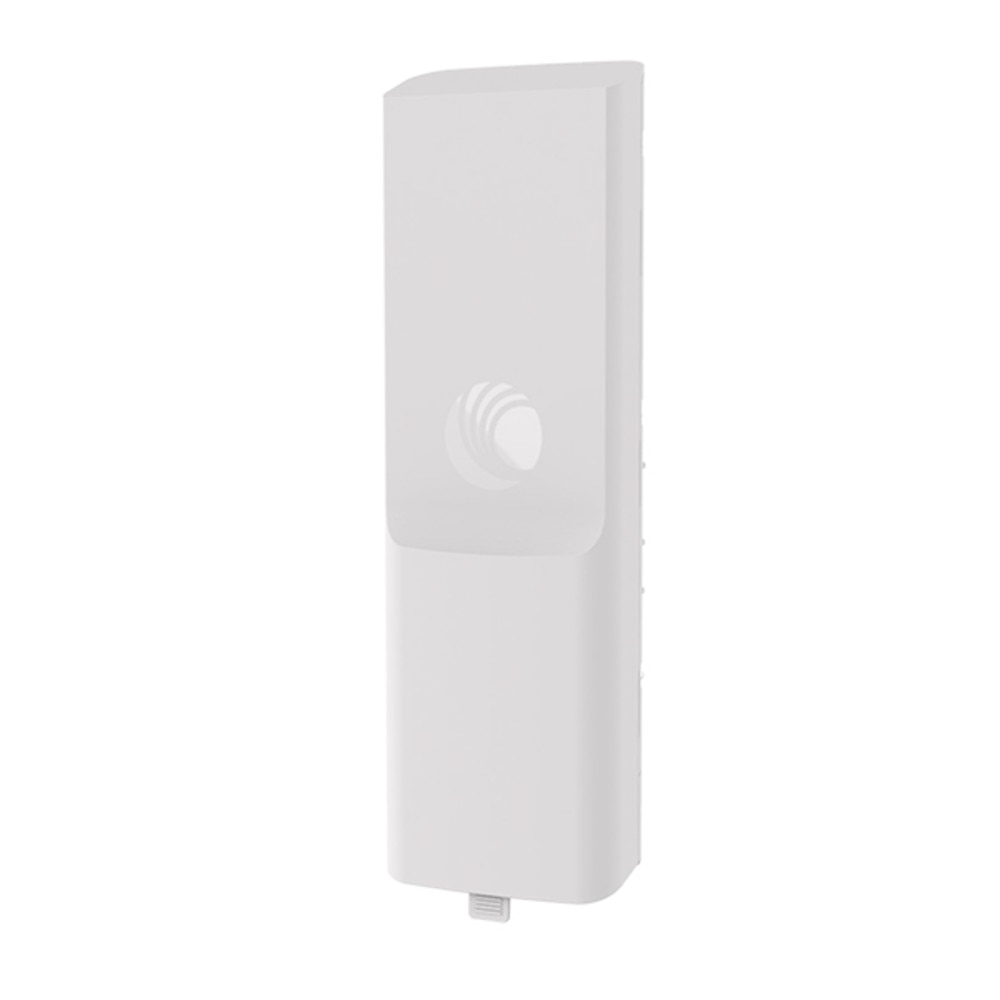

Cambium Networks 450b Retro Subscriber Module
The Cambium Networks 450b Retro Subscriber Module increases performance with the addition of the 450b Subscriber and Backhaul Module.
Features:
- Ultra-wide band radios: 4.9 GHz to 5.925 GHz
- Capable of up to 300 Mbps aggregate in a 40 MHz channel
- Can function as a Point-to-Point (PTP) link or as a Subscriber Module (SM)
- Gigabit Ethernet Interface provides the maximum transfer rates to the device.
- 3.5 mm audio jack allows direct connection of headphones without any adapters.
- New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM.
- Form factor allows the use of existing Offset Reflector dishes.
Specifications
Specifications C050045B102A
| Interface | |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000 BaseT, full duplex, rate auto negotiated, 802.3 compliant |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Security | |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License for attached Access Point) |
| Performance | |
| PPS | 50,000 |
| ARQ | Yes |
| Ultimate Sensitivity | -94 dBm |
| Maximum Deployment Range | Up to 40 miles (64 km) in PMP mode, up to 124 miles (200 km) in PTP mode |
| Latency | 3 - 5 ms, typical |
| GPS Synchronization | Yes, synchronized by Access Point or via 3.5mm port using cnPulse (for PTP mode) |
| Quality of Service | Diffserve QoS |
| Physical | |
| Integrated Antenna Gain | 9 dBi |
| Azimuth (3 dB rolloff) | 45º |
| Elevation (3 dB rolloff) | 45º |
| VSWR (MAX) | 2:1 |
| Antenna Accessories | Optional Offset Reflector dish: HK2022A - 4-pack -- Enables total gain of 24 dBi |
| Surge Suppression | EN 61000-4-5: 10x700 μs, 4 kV, EN 61000-4-2: ESD 30 kV contact / 30 kV air |
| Mean Time Between Failure | >40 Years |
| Environmental | IP55 |
| Temperature / Humidity | -40°C to 60°C (-40°F to 140°F), 0-95% non-condensing |
| Weight | 0.4 kg (1 lb) (includes mounting bracket) |
| Wind Survival | 200 kph (124 mph) |
| Dimensions (HxWxD) | 28.6 cm x 8.9 cm x 8.9 cm (11.25 in x 3.5 in x 3.5 in) |
| Pole Diameter Range (w/ included mount) | 1 in to 3 in pole diameter |
| Power Consumption | 9 W typical, 12 W peak |
| Input Voltage | 24-30 VDC, Canopy-style PoE |
| Link Budget | |
| Transmit Power Range | 57 dB dynamic range (to EIRP limit by region) (1 dB step) |
| Maximum Transmit Power | +27 dBm (MIMO, combined V+H) (+22 dBm @ 256QAM) |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Certifications | |
| ISED Canada | 109W-0042 |
| FCC ID | Z8H89FT0042 EN 301 893 v2.1.1 EN 302 502 v2.1.1 |
