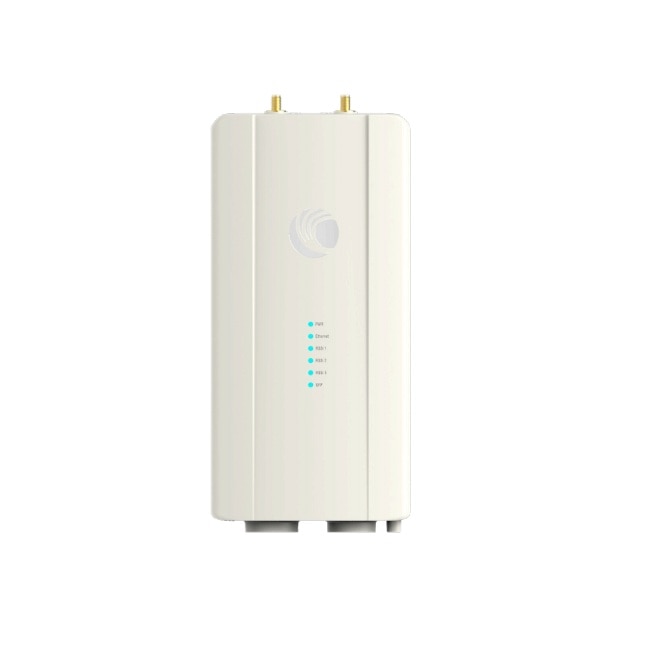

Cambium ePMP 5 GHz Force 400C (FCC) (US Cord)
US$614.70
- SKU: C058940C122A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C058940C122A
ePMP 5 GHz Force 400C (FCC) (US Cord)
ePMP Force 400C, 5GHz PTP Radio Connectorized for External Antenna, 802.11ax, up to 1Gbps throughput, FCC. US power cord
**Uses ePMP 2000 Twistport Adapter TP-ADAP-e2K**
Specifications
Specifications C058940C122A
| Channel Width MHz | 20 | 40 | 80 |
| Proprietary Physical Layer | 802.11ax, 2x2 MIMO/OFDM |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910 - 6135 MHz |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts; 10 Gigabit SFP cage for optional SFP modules Protocols |
| Used | IPv4/IPv6 (Dual Management Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Maximum Capacity | 1 Gbps |
| Latency | < 5 ms |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -93 dBm to MCS 11 (1024 QAM-5/6) = -63 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -90 dBm to MCS 11 (1024 QAM-5/6) = -60 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -87 dBm to MCS 11 (1024 QAM-5/6) = -57 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Physical | |
| Connectors | 1 x RJ-45, 1 x SFP, 2 x RP-SMA |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 65°C (-22°F to 149°F) |
| Weight | 1.3 kg (2.9 lbs.) |
| Wind Survival | 200 km/hour (124 mph) |
| Dimensions(H x W x D) | 256 mm x 125 mm x 46 mm (10.1 in x 4.9 in. x 1.8 in.) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 inches) |
| Power Consumption | 28 W |
| Input Voltage | 802.3at or Passive PoE 44-59 V |
| Security | |
| Encryption | 128-bit Over-the-Air Encryption (256-bit AES where export rules allow - ROADMAP Feature) |
| Certifications | |
| FCC Regulatory Part Number | C058940P122A |
| FCC ID** | Z8H89FT0062 |
| ETSI/ROW Regulatory Part Number | C050940P021A |
| Industry Canada Cert** | 109W-0062 |
| CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)** |
