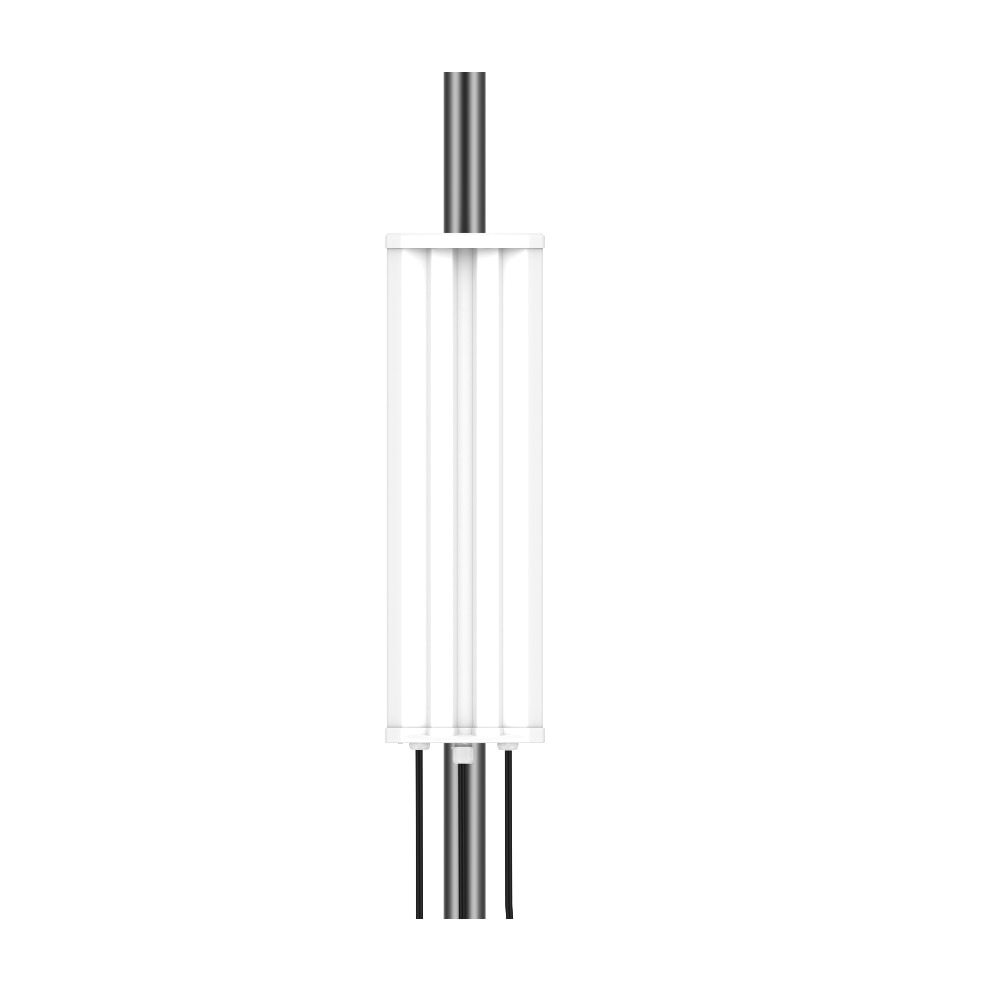

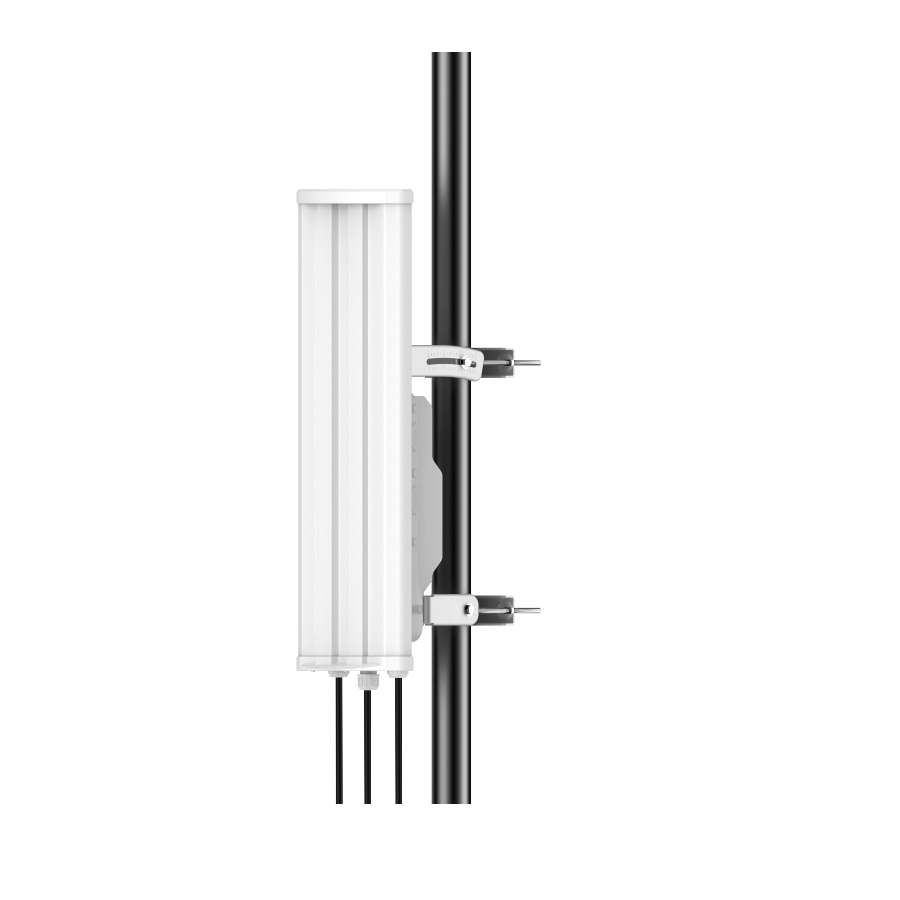

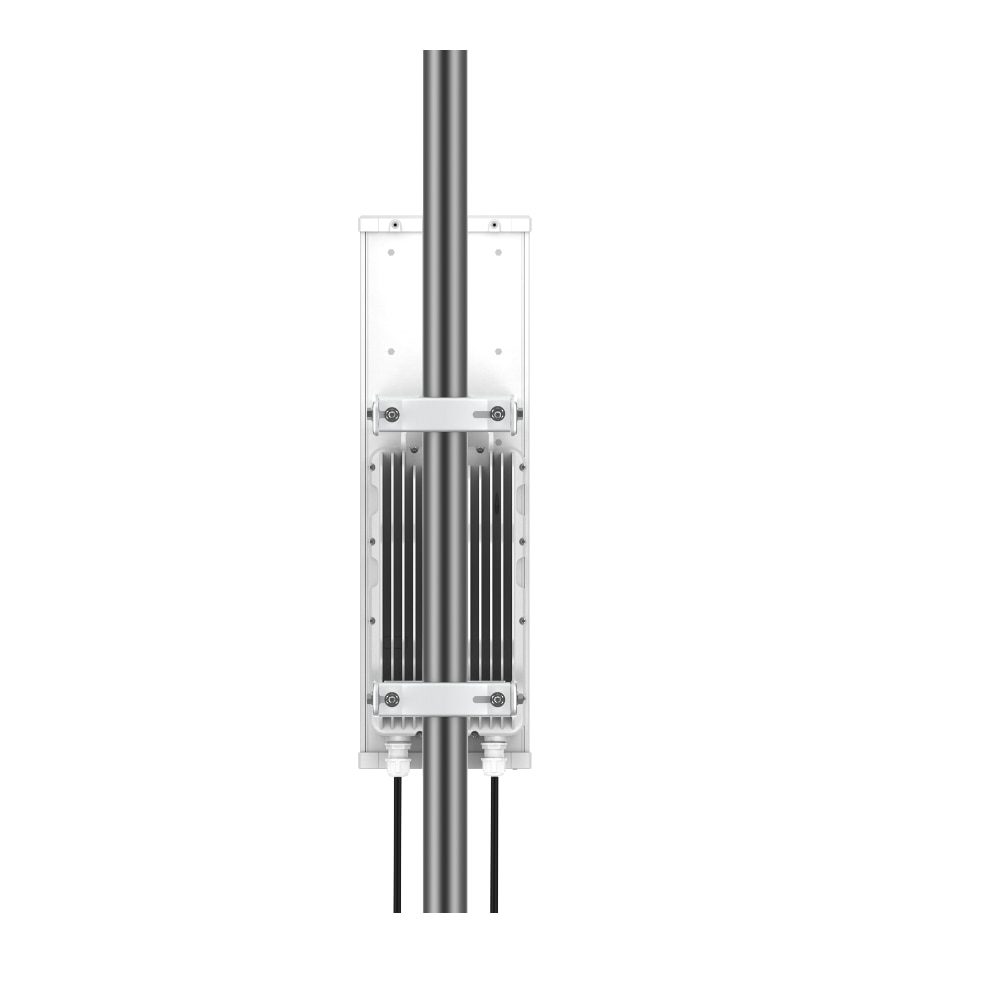

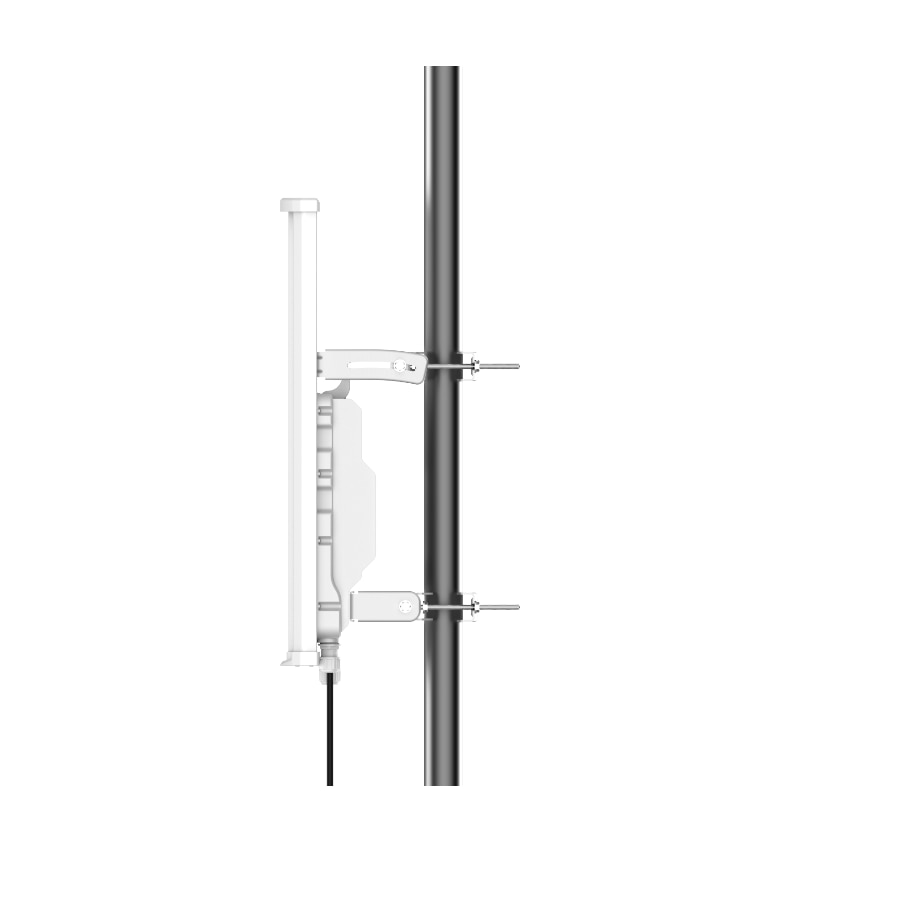

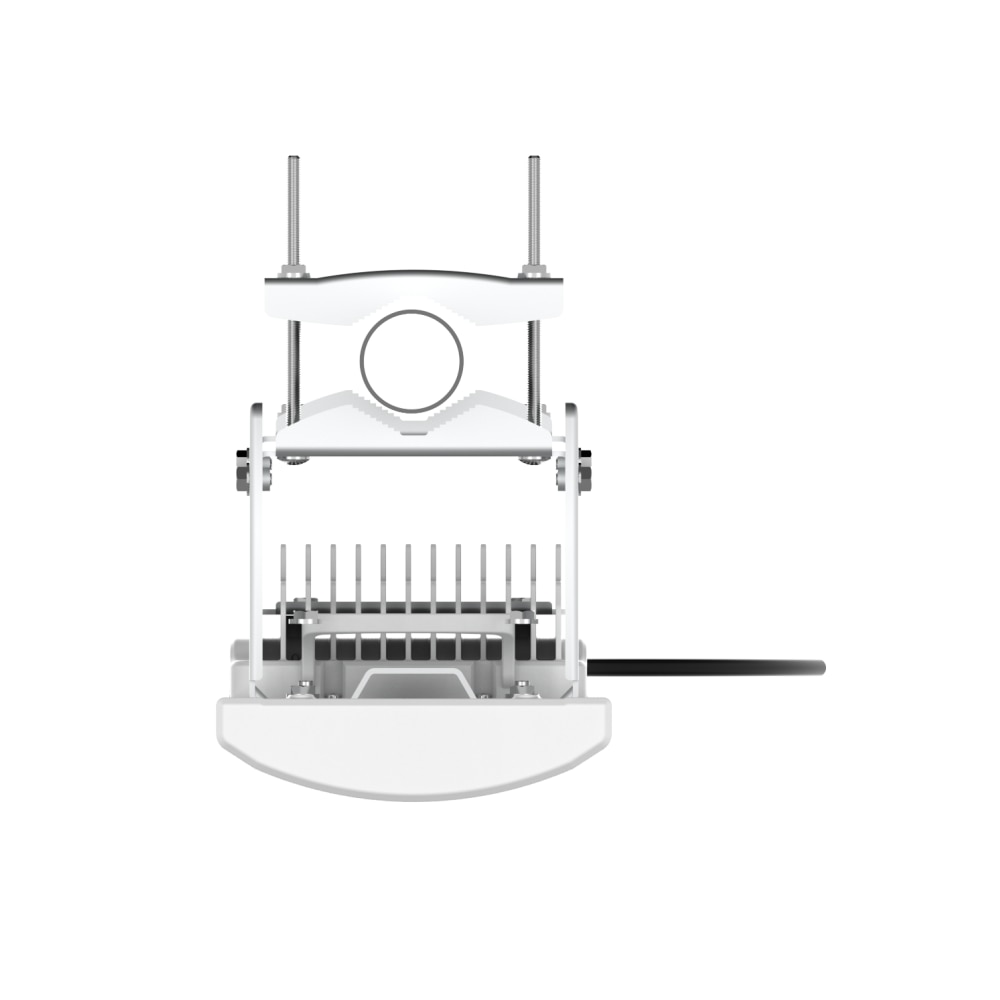

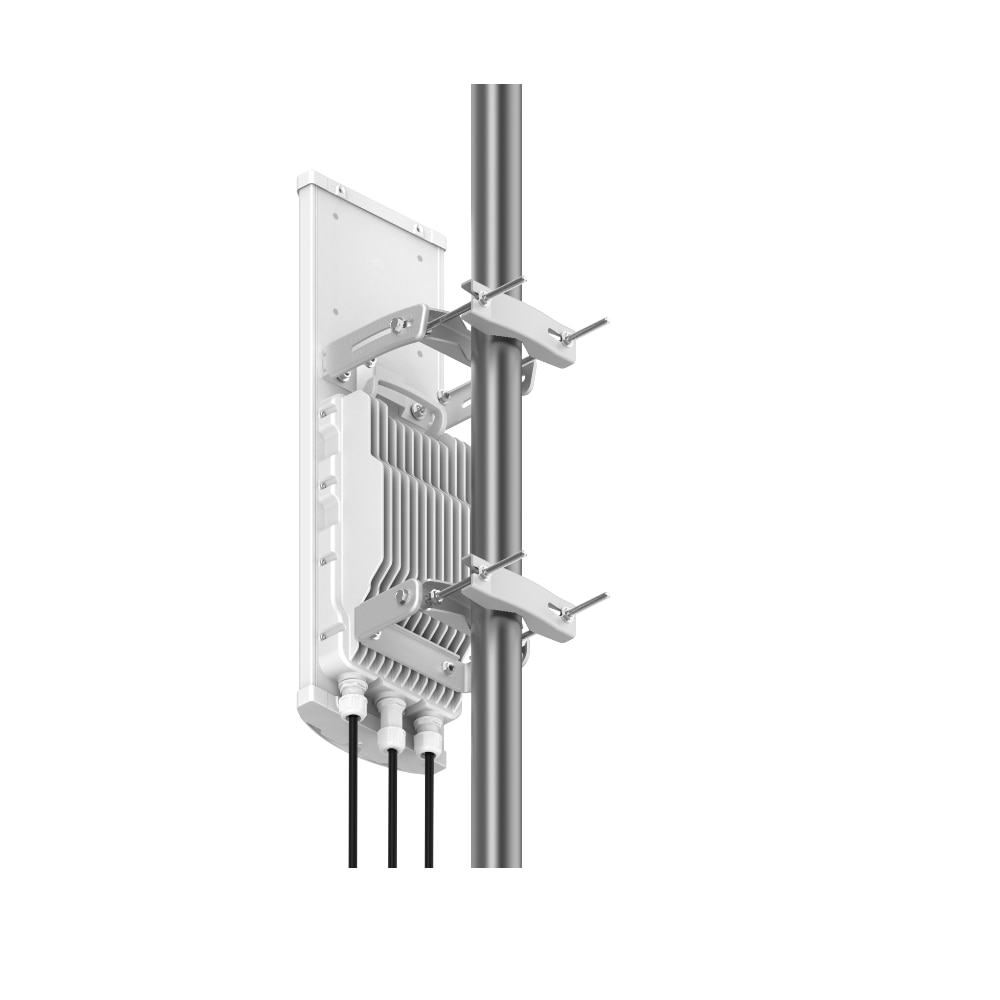

Cambium 6 GHz 450v 4x4 Integrated Access Point, 90 Degree - FCC
- SKU: C060045A402A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C060045A402A
6 GHz 450v 4x4 Integrated Access Point, 90 Degree - FCC
PMP 450v Access Point
Deliver higher performance to business and residential locations while extending the life of deployed PMP 450 gear. Reduce churn and remain competitive by offering enhanced service plans by providing more bandwidth. Broadband service providers seeking to increase capacity and service levels can use the PMP 450v to easily upgrade an existing PMP 450 network by leveraging the higher capacity of the 6 GHz spectrum.
Operates From 5.15 To 7.125 Ghz
Easily stock and maintain a single SKU, maintain existing 5 GHz deployment and expand into 6 GHz
Backward And Forward Compatible And Future Proof
Leverage existing platform investment and migrate gracefully to next generation
Ultra-Wide-Band Support (Up To 2X100 Mhz Channels)
Achieve a total capacity increase with more bandwidth to offer
Dual Sector Mode And Carrier Aggregation
Achieve flexibility in spectrum usage with two carriers on different bandwidths (e.g., when 5 GHz may be congested requiring smaller channels, and 6 GHz can utilize larger channels)
Specifications
Specifications
| Channel Spacing | Configurable on 2.5 MHz increments |
| Frequency Range | 5.150 GHz - 7.125 GHz |
| Channel Bandwidths | 5, 10, 15, 20, 30, 40, 50*, 80, 100*, 120*, 150*, 160*, 200* |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Performance Subscribers Per Sector | Up to 238 |
| ARQ | Yes |
| Maximum Deployment Range | Up to 40 miles (64 km) |
| Latency | 3-5 ms, typical |
| GPS Synchronization | Yes, via embedded GPS, or Cambium Sync |
| Quality of Service | Diffserve QoS |
| Integrated Sector Peak Gain | 17 dBi ± 1 dBi integrated 90/120° sector |
| 3 dB Beamwidth – Azimuth | ± 45° (± 60° @ 6dB roll-off) |
| 3 dB Beamwidth – Elevation | 5° with null fill |
| Electrical Downtilt | 2° |
| Polarization | Dual Linear, H+V |
| Front-to-Back Isolation | > 30 dB |
| Cross Polarization | 15 dB |
| Maximum Transmit Power | +28 dBm (MIMO, Combined H+V) for 5 GHz, +20 dBm for 6 GHz (may be limited by regulations) |
| Maximum EIRP | +45 dBm combined output in 5 GHz, +37 dBm in 6 GHz (may be limited by regulations) |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Antenna Connection | N/A - Integrated Sector antenna |
| Surge Suppression | EN 61000-4-5: 10x700 μs, 6 kV, EN 61000-4-2: ESD 8 kV contact / 15 kV air |
| Recommended external surge suppressor: Cambium Networks Model # C000000L033A | |
| Mean Time Between Failure | > 40 Years |
| Dust and Water Ingress Protection Rating | IP55 |
| Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 0-100% condensing |
| Weight | 6.3 kg (13.9 lbs), 9.1 kg (20 lbs) with bracket |
| Wind Survival | 200 kph (124 mph) |
| Vibration | NEMA TS2 Section 2.1.9 and Section 2.2.3 |
| Shock | NEMA TS2 Section 2.1.10 and Section 2.2.4 |
| External Icing | NEMA 250-2003 Section 5.6 |
| Dimensions (H x W x D) | 673 x 222 x 134 mm (26.5 x 8.75 x 5.3 in.) |
| Power Consumption | 45W Typical, 55W Max, Using Aux port PoE for another device will increase power draw |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License) |
| ISED Canada | 109W-0081 |
| FCC ID | Z8H89FT0081 |
| CE | EN 301 893 V2.1.1, EN 302 502 V2.1.1 |
