KP Performance 4.9 to 6 GHz, 60 Degree Horn Antenna, 13.8 dBi, 2-Port

(0)No Reviews yet
  • SKU: KP-5HA-60
US$‎152.94 US$‎160.99
105 in stock
College Station
3 In stock
University Park Illinois
102 In stock

Product Information

KP Performance KP-5HA-60

4.9 to 6 GHz, 60 Degree Horn Antenna, 13.8 dBi, 2-Port

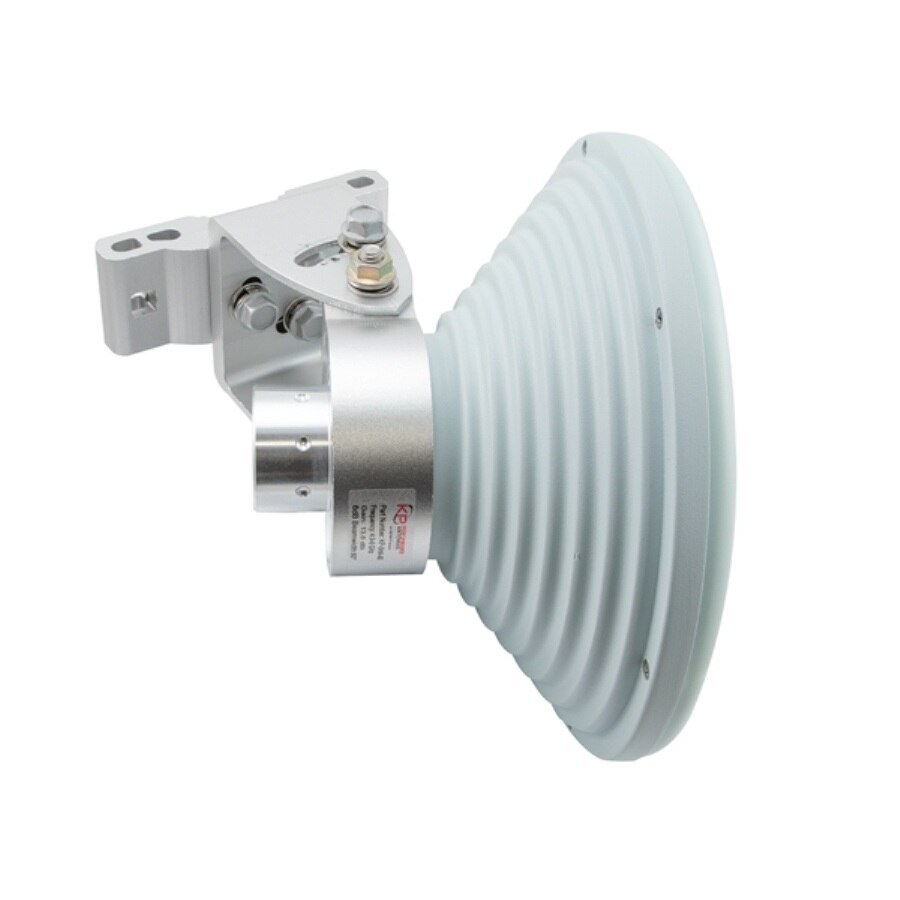

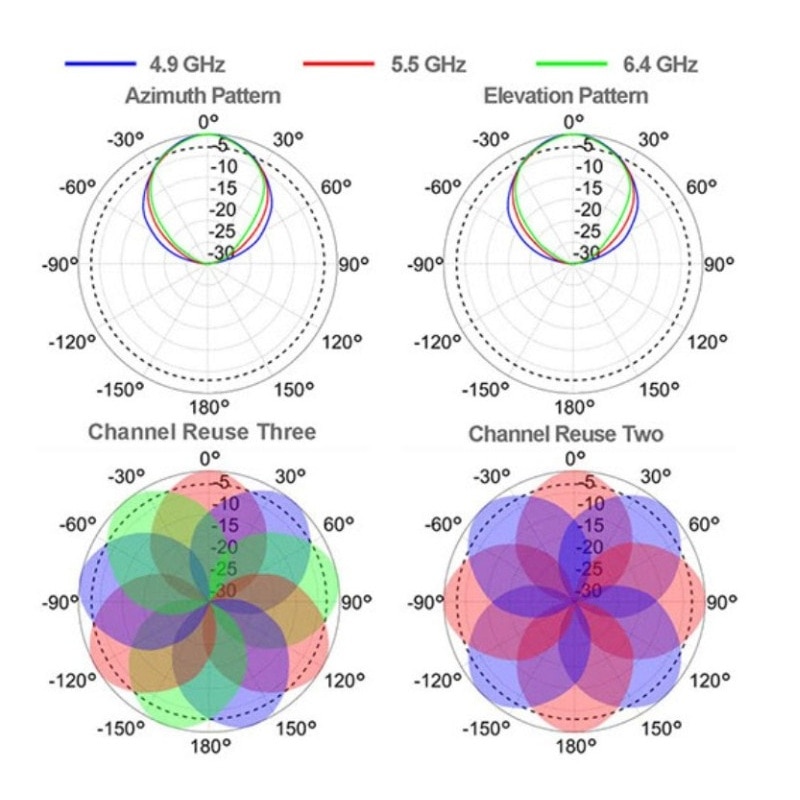

The KP-5HA-60 is a symmetrical high performance horn antenna with a 6 dB beamwidth of 60° and a stable gain of 13.8 dBi and over an ultra-wide bandwidth of 4.9 GHz to 6.4 GHz. The horn antenna’s symmetrical radiation patterns was optimized using advanced genetic algorithm techniques to have significantly reduced side lobes that rapidly drops below 30 dB outside the main beam and a minimum front-to-back of 35 dB. This highly suppressed side lobes and superior front to back allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments.

The KP-5HA-30 horn antenna’s compact 8” diameter conical form factor and highly focused radiation makes it ideal for high-density deployments and filling in coverage alongside wider-angle sector antennas. The polarization is adjustable between horizontal/vertical and ±45° slant, making the horn compatible with any 4.9 GHz to 6.4 GHz single or dual polarization 2 x 2 MIMO radio and eliminates the risk of link strength degradation due to polarization mismatch.

Rugged and weatherproof, the KP performances horn antenna provides a durable platform built for a broad range of environments and feature a heavy-duty UV-resistance plastic radome for all-weather operation. The powder coated, high-strength aluminum horn and mounting brackets is built to withstand wind speeds of up to 100mph and survive in corrosive environments with large swing in seasonal weather not impacting performance.


Features:

  • High-performance gain and patterns that are stable over a wide bandwidth
  • Interference mitigation with highly suppressed side-lobes and superior front-to-back that allows channel reuse
  • Over 25 dB cross polarization discrimination and port isolation for optimal MIMO performance
  • Ideal for high-density AP deployments with radio co-location due to compact size and highly focused radiation
  • Improved coverage near and far from the tower with equal elevation and azimuth beamwidths
  • Adjustable horizontal / vertical or ± 45° slant polarization that is compatible with all 5 GHz CPE radios
  • Quick-connect waveguide allows polarization to be adjusted and quick change of adapters without tools
  • Direct Connect radio-specific and dual polarized N-type connector adapters available
  • Fine azimuth- and elevation- tilt markings to simplify alignment Mountable on left or right side of the pole without flipping upside down

Applications:

  • Wireless MIMO LAN systems & IEEE 802.11n applications Point-to-multipoint (PtMP) requiring sectorial coverage
  • Supports public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz), and up to 6.4GHz for world-wide market
  • Mobile WiMAX Wireless Internet Provider "cell" sites
  • Gap coverage close to the tower
  • High-density deployments requiring frequency reuse to achieve high capacity and data rates
  • Valleys, mountains, mines, or regions with large elevation changes that need uniform coverage

Compatible Adapters:

  • KP-5PDA-N 2 x N-Type female connectors
  • KP-5PDA-C5C Mimosa® C5C™
  • KP-5PDA-USI5 Ubiquiti® PrismStation™ 5AC, IsoStation™ M5
  • KP-5PDA-URPG2 Ubiquiti® Prism™ 5AC and 5AC Gen 2, airFiber™ 5X and 5X HD
  • KP-5PDA-EPMP2000 Cambium® ePMP2000™
  • KP-5PDA-EPMP13L Cambium® ePMP1000™, Force 300CSM™ and ePMP3000L™

Specifications

Specifications KP-5HA-60

Frequency Range4.9 GHz to 6.4 GHz
Polarization TypeH/V | Slant(±45°)
Gain13.8 dBi
Horizontal/Vertical Beamwidth 3dB42°
Horizontal/Vertical Beamwidth 6dB60°
F/B Ratio35 dB
VSWR1.5 typ
Cross Polar Ratio25 dB
Port Isolation35 dB
Connector TypeQuick Connect Waveguide
Horn Dimensions
Dimension 7in L x 12 in W x 9 in H
Weight 5.0 lbs

Add-Ons

KP-5PDA-NKP Performance Dual N-Type Quick Connect Adapter for 5 GHz ProLine Parabolic and Horn Antennas
890 in stock
University Park Illinois
890 In stock
  • SKU: KP-5PDA-N
US$‎39.89 US$‎41.99
KP-5PDA-UIS5KP Performance Ubiquiti® PS-5AC, IS-5AC, IS-M5 Quick Connect Adapter for 5GHz ProLine Parabolic and Horn Antennas
772 in stock
College Station
17 In stock
University Park Illinois
755 In stock
  • SKU: KP-5PDA-UIS5
US$‎35.71 US$‎37.59
KP-5PDA-C5CKP Performance Mimosa® C5c Quick Connect Adapter for 5GHz ProLine Parabolic and Horn Antennas
49 in stock
University Park Illinois
49 In stock
  • SKU: KP-5PDA-C5C
US$‎35.05 US$‎36.89
KP-5PDA-EPMP2000KP Performance Cambium®: ePMP2000 Quick Connect Adapter for 5GHz ProLine Parabolic and Horn Antennas
10 in stock
College Station
10 In stock
  • SKU: KP-5PDA-EPMP2000
US$‎65.07 US$‎68.49
KP-5PDA-EPMP13LKP Performance Cambium® ePMP1000™, Force 300CSM™ and ePMP3000L™
509 in stock
University Park Illinois
509 In stock
  • SKU: KP-5PDA-EPMP13L
US$‎48.92 US$‎51.49
KP-5PDA-URPG2KP Performance Ubiquiti® Rocket Prism Gen 2 Quick Connect Adapter for 5GHz ProLine Parabolic and Horn Antennas
199 in stock
College Station
1 In stock
University Park Illinois
198 In stock
  • SKU: KP-5PDA-URPG2
US$‎60.79 US$‎63.99
