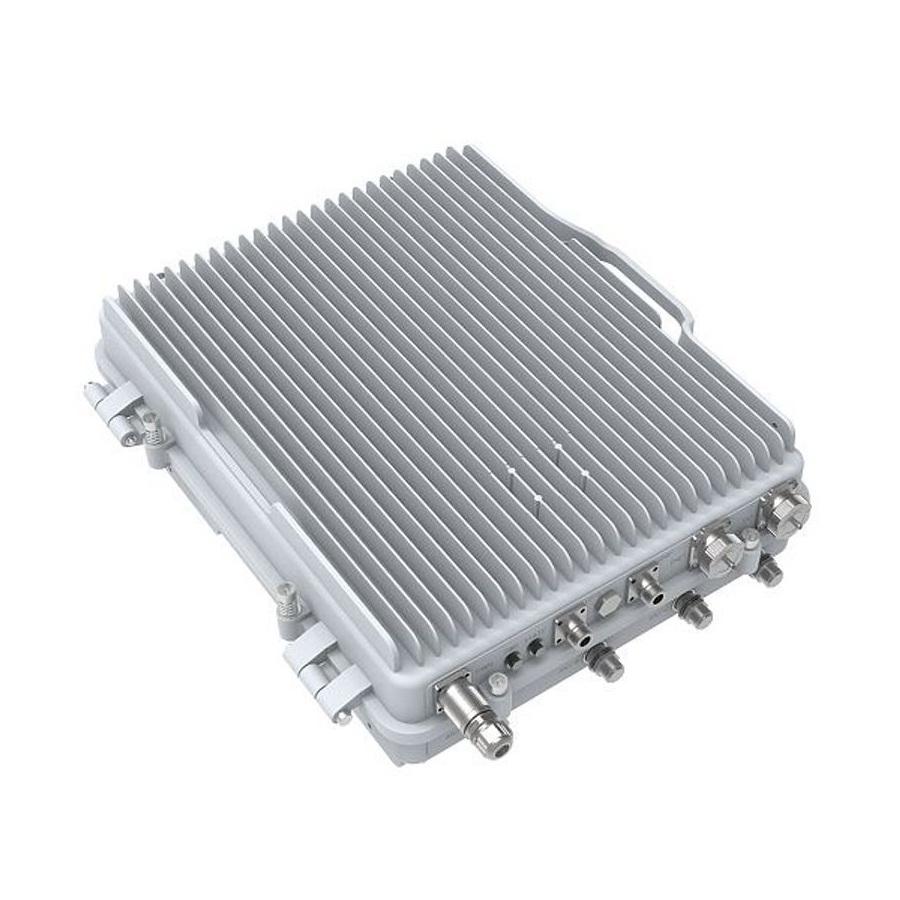

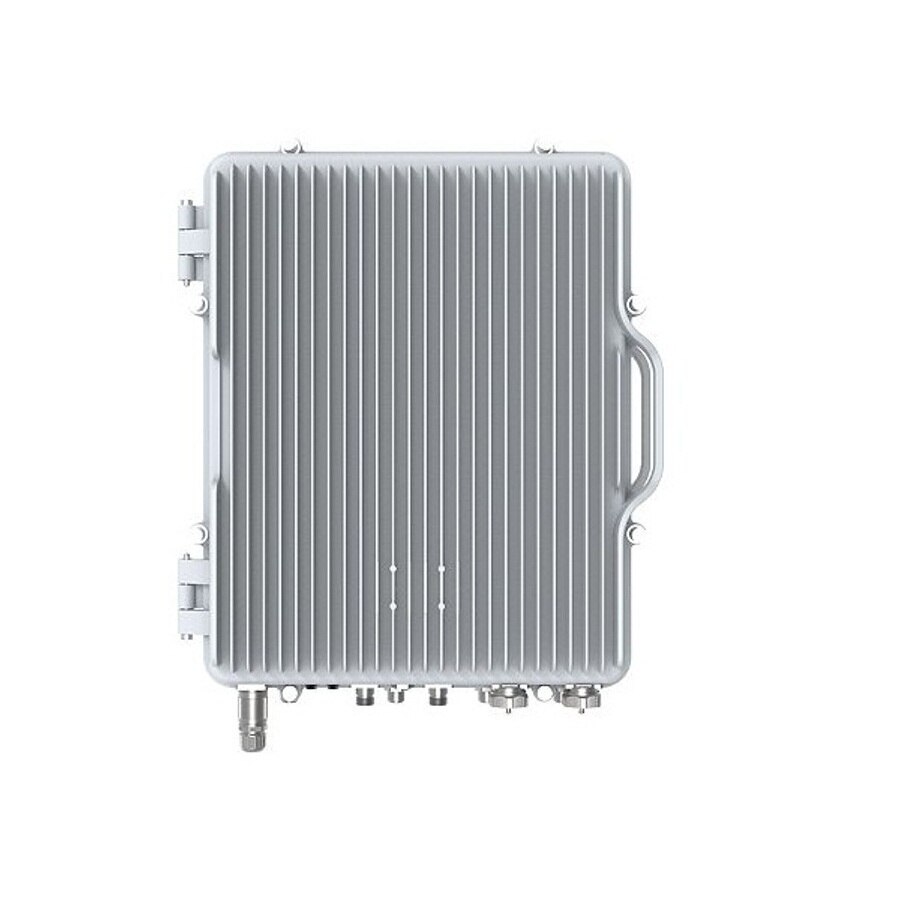

MikroTik Outdoor TDD-LTE dual carriers base station for bands 38 and 39
- SKU: P02003-B38B39-10W
$3,395.00 $3,500.00
+ $187.50 Tariff
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik RouterBOARD P02003-B38B39-10W
Intercell 10 B38 (2570-2620 MHz) + B39 (1880-1920 MHz) 2x GE 2x SFP TDD-LTE Dual-Carrier Base Station
The Intercell 10 B38+B39 is an outdoor TDD-LTE dual carriers base station with 2*(2*10W) output power (each carrier supports 2x2 MIMO with 10W output each RF channel ). The unit is compact, light weight, and easy to deploy. The Intercell 10 B38+B39 offers excellent performance, helping operators provide better coverage and higher capacity with minimal effort.
Features:
- Standard TDD bands 38 and 39
- Peak data rate of each carrier (20 MHz) -DL 140Mbps (256QAM,SF2) -UL 30Mbps (64QAM,SF1)
- Peak data rate of carrier aggregation (20 MHz) -DL 280Mbps (256QAM,SF2) -UL 60Mbps (64QAM,SF1)
- Maximum 2 * 192 RRC connected users and 2 * 96 active users
- 5/10/15/20 MHz operation bandwidth
- All IP based backhaul, many IP backhaul methods can be used, including RJ45 Ethernet, SFP
- Plug-and-play with SON features, including self-configuration/self-optimization/self-healing
- High transmission power to extend NLOS coverage, low power consumption to save OPEX.
Specifications
Specifications P02003-B38B39-10W
| Operating Temperature | -40ºC to +55ºC |
| Storage Temperature | -40ºC to +75ºC |
| Operating Humidity | 0% to 95% |
| IP Rating | IP66 |
| Power Interface Protection | GB/T 17626.5, IEC61000-4-5 |
| Hardware | |
| LTE Mode | TDD |
| Frequency Bands | B38: 2570 MHz - 2620 MHz / B39: 1880 MHz - 1920 MHz |
| Channel Bandwidth | 5/10/15/20 MHz |
| DPD Support | Support |
| Frequency Exactitude | ±0.05 ppm (OCXO) |
| Synchronization | GPS, 1588v2, Network Listening |
| Backhaul | 1 RJ45 Ethernet (10/100/1000 Auto-negotiating) and 1 optical SFP |
| Number of RF Ports | 6 RF(4*ANT SNF GPS/BD) |
| Connector Characteristic Impedance | 50Ω |
| In- Band Input Return Loss | ≥ 15dB |
| Max Output Power | 40 ± 1dBm / antenna |
| Target Rx sensitivity | ≤ -104dBm (25RBs, QPSK 1/3 as defined in 3GPP TS 36.141) |
| Adjacent Channel Leakage Ratio (ACLR) | < - 45dBc |
| Max Tx EVM(6 4 QAM | ) < 4.5% |
| Volume | < 22.2L |
| Weight Size | < 25 kg 19.9" L x 15.74" W x 5.47" H |
| Installation | Pole, Wall mounted |
| Power Supply Type (AC or DC) | - 48V DC |
| Power Consumption | < 200 W |
| Software | |
| LTE Standard | 3GPP Release 12 |
| Peak Data Rate (2 0 MHz BW) each carrier | DL 140Mbps (256QAM,SF2) / UL 30Mbps (64QAM,SF1) |
| Peak Data Rate (2 0 MHz BW) Carrier Aggregation | DL 280Mbps (256QAM,SF2) / UL 60Mbps (64QAM,SF1 |
| Modulation | DL:QPSK,16QAM,64QAM,256QAM / UL: QPSK,16QAM,64QAM |
| Max User Number | 2 * 192 RRC connected users / 2 * 96 active users |
| Voice Solution | VoLTE, eSRVCC, CSFB |
| SON Features | Self-configuration: Frequency/PCI/PRACH selection,ANR, TPM Self-optimization: MRO, MLB,TPM Self-healing |
| Network Management Interface | TR069 |
| Traffic Offload | Local IP access (LIPA) |
| RAN Sharing | Supported |
| QoS | 3GPP standard QCI |
| S1 Congestion Resolution | Supported |
| Maintenance | Local or remote maintenance / Configuration management / Performance managemen / Fault management / Software upgrade / Trace/Logging |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
