Mikrotik Triple chain 5GHz integrated 802.11ac AP/Backbone/CPE with an additional miniPCI-e slot
|CPU nominal frequency||720 MHz|
|CPU core count||1|
|Size of RAM||128 MB|
|10/100/1000 Ethernet ports||1|
|Wireless chip model||QCA9880|
|Number of USB ports||1|
|Supported input voltage||8 V - 30 V|
|Max Power consumption||23W|
|USB slot type||USB type A|
|Storage size||128 MB|
MikroTik NetMetal5 RB922UAGS-5HPacT-NM (International Version)
By supporting the 802.11ac wireless standard, the NetMETAL allows to use datarates of up to 1.3Gbps (for the T models), 256-QAM modulation and 20/40/80MHz channels. With it’s huge speed improvements, 802.11ac opens up new possibilities.

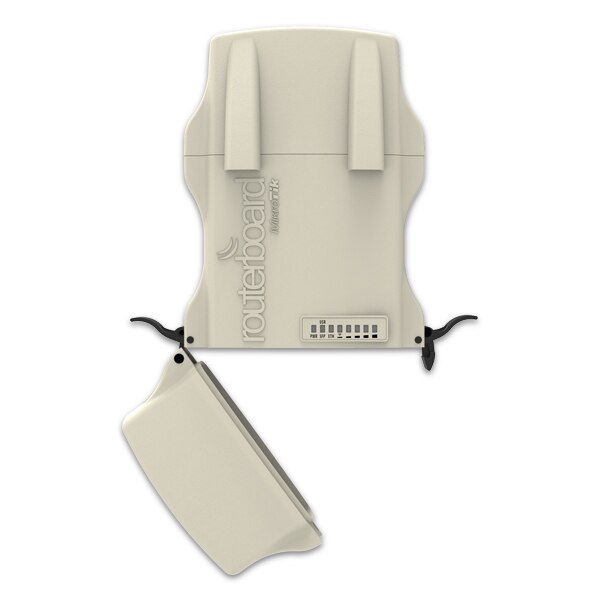

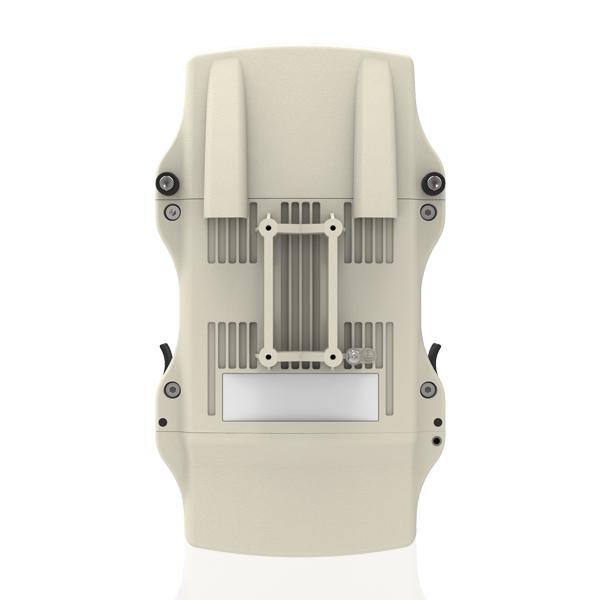

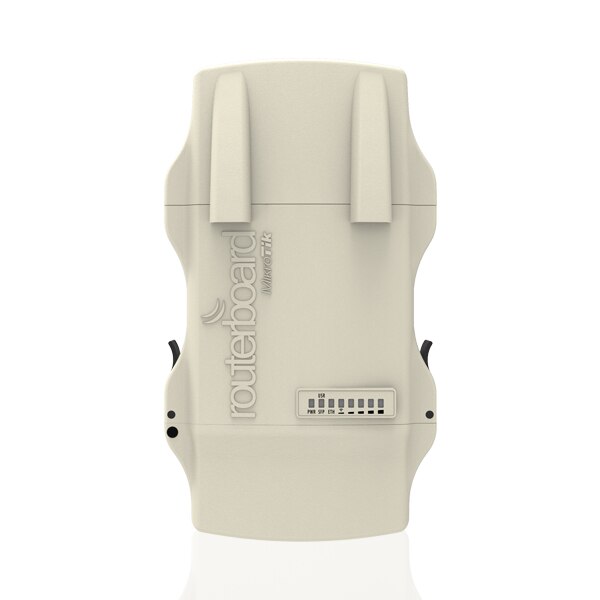

The NetMETAL is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.
The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
RB922UAGS-5HPacT-NM version is equipped with miniPCI-express slot and SIM slot for 3G/4G device or additional wireless card, High power 3x3 Tripple Chain 802.11ac wireless and three RP-SMA connectors for external antennas.
RB922 models have miniPCI-e slot for another wireless card.
- A powerful processor 720MHz CPU
- 128MB DDR2 RAM memory
- One Gigabit port with Auto-MDI/X
- 802.11ac radio module
- SFP cage
- USB 2.0 port
- Consumption: 23W
- Three (3) RP-SMA connectors for external antenna.
- MikroTik RouterOS, Level4 license, free product lifetime upgrades
