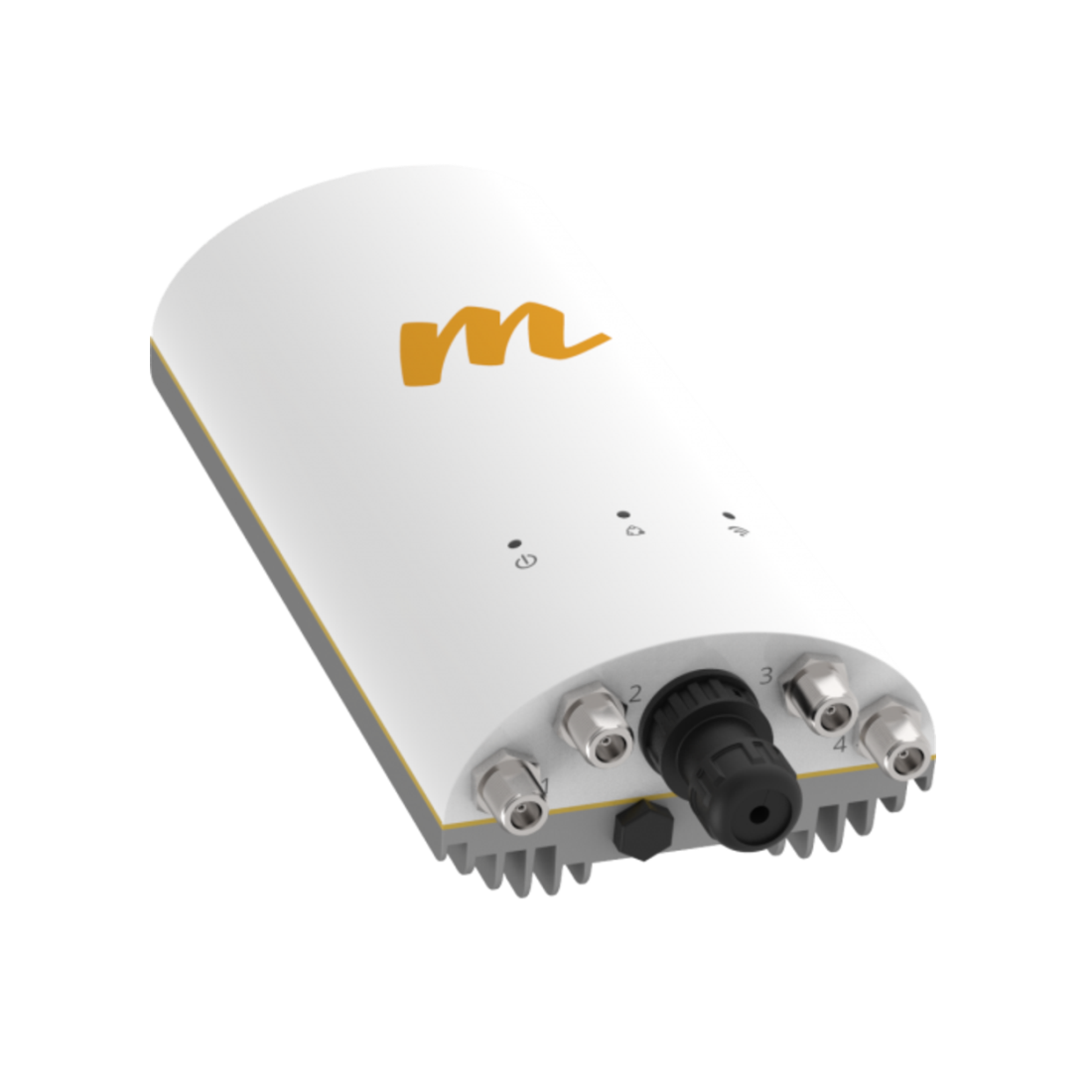

Mimosa Networks A5C 4.9-6.4 GHz Multipoint Connectorized Access Point
Mimosa Networks A5C
SUPER FOR SECTORS
With the fastest client speeds, access point capacity are combined with local and network wide spectrum reuse, the Mimosa A5C delivers the highest possible scale for any unlicensed fixed wireless network.
- Municipal and Rural Licensed Public Safety multipoint (4.9 GHz)
- Access Point Collocation (GPS Sync)
- Long range pole and tower multipoint
FIBER SPEED ACCESS AT A FRACTION OF THE COST
With client speeds capable of 500 Mbps+, and access point capacity up to 1.5 Gbps delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.
INCREASED CAPACITY AT EACH SITE
With integrated high precision GPS Sync technology, new A5c sectors can easily be added at existing deployed Mimosa A5 and B5 site and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices need to be installed "back-to-back" on the same tower or pole.
NETWORK SCALABILITY PERFECTED
Unique integrated high precision GPS Sync* technology in each Mimosa A5c allows every deployed device to be collaboratively synchronized across the network. This allows easy channel reuse to save valuable spectrum network wide, and together with the Mimosa Cloud is incredibly simple to deploy and optimize network spectrum use and performance across all your deployed devices.
ULTRA CAPACITY TDMA
Time Division Multiplexed Access techniques have proven to provide significant improvements when scaling the number of clients, versus Carrier Sensing approaches used in the Wi-Fi technologies. When further optimized by dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction, and allocate upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.
MASSIVE SECTOR CAPACITY
A5c is the first outdoor 4x4:4 solution leveraging advanced antenna beamforming and Multi-User MIMO technology. With 4 integrated collaborative antennas, the A5c creates separate "beamforms" to target each client uniquely. Meanwhile a second unique beamform can target a second client simultaneously, getting twice the performance out of the channel.
WORKING ABOVE THE NOISE
Advanced Auto-Gain Control (AGC) techniques automatically squelch out underlying interference with only 10 dB operating margin required to deliver incredible client performance.
The unique compact X4 (4 antenna single A5c) and X8 (8 antenna dual A5c) are our suggested from KP Performance are engineered specifically for Mimosa's MIMO technology.
Carrier grade IP67 design allows the A5c to withstand the harshest of environmental conditions.
ADD SUBSCRIBERS WITH EASE
Install, aim and go! Our multipoint solution is designed to instantly securely add C5 client devices to any Mimosa A5c on your network automatically with 1-click authentication. We've eliminated manual installation and pre-provisioning complexity, letting you focus on adding subscribers quickly.
|Max Throughput||Up to 1.0 Gbps IP (1.7 Gbps PHY)|
|Client Capacity||100 Clients|
|Low Latency||8 ms|
|Wireless Protocols||Wi-Fi Interop Mimosa GPS Sync (TDMA)**|
|MIMO & Modulation||4x4:4 MIMO OFDM up to 256QAM|
|Bandwidth*||20/40/80 MHz channels Tunable in 5 MHz increments for GPS Sync Tunable to standard WiFi Channels for WiFi Interop|
|Frequency Range||GPS Sync: 4900-6400 MHz WiFi Interop: 5170-5835 MHz Restricted by country of operation (*new* US/FCC 5600-5650 support)|
|Max Output Power||30 dBm|
|Sensitivity ( MCS 0 )||-87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz|
|Max Powe Consumptionr||25 W|
|System Power Method||802.3at compliant|
|System Lightning & ESD Protection||6 kV|
|PoE Power Supply||Passive PoE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection|
|Dimensions||Height: 300 mm (11.81") Width: 151 mm (12.40") Depth: 85 mm (3.35")|
|Weight||1.75 kg (3.86 lbs)|
|Enclosure Characteristics||Outdoor UV-stabilized engineered polymer with integrated mounting panel|
|Connector Type||Female Type N (x4)|
|Mounting||Dual pole strap mount and slip on mount for comparable antennas|
|Outdoor Ingress Protection Rating||IP67|
|Operating Temperature||-40°C to +55°C (-40°F to 131°F)|
|Operating Humidity||5 to 100% condensing|
|Operating Altitude||4420 m (14500') maximum|
|Shock & Vibration||ETS 300-019-2-4 class 4M5|
|Multi-User MIMO**||Device leverages beamforming to transmit to multiple clients simultaneously|
|Synchronization**||GPS + GLONASS allows for network-wide sync and interference avoidance|
|Collocation**||1PPS GPS Tx/Rx synchronization for same tower collocation and channel reuse|
|Network Processing||Advanced AP control for capacity and subscriber management|
|Management Services||Mimosa cloud monitoring and management SNMPv2** & Syslog legacy monitoring HTTPS, HTML 5-based Web UI, 2.4 GHz 802.11b/g/n radio for local management access|
|Smart Spectrum Management||Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use|
|Security||WPA2 + Mimosa 802.1x RADIUS Management VLAN support|
|QoS||Supports 4 pre-configured QoS levels|
|GPS Location||GNSS-1 (GPS + GLONASS)|
|Traffic Shaping||Per CPE UL/DL commit and maximum rate shaping|
|Access Control List||Permit, Deny, and Remark Layer 2 and Layer 3 traffic flows|
Regulatory + Compliance
|Approvals*||FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502|
|Safety||UL/EC/EN/ 60950-1 + CSA-22.2|
