TP-Link DeltaStream 8-port Pizza-Box XGS-PON&GPON Combo Optical Line Terminal with full L2 and advanced L3 features
- SKU: DS-P7500-08
- Manufacturer: TP-Link
- Data Sheet: Download
Product Information

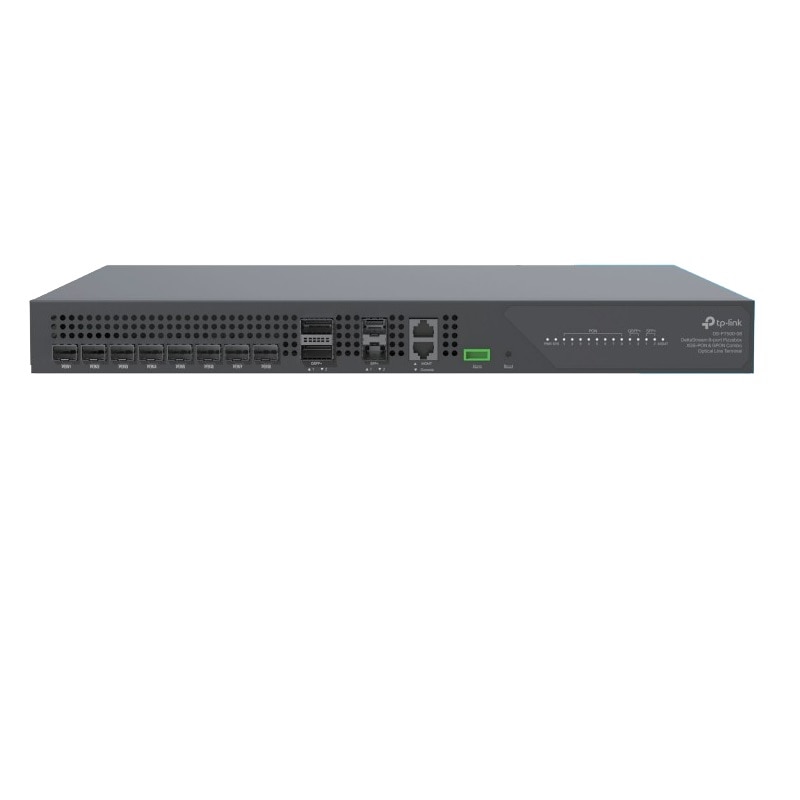

TP-Link DS-P7500-08
DeltaStream 8-port Pizza-Box XGS-PON&GPON Combo Optical Line Terminal with full L2 and advanced L3 features
The DS-P7500-08 is a DeltaStream 8-port Pizza-Box XGS-PON& GPON Combo Optical Line Terminal with full L2 and advanced L3 features designed to meet a wide range of business needs. The pizza-box OLT supports a higher number of ONUs and its dual power supply redundancy design further improves the stability of the OLT network.
Centralized Management
Makes maintenance easier with remote batch configuration and updates via DeltaStream PON Management System(DPMS), SNMP, CLI, and WEB UI.
High Split Ratio for High Capacity
Support 1:256 (XGS-PON) & 1:128 (GPON) splitting ratio for every port - up to 3072 ONTs by one device.
Redundant Dual Power Supplies
Carrier-class reliability with redundant dual power supplies supporting AC, DC or mixed power input.
Compact Size for Flexible Deployment
19 inch rack mount size is flexible and easy to deploy, suitable for different application scenarios.
Specifications
Specifications
| Interface | 2× 40 Gbps QSFP+ Uplink Port, 2× 10 Gbps SFP+ Uplink Port, 8× XGS-PON&GPON Combo Port (SFP+ Slot), 1× RJ45 Console Port, 1× RJ45 MGMT Port, 1× Alarm Port |
| Power Supply | Dual Power Supply, 2 AC, 2DC or AC+DC, AC: 100V~240V, 50/60Hz, DC: -38.4V~-72V |
| Dimensions (W * D * H) | 17.3 ×13.0 × 1.7 in(440 ×330 ×44 mm) |
| Weight | 21lbs |
| Button | 1× RESET button |
| Power Consumption | Max. 103W |
| Combo PON Port Attribute | |
| Max. Splitting Ratio | GPON: 1:128 XGS-PON: 1:256 |
| Data Rate | GPON: Downstream: 2.5Gbps, Upstream: 1.25Gbps XGS-PON: Downstream: 9.953Gbps, Upstream: 9.953Gbps |
| Wave Length | GPON: Tx: 1490nm, Rx: 1310nm XGS-PON: Tx: 1577nm, Rx: 1270nm |
| Fiber Type | 9/125μm SMF (Single Mode Fiber) |
| Transmission Distance | 20km |
| FEC | Support FEC |
| Interface Type | SC/UPC |
| Optical Module Specifications | Type: XGS-PON& GPON Combo Optical Module, Class C+ GPON: TX Power: 3-7dBm, RX Sensitivity: -32dBm XGS-PON: TX Power: 5-8dBm, RX Sensitivity: -29dBm Minimum Overload: GPON: -12dBm, XGS-PON: -8dBm Extinction Ratio: GPON: 8.2dB, XGS-PON: 8.2dB |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| Routing Static Routing Mulitcast | IGMP Snooping/MLD Snooping |
| DHCP | DHCP Server, DHCP Relay |
| Security | ACL |
| ONU Security | Rouge ONU Detection and Isolation, Uplink and Downlink Data Encryption |
| QoS | IEEE 802.1p/DSCP QoS Voice VLAN Auto VoIP |
| Centralized Management | Large-Scale Devices Management, OLT Batch Configure, Upgrade, Reboot, Multi-Site Management, Intelligent Network Monitoring, Real-time Network Overview |
| Certification | CE,FCC |
| Environment | Operating Temperature: 0°C~50°C (32°F ~122°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
