Tycon Power 9-36VDC IN 24VDC OUT, 19W DC to DC Converter
- SKU: TP-DCDC-1224
Product Information
Tycon Power TP-DCDC-1224
9-36VDC IN 24VDC OUT, 19W DC to DC Converter

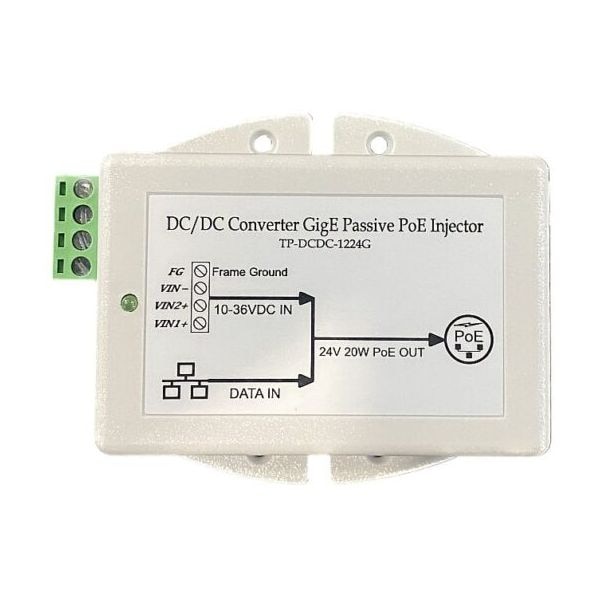

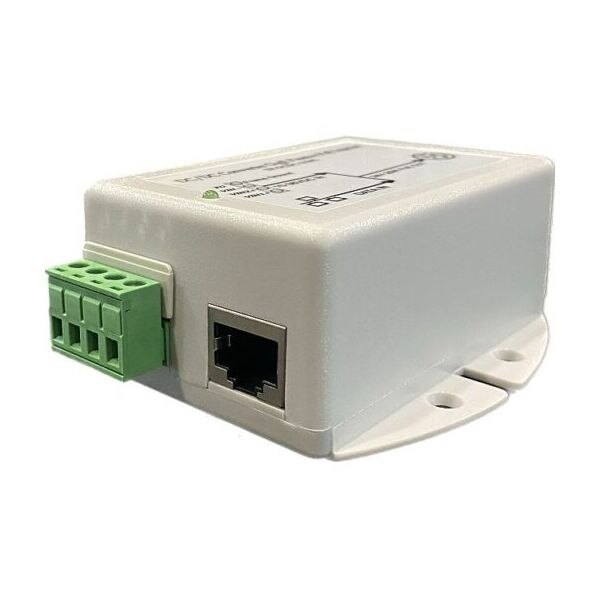

The DC to DC Converter with PoE Injector, TP-DCDC-1224, offered by Tycon Power® is a cost-effective and highly reliable DC to DC Converter solution for those requiring 24VDC Power over Ethernet (PoE) voltage from a 12V or 24V battery system. This unit features an integrated PoE injector that applies 24VDC to the CAT5/6 Ethernet cable, ensuring a stable and regulated 24VDC output from an input voltage range of 9VDC to 36VDC. The TP-DCDC-1224 is designed with one common (-) and two (+) inputs, allowing for the connection of two power sources, such as a primary and a backup power source, to ensure uninterrupted operation.

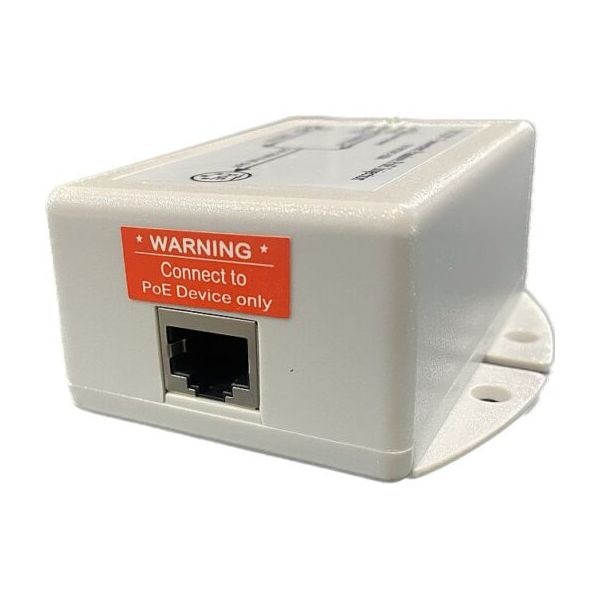

The unit accepts data-in through a shielded RJ45 jack and provides data-out and PoE power through the shielded RJ45 output jack. It supplies power on the unused Ethernet pins 4,5(V+) and 7,8(V-), making it compatible with various PoE devices. For applications requiring the IEEE 802.3af handshake, an IEEE 802.3af compliant model is available.
The injector is equipped with multiple protection features, including surge protection, short circuit protection, and overload protection, safeguarding your equipment and ensuring longevity. The unit has a power output capacity of up to 24W, making it suitable for a wide range of applications. Additionally, the TP-DCDC-1224 is DIN rail mountable using DIN Rail adaptors (pn: DIN-ClipKit-UNI), providing flexibility and ease of installation in industrial environments.
Whether you need to power remote systems or industrial applications, the TP-DCDC-1224 offers a reliable and efficient solution for your power needs.
Features:
- Input Voltage 10-36VDC; Output 24VDC Passive
- Dual Inputs for connecting 2 power sources
- Integrated 10/100MB POE Inserter
- High Power up to 20W
- Short Circuit, Over Current and Reverse/Over Voltage Protection
- High Temperature Operation
- Compact size – Maximize Available Space
- I.T.E. Power Supply
Applications:
- 12V / 24V Battery Systems
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
Specifications
Specifications TP-DCDC-1224
| DC Input Voltage | 9VDC – 36VDC |
| DC Input Connector | Removeable Screw Type Compression Wire Terminal (12 AWG Max) |
| DC Output Voltage (+/-2.5%) | 24V (Passive) |
| Data in & Data/POE Output Connector | RJ45 (Shielded) |
| Output Current (max) | 0.84A |
| Output Power (max) | 20W |
| Self Consumption Power | 1W |
| Efficiency (min) | 0.75 |
| Line Regulation | 0.01 |
| Load Regulation | 0.05 |
| Ripple | 0.01 |
| Noise | 0.01 |
| EMC Standards | FCC Part 15 Sub B Class A, CE 55032, 55035 |
| Safety Standards | EN/IEC 60950 |
| Operating Temperature | -30 to +60°C (-22 to +140°F) |
| Operating Humidity (RH) | 5% - 90% |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| MTBF (Mean Time Between Failure) | 166,000 Hours |
| Dimensions (LxWxH) | 85 x 76 x 36mm (3.4 x 3 x 1.4”) |
| Weight | 134g (4.7oz) |
| Warranty | 3 Years |
