Ubiquiti EdgeSwitch 16-Port 10G Managed Aggregation Switch

(0)No Reviews yet
  • SKU: ES-16-XG
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick User Guide:Download

Out of Stock

Call for Availability

Product Information

Ubiquiti ES-16-XG

Ubiquiti EdgeSwitch 16-Port 10G Managed Aggregation Switch

The Ubiquiti ES-16-XG EdgeSwitch 16-Port Layer 2 Managed 10-Gigabit SFP+ Switch is a fully managed switch that enhances network capacity and provides high-bandwidth services to growing networks. The Ubiquiti ES-16-XG EdgeSwitch offers an extensive suite of advanced layer 2 switching features and also provides layer 3 routing capability. The Ubiquiti ES-16-XG EdgeSwitch offers maximum performance and low latency as an aggregation switch.

10G High-Capacity Links

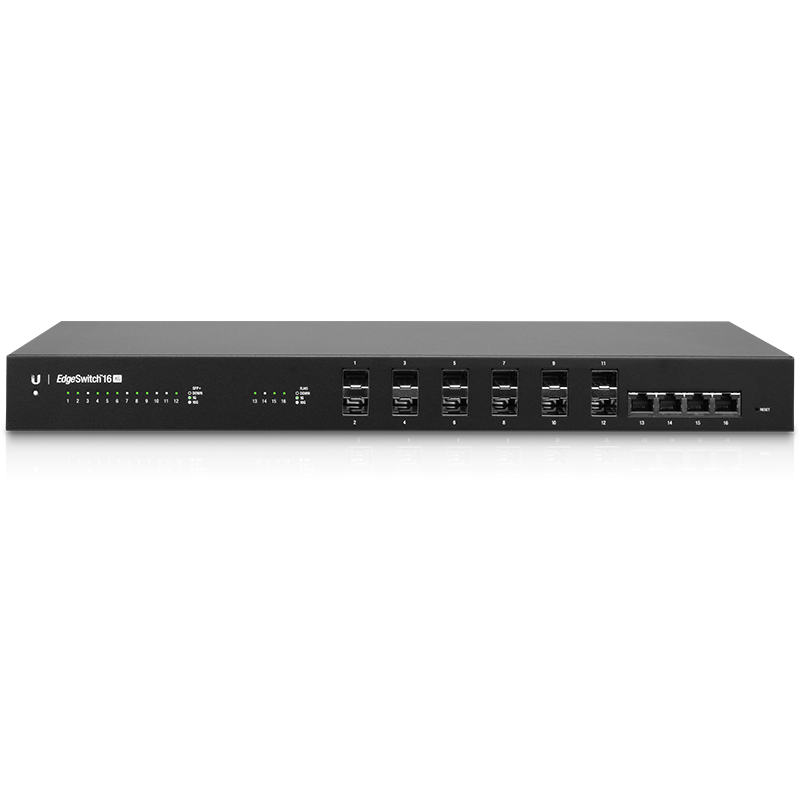

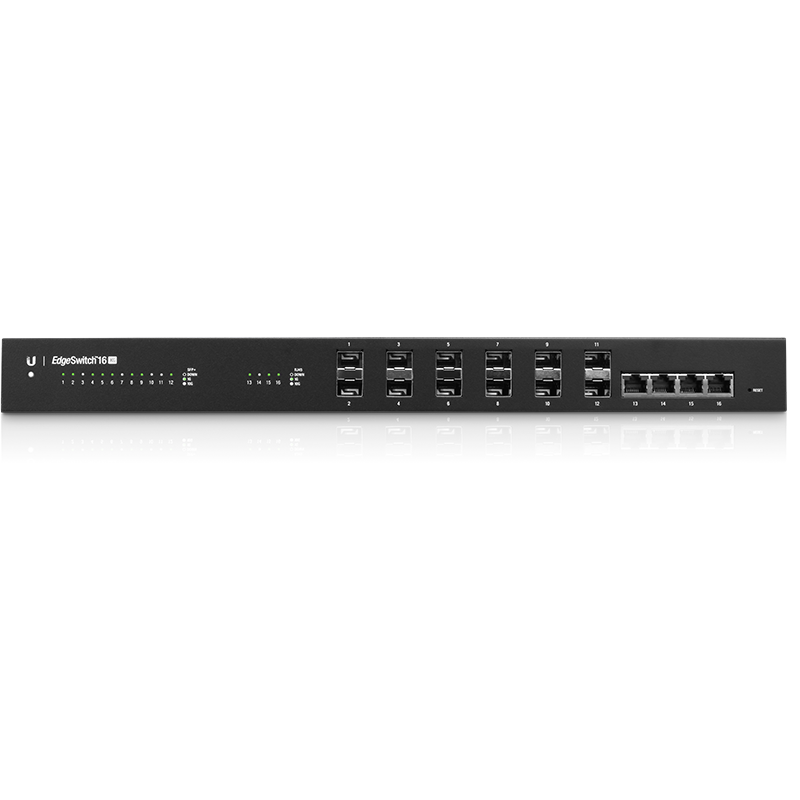

The EdgeSwitch features 12 SFP+ ports and four RJ45 10GBASE-T ports to efficiently deliver and aggregate data at 10G speeds.

Powerful Switching Performance

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch supports up to 160 Gbps.

Advanced Enterprise Switching

The EdgeSwitch uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.


Specifications ES-16-XG

Dimensions443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Rack-Mount Brackets Included
Rack-Mount Brackets Excluded

2.71 kg (5.97 lb)
2.62 kg (5.78 lb)
Enclosure CharacteristicsSGCC Steel
Total Non-Blocking Throughput160 Gbps
Switching Capacity 140 Gbps320 Gbps
Forwarding Rate320 Gbps
Max. AC Power Consumption36W (Excludes SFP/SFP+ Modules)
Power Method AC
100-240VAC/50-60 Hz, Universal Input
Power Method DCDC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Supported Voltage Range100 to 240VAC, 25 to 16VDC
Power SupplyAC/DC, Internal, 56W DC
LEDs Per Data PortSpeed/Link/Activity
Networking Interfaces(12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports

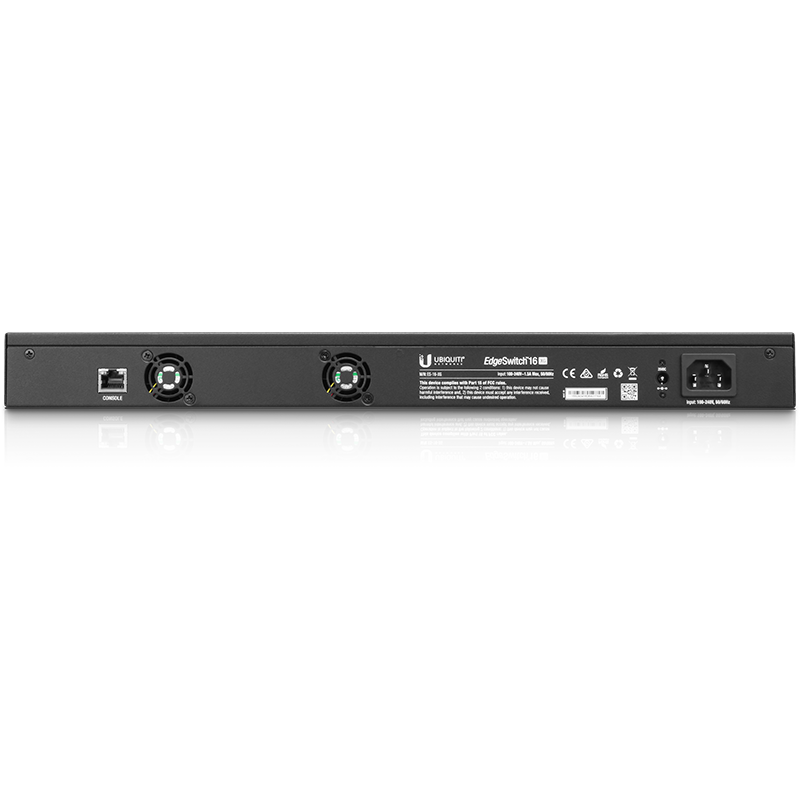

Management Interface(1) RJ45 Serial Port, Ethernet In/Out Band
CertificationsCE, FCC, IC
RackmountYes, 1U High
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity5 to 95% Noncondensing
Shock and VibrationETSI300-019-1.4 Standard
