Cambium ePMP 4500L 5 GHz 2x2 Access Point Radio (FCC) (US cord)
- SKU: C058940A162A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C058940A162A
ePMP 4500L 5 GHz 2x2 Access Point Radio (FCC) (US cord)

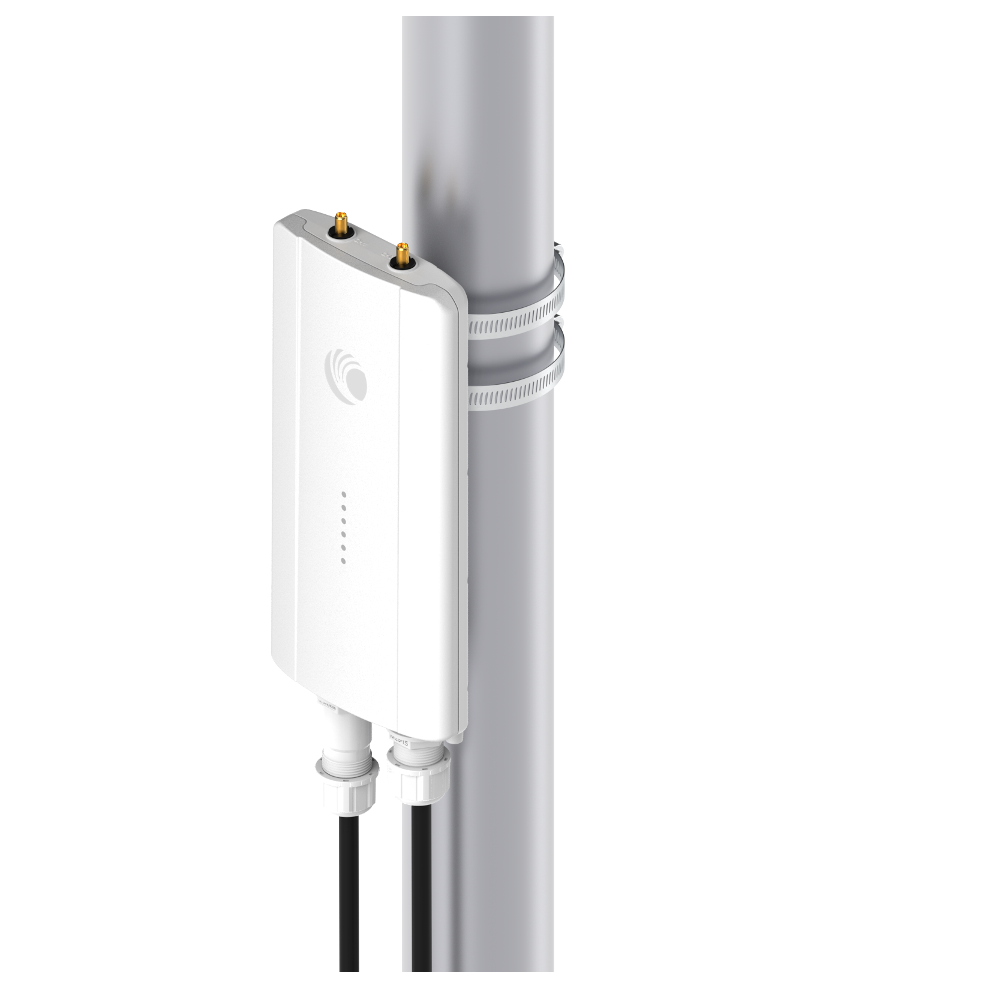

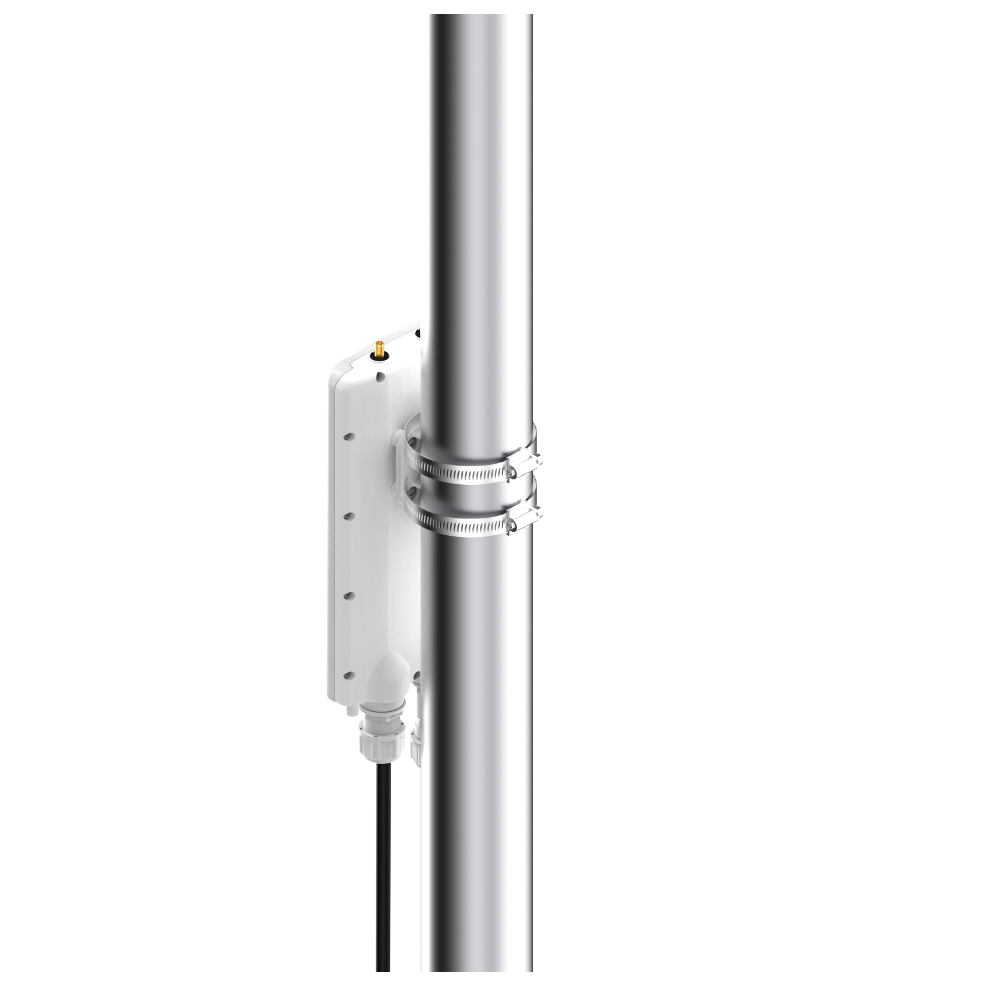

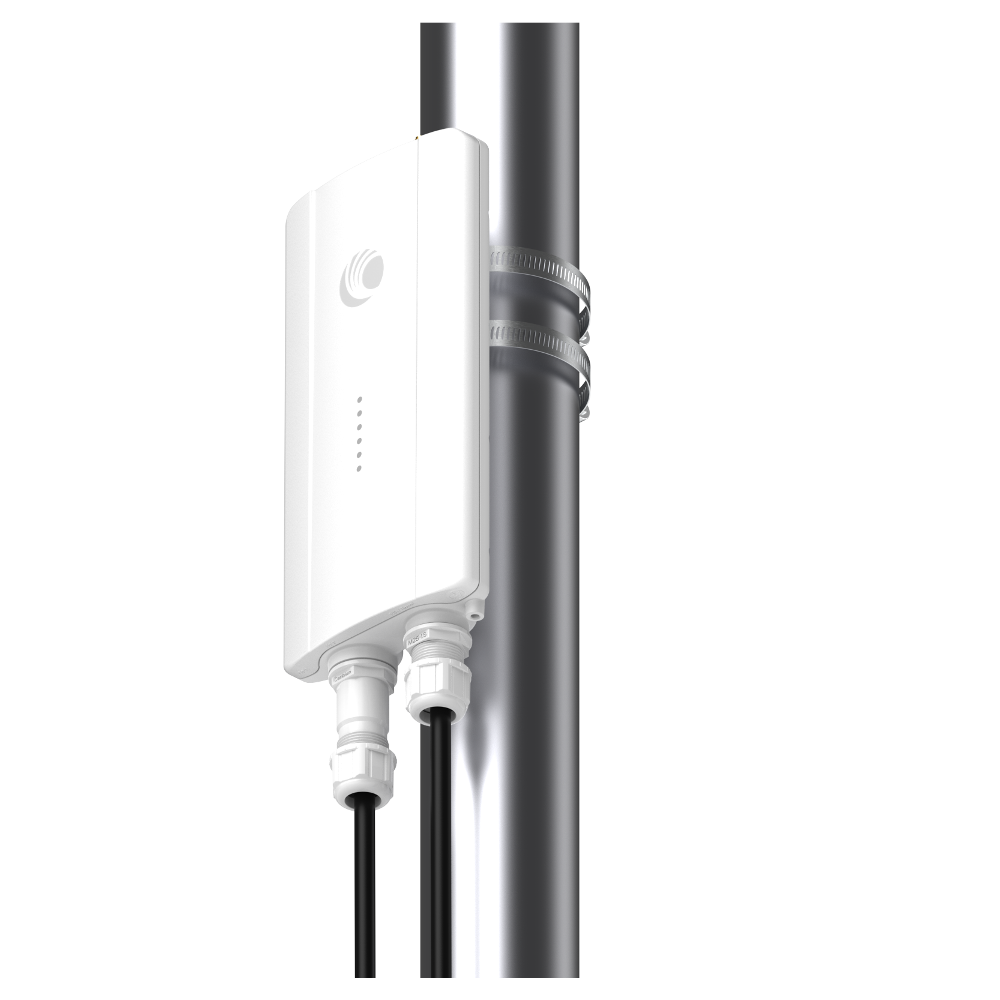

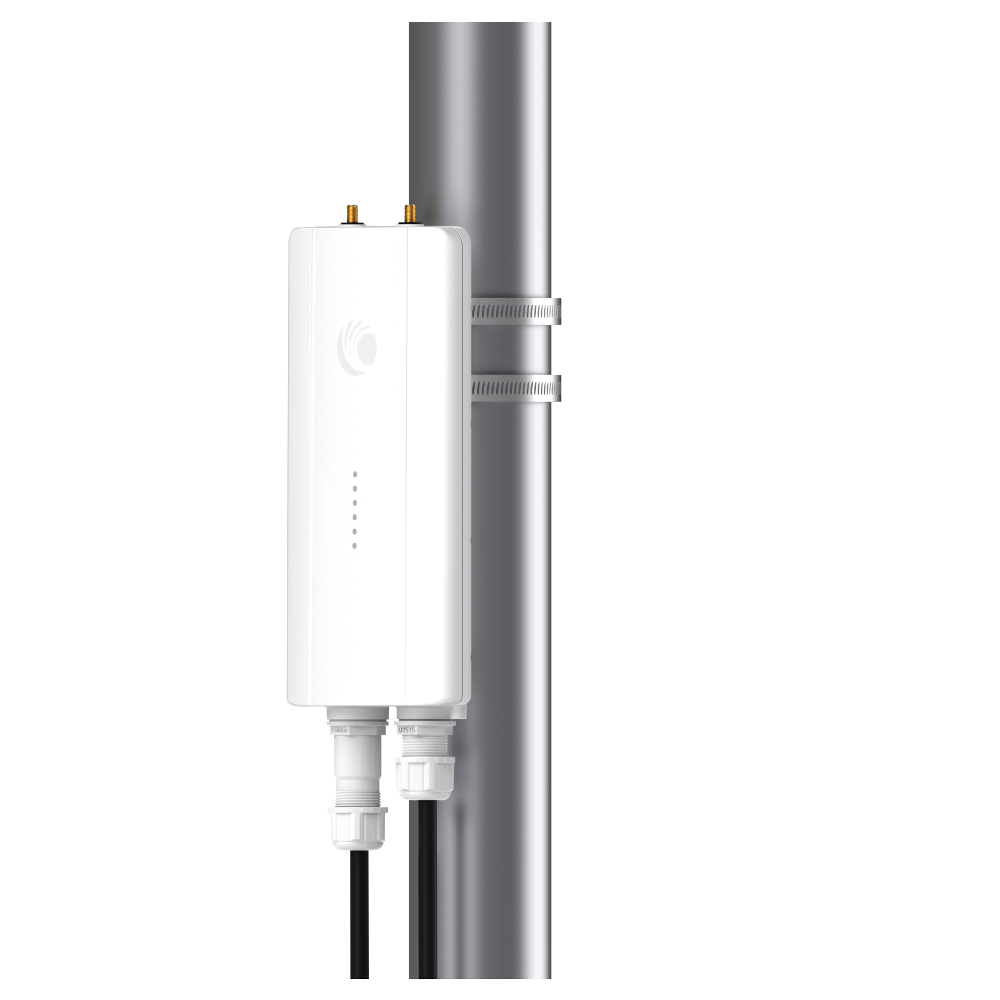

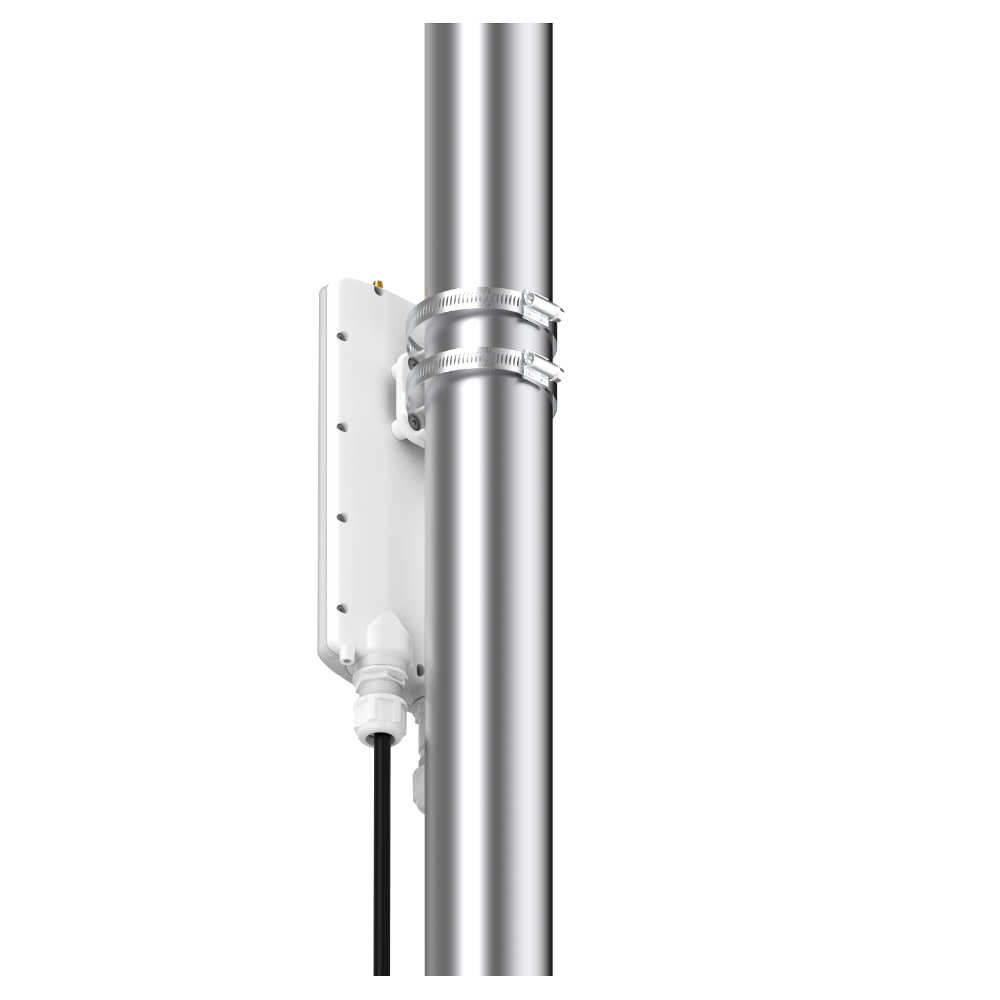

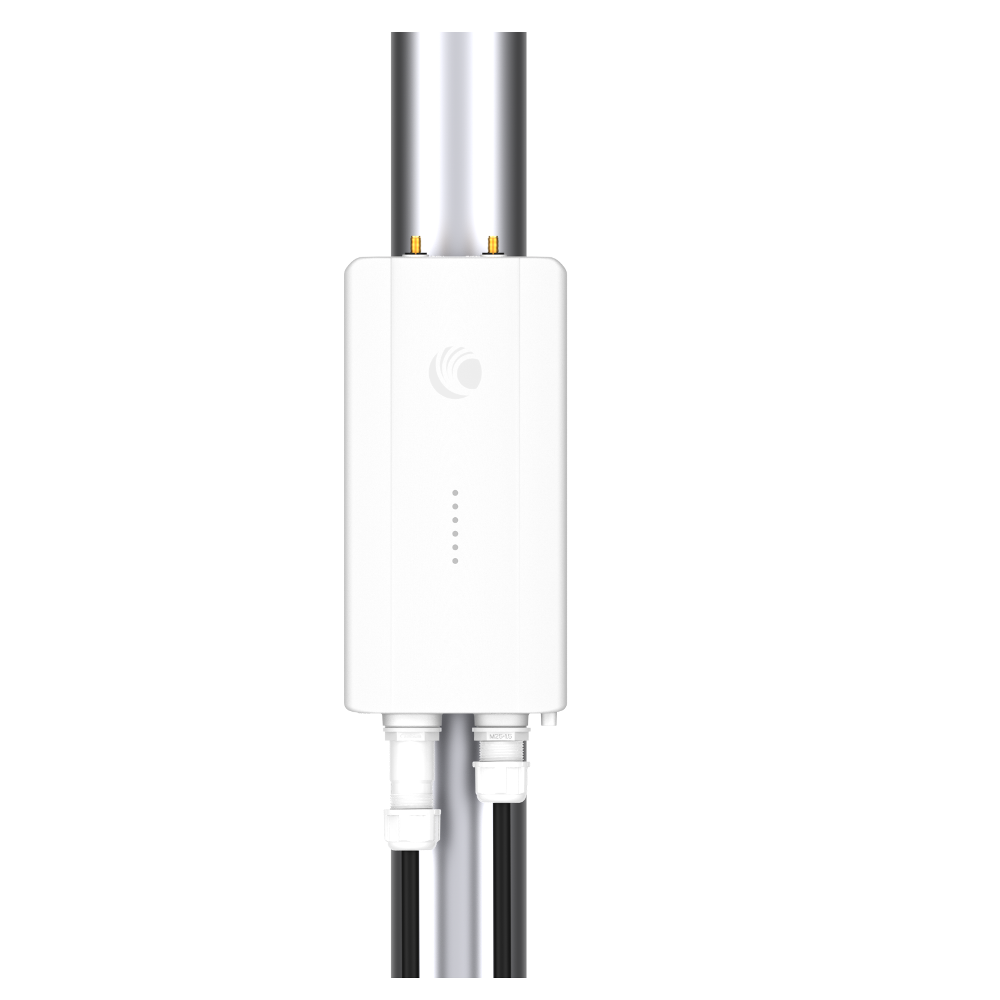

ePMP 4500L Access Point: 2x2 MIMO AP offering high capacity and flexible connectivity with sector antennas and horn antennas.
The ePMP 4500L features 2x2 MIMO, this access point is connectorized with two RP-SMA for use with Cambium Networks 90º/120º degree sector antenna. This unit is also compatible with RF Elements Twistport™ adaptor for ePMP. Featuring the latest technology from 802.11ax, 1024QAM and 80 MHz channel bandwidth, this access points delivers perfomance above 1 Gbps.
Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. The ePMP 4500 Access Point series is the fourth generation ePMP based on 802.11ax technology. ePMP 4500 Access point interoperate with Force 400 Subscriber modules and support backward compatibility to Force 300 Subscriber modules. A sophisticated scheduling and QoS engine combined with TDD synchronization allows the ePMP 4500 to deliver consistently high-quality service plans to a large number of end users.
All ePMP 4500 Access point series are managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge.
Features:
- High-performance, scalable and reliable
- access points for fixed wireless broadband
- ePMP 4500 features MU-MIMO and up to 4 Gbps in performance
- Low TCO with three-year hardware warranty
- Interoperable with all Force 400 and Force 300 Subscriber Modules
Specifications
Specifications C058940A162A
| Channel Width | 20 | 40 | 80 MHz |
| Proprietary Physical Layer | 2x2 MIMO/OFDMA based on 802.11ax underlying technology |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910–6135 MHz |
| (Note: Allowable frequencies and bands are dictated by individual country regulations) | |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interfaced | 100/1000 BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port |
| Supported Powering Methods | 5 V 30W PoE (included), standard 802.3at PoE Supply, or cnMatrix Tower Switch |
| Protocols Used | IPv4/IPV6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTPS, SNMPv2c, SSH |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ePMP 4500L | |
| Subscribers per Sector | Up to 120 |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -93 dBm to MCS 11 (1024 QAM-5/6) = -63 dBm (per chain |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -90 dBm to MCS 11 (1024 QAM-5/6) = -60 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -87 dBm to MCS 11 (1024 QAM-5/6) = -57dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| GPS Synchronization | Yes, via Internal GPS |
| QoS (Quality of Service) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support |
| Performance cont’d | |
| ePMP 4500L | |
| Transmit Power Range | 0 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna | 90º/120º 2x2 Sector Antenna (C050900D021B) |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Weight | 1.3 kg (2.9 lbs) |
| Dimensions (H x W x D) | 256 x 125 x 47 mm (10.1 x 4.9 x 1.9 in) |
| Power Consumption | 28W Maximum |
| Input Voltage | 44V to 59V |
| Sector Antenna Connection | 2 x 50 ohm, RP (Reverse Polarity) SMA Also compatible with RF Elements Twistport™ Adaptor for ePMP |
| GPS Antenna Connection | 1 x 50 ohm, SMA; external GPS External GPS Puck included in packaging |
| Security | |
| Encryption | All models: 128-bit AES (CCMP mode) |
| Certifications | |
| ePMP 4500L | |
| FCCID | Z8H89FT0062 |
| Industry Canada Cert | 109W-0062 |
| CE | See Cambium Website for Declaration of Conformity |
