KP Performance 4.9 to 6.4 GHz, 30 Degree Horn Antenna, 19.0 dBi, 2-Port

KP Performance KP-5HA-30

4.9 to 6.4 GHz, 30 Degree Horn Antenna, 19.0 dBi, 2-Port

The KP-5HA-30 is a high performance symmetrical horn antenna with a 6 dB beamwidth of 30° and a stable gain of 19 dBi and over an ultra-wide bandwidth of 4.9 GHz to 6.4 GHz.

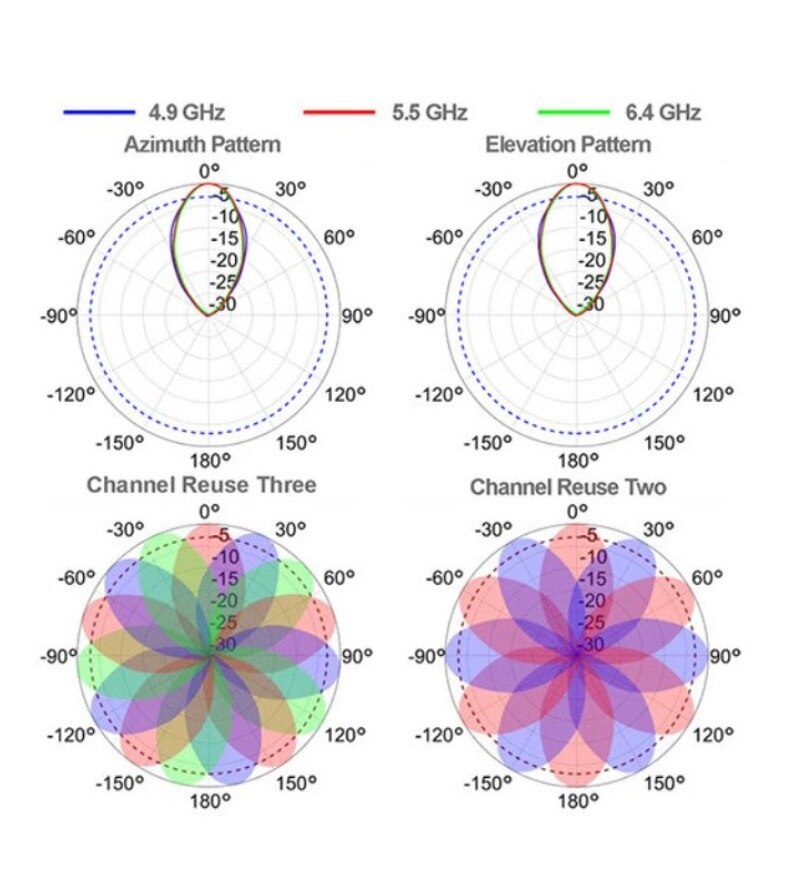

The horn antenna’s symmetrical radiation patterns was optimized using advanced genetic algorithm techniques to have significantly reduced side lobes that rapidly drops below 30 dB outside the main beam and a minimum front-to-back of 43 dB. The highly suppressed side lobes and superior front to back allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments.

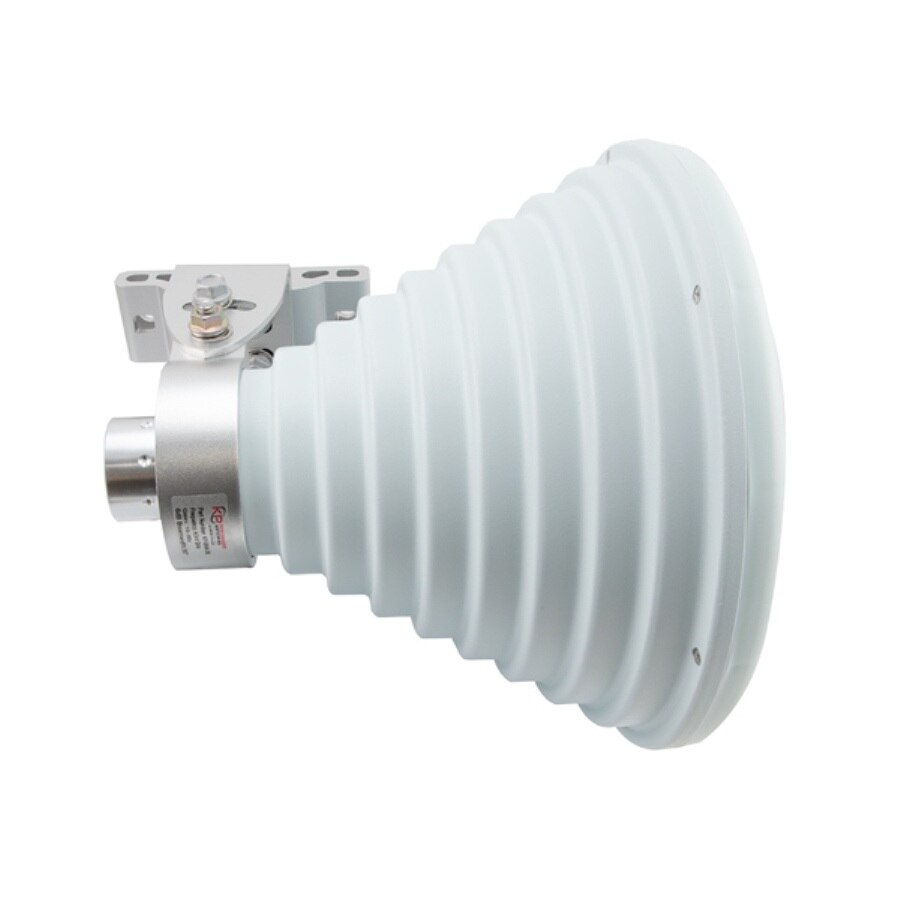

The KP-5HA-30 horn antenna’s compact 10” diameter conical form factor and highly focused radiation makes it ideal for high-density deployments and filling in coverage alongside wider-angle sector antennas. The polarization is adjustable between horizontal/vertical and ±45° slant, making the horn compatible with any 4.9 GHz to 6.4 GHz single or dual polarization 2 x 2 MIMO radio and eliminates the risk of link strength degradation due to polarization mismatch.

Rugged and weatherproof, the KP performances horn antenna provides a durable platform built for a broad range of environments and feature a heavy-duty UV-resistance plastic radome for all-weather operation. The powder coated, high-strength aluminum horn and mounting brackets is built to withstand wind speeds of up to 100mph and survive in corrosive environments with large swing in seasonal weather not impacting performance.

Features:

• High-performance gain and patterns that are stable over a wide bandwidth
• Interference mitigation with highly suppressed side-lobes and superior front-to-back that allows channel reuse
• Over 25 dB cross polarization discrimination and port isolation for optimal MIMO performance
• Ideal for high-density AP deployments with radio co-location due to compact size and highly focused radiation
• Improved coverage near and far from the tower with equal elevation and azimuth beamwidths
• Adjustable horizontal / vertical or ± 45° slant polarization that is compatible with all 5 GHz CPE radios
• Quick-connect waveguide allows polarization to be adjusted and quick change of adapters without tools
• Direct Connect radio-specific and dual polarized N-type connector adapters available
• Fine azimuth- and elevation- tilt markings to simplify alignment Mountable on left or right side of the pole without flipping upside down

Applications:

• Wireless MIMO LAN systems & IEEE 802.11n applications Point-to-multipoint (PtMP) requiring sectorial coverage
• Supports public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz), and up to 6.4GHz for world-wide market
• Mobile WiMAX Wireless Internet Provider "cell" sites
• Gap coverage close to the tower
• High-density deployments requiring frequency reuse to achieve high capacity and data rates
• Valleys, mountains, mines, or regions with large elevation changes that need uniform coverage

Compatible Adapters:

• KP-5PDA-N 2 x N-Type female connectors
• KP-5PDA-C5C Mimosa® C5C™
• KP-5PDA-USI5 Ubiquiti® PrismStation™ 5AC, IsoStation™ M5
• KP-5PDA-URPG2 Ubiquiti® Prism™ 5AC and 5AC Gen 2, airFiber™ 5X and 5X HD
• KP-5PDA-EPMP2000 Cambium® ePMP2000™
• KP-5PDA-EPMP13L Cambium® ePMP1000™, Force 300CSM™ and ePMP3000L™
