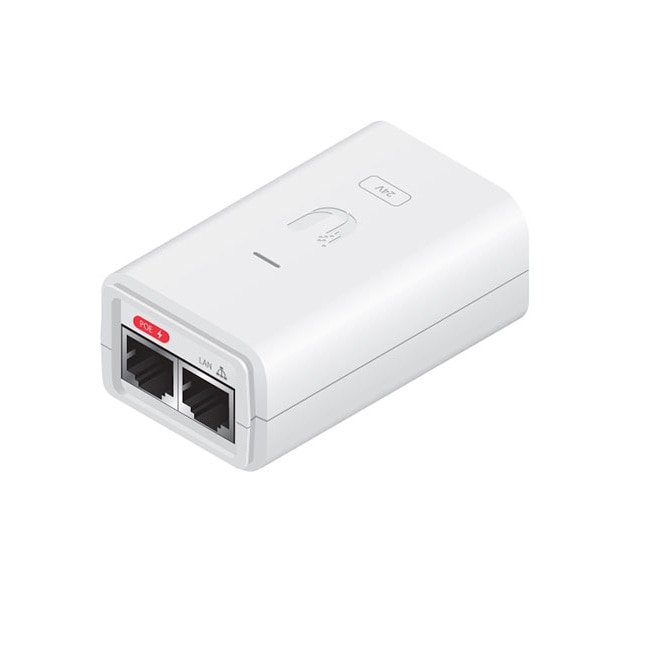

Ubiquiti PoE Adapter Injector, 24VDC, .3A, Gigabit

  • SKU: POE-24-7W-G-WH
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: 1397 In Stock    (updated live)
    68 In stock at College Station
    1329 In stock at Mississippi

Ubiquiti Networks POE-24-7W-G-WH

PoE Adapter Injector, 24VDC, .3A, Gigabit

The Ubiquiti PoE Adapter Injector, 24VDC, .3A provides earth grounding and surge protection. This PoE helps protect against ESD events and powers Ubiquiti PoE devices. Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including:

  • airFiber
  • airMAX
  • EdgeMAX
  • mFi
  • UniFi AP
  • UniFi Video / airVision

Ubiquiti PoE Adapter Compatibility with the airGateway Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground

Specifications POE-24-7W-G-WH

Dimensions72 x 45 x 33 mm (2.84 x 1.75 x 1.33")
Weight72.1g (2.54 oz)
Output Voltage24VDC @0.3A
LAN Activity IndicatorNo
Gigabit LAN PortYes
Remote Reset CapabilityYes
Reset ButtonYes
Related Voltage100-240VAC @ 50/60Hz
Input Current0.3A @ 120VAC,
0.2A @ 240VAC
Inrush Current<40A Peak @ 120VAC,
<70A Peak @ 230VAC
Output Ripple1% Max.
Switching Frequency65 kHz
Line Regulation≤ 3%
Load Regulation± 5%
2-Pair PoweringPins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature-30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Non-Condensing
AC ConnectorIEC-320 C6
Data IN / POERJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection11V Data, 60V Power
Max. Surge Discharge1500A (8/20µS) Power
Peak Pulse Current36A (10/1000µS) Data
Shunt Capacitance<5 pf data
Response Time<1 nS
CertificationsCE, FCC, IC, UL
