  • PREMIER TP-Link Aginet Unified Cloud (TAUC) | ISP Supplies
Complete managed Wi-Fi solutions for ISPs

TP-Link Aginet
Unified Cloud (TAUC)

TR-369 with cloudNetwork monitoringOpen API
EasyMeshTM compatibleRemote diagonistic & config

TP-Link Aginet Unified Cloud (TAUC)

As the next-generation of Wi-Fi management, TP-Link Aginet Unified Cloud (TAUC) Solution offers the TR-369 USP cloud server, carrier-grade TR-369 CPE, a customized mobile app, and tailor-made API services for our ISP customers. ISPs can easily reduce operational cost &
gain maximum profit with this highly powerful & flexible solution.

What can TAUC offer & solve ?

Industry Standards +
Open Standard

TAUC adopts TR-369 and TR-069 as the dual-stack management protocols with the updated TR-181 data model and multi-AP support for EasyMesh topology & advanced remote Wi-Fi diagnostics.

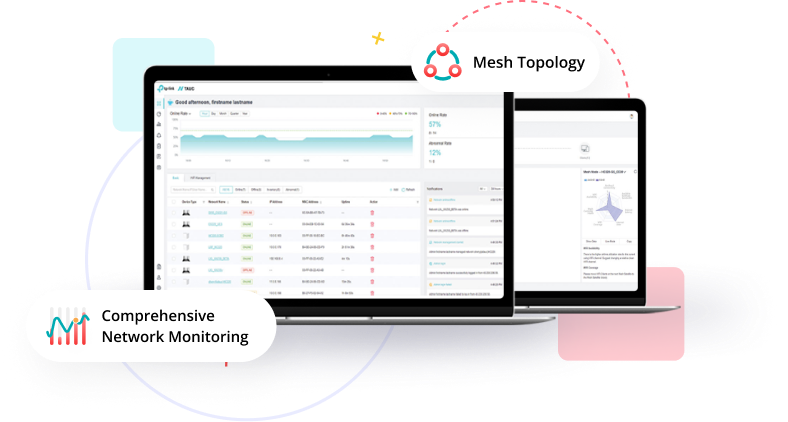

Unified cloud management

100% Centralized cloud management for Wi-Fi routers, EasyMesh, DECO, and PON products, and more - all controllable from a single interface anywhere at anytime.

Speed testingOnline rateEvents & alerts

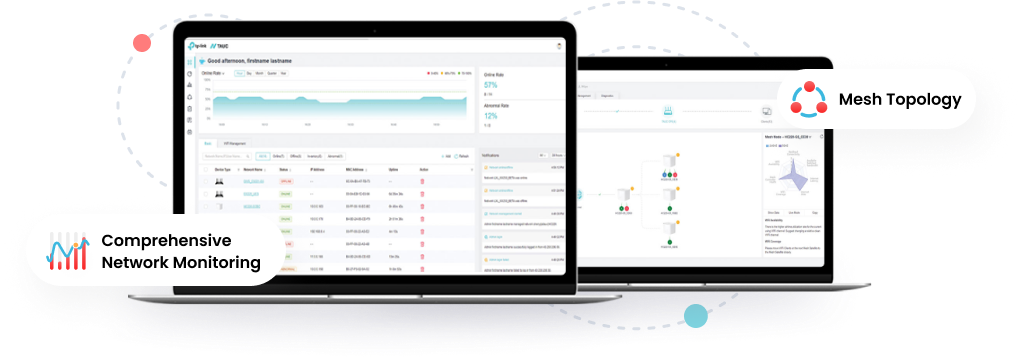

Multi-Dimension Wi-Fi metrics

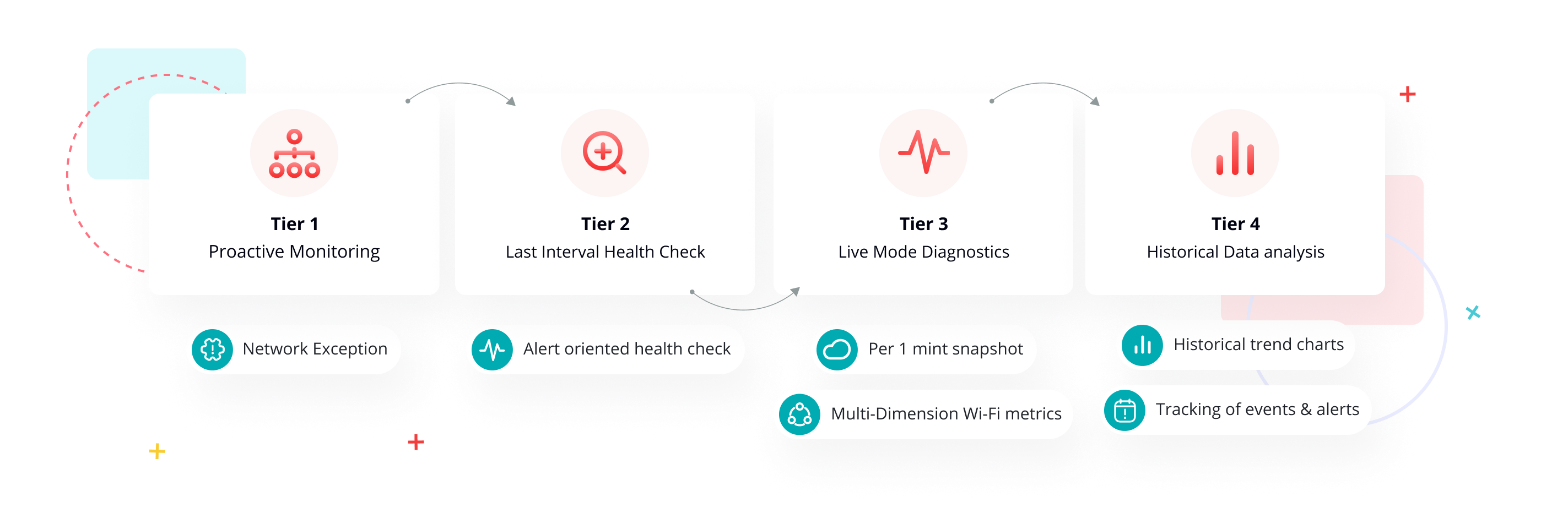

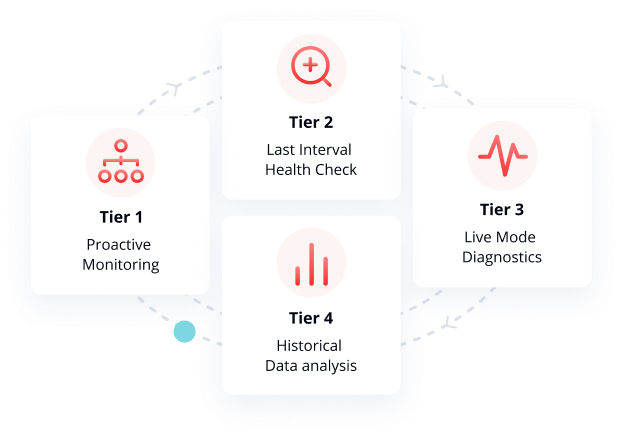

Remote Diagnostics &
Near Real-Time Troubleshooting

Deliver stellar support to your customers by troubleshooting their issues live and remotely. Identify out of range devices, physical barriers, poor internet quality, and Wi-Fi interference.

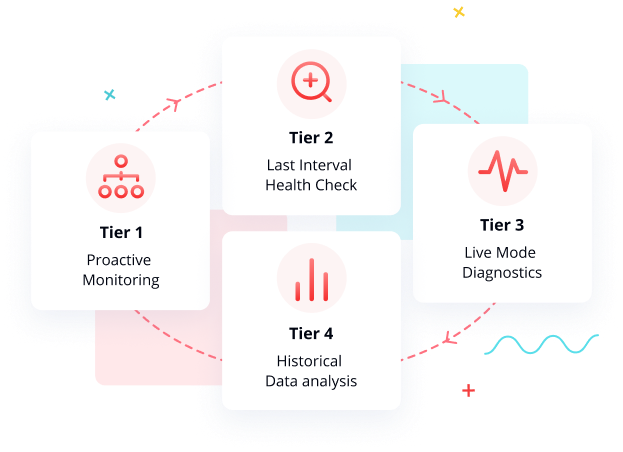

Network exceptionAlert oriented health check
per 1 mint snapshotMulti-Dimension Wi-Fi metrics
Historical trend chartsper 1 mint snapshot

Agile Task - Cloud Service
for Batch Updates

All tasks are performed from the TAUC cloud to the target CPE groups. Firmware upgrades and mass parameter settings can be performed at scheduled times

Cloud to CPEPerformance measure testing
Schedule execution

Zero-Touch Deployment

Plug and play with automatic provisioning simplifies and expedites installation.

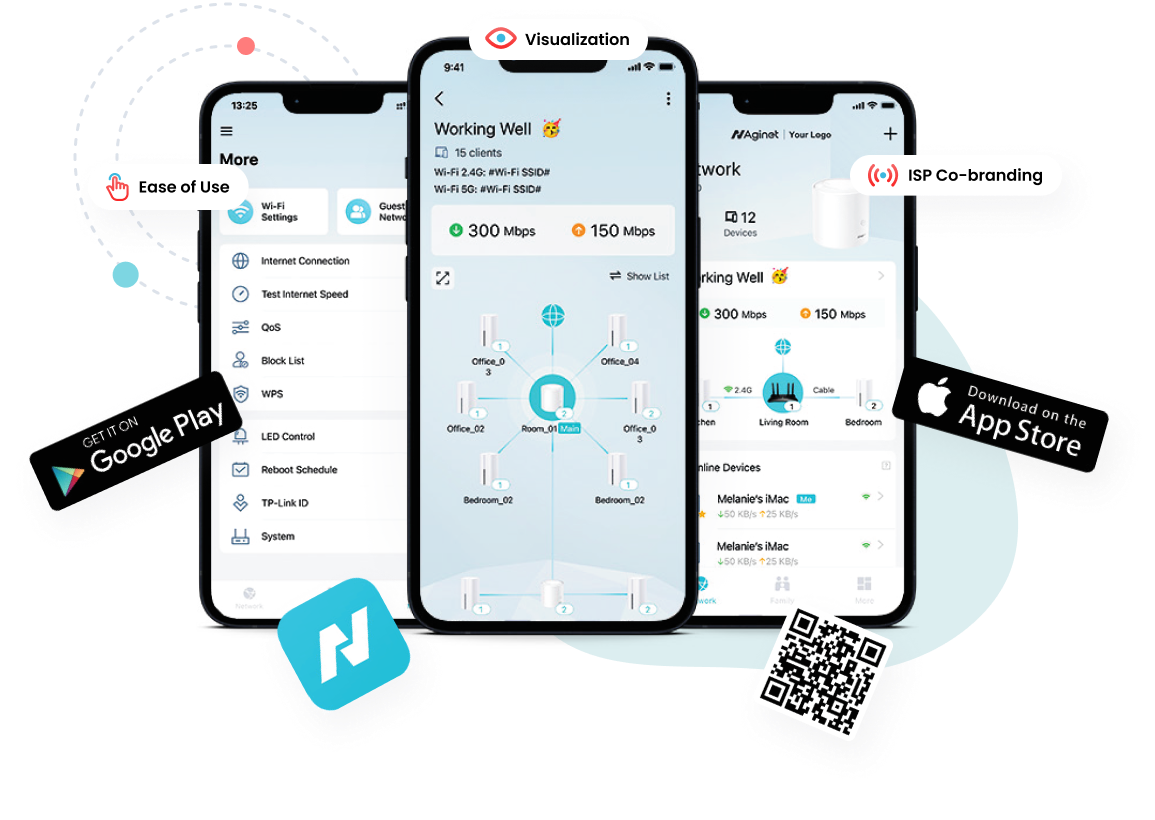

TP-Link’s Aginet App

End users can manage and control their in-home Aginet devices through the Aginet App & quickly diagnose
network issues. ISPs can customize the App with their logo and provide customer support contact info for quick in-App reference.

Key TAUC benefits for ISPs

Premier whole home mesh
Wi-Fi 7 & Wi-Fi 6E/6/5 product line

HB810

BE22000 Tri-Band
Wi-Fi 7 Router

Dual 10 GE & 2.5 GE Ports

11520 Mbps 1 (6 GHz) +
8640 Mbps (5 GHz) +
1376 Mbps (2.4 GHz)

1x 10GE/SFP+ Combo WAN/LAN +
1x 10GE + 2x 2.5GE LAN ports

Multi-Link Operation Support

HB610

BE11000 Dual-Band
Wi-Fi 7 Router

Four (4) 2.5 GE Ports

5760 Mbps (6 GHz) +
4320 Mbps (5 GHz) +
574 Mbps (2.4 GHz)

1x 2.5GE WAN/LAN +
3x 2.5GE LAN ports

Multi-Link Operation Support

EX1110

AXE11000 Tri-Band
Wi-Fi 6E Router

Dual 10 GE

4804 Mbps (6 GHz) +
4804 Mbps (5 GHz) +
1148 Mbps (2.4 GHz)

1x 10 GE WAN + 1x GE LAN

1024-QAM and HE160
(5 GHz only)

EX920

AXE7800 Tri-Band
Wi-Fi 6E Router

Dual 2.5 GE

2402 Mbps (6 GHz) +
4804 Mbps (5 GHz) +
574 Mbps (2.4 GHz)

1 x 2.5 GE WAN + 1 x 2.5 GE
+ 2x GE LAN + 1 x USB 3.0

1024-QAM & HE160 (5 GHz only)

HX716 Pro

AXE5400 Tri-Band Mesh
Wi-Fi 6E System

2.5 GE WAN

2402 Mbps (6 GHz) +
2402 Mbps (5 GHz) +
574 Mbps (2.4 GHz)

1 x 2.5 GE WAN/ LAN ports +
2 x GE LAN ports

1024-QAM & HE160 (5 GHz only)

HX510 & HX220

AX3000 (HX510) &
AX1800 (HX220) Mesh
Wi-Fi 6 System

Fast Wi-Fi 6 Dual Band 2x2

1x GE WAN/LAN + 2x GE LAN ports

1024-QAM and HE160**

HX510-PoE

AX3000 Dual-Band
Mesh Wi-Fi 6 System

Dual 2.5 GE

Fast Wi-Fi 6 Dual Band AX3000

1x 2.5GE WAN/LAN +
1x GE LAN ports

Dual PoE+ (802.3at) port

HX510-Outdoor

AX3000 Dual-Band
Mesh Wi-Fi 6 System

Dual 10 GE & 2.5 GE Ports

Fast Wi-Fi 6 Dual Band AX3000

1x GE PoE + WAN/LAN +
1X GE PoE + LAN ports
(802.3 at PoE)

HC220-G5

AC1200 Dual-Band
Mesh Wi-Fi 5 System

Fast Wi-Fi 5 Dual Band AC1200

1x GE WAN/LAN + 2 GE LAN ports

Band Steering & Seamless
Roaming

XGS-PON/GPON

Higher bandwidth, higher quality of service

XGS-PON provides up to 10 Gbps of uplink and downlink bandwidth simultaneously. It meets the higher
bandwidth demand of various high-bandwidth services while achieving a high-quality and efficient broadband network.

XGS-PON/GPON terminal

XGZ030

1-Port XGS-PON
Terminal

XGS-PON WAN port + 10G LAN port

Supports OMCI

XZ005-G6

1-Port LAN XPON
Terminal

1.25GE LAN port

GPON + EPON dual mode

XZ000-G6v

1-Port GigabitXPON
Terminal withVoIP

GPON + EPON dual mode

1 x FXS port

XZ000-G3

1-Port Gigabit GPON
Terminal

1 x GE LAN port

Supports OMCI

XGS-PON/GPON OLTs

DS-P7500-08

DeltaStream 8-Port
Pizzabox XGS-PON
Optical Line Terminal

8x XGS-PON & GPON
Combo Ports

Dual Power Supply

2x 40 GE QSFP+ & 2x 10 GE
SFP+ uplink ports

1x RU45 Console & 1x RU45
Management port 1x Alarm port

DS-P7001-04/08/16

DeltaStream 4/8/16-Port
Pizzabox GPON
Optical Line Terminal

4/8/16x GPON ports

Dual Power Supply

1/2/4x 10GE SFP+ & 1/2x GE
RJ45 uplink ports

1x RJ45 Console & 1x RJ45
Management port 1x Alarm port

DS-P8000-X2

DeltaStream Chassis
Optical Line Terminal

2 x service boards

Dual Power Supply

6 x 10G SFP + & 1 x 1000 M
RJ45 port

1x RJ45 Console & 1x RJ45
Management port 1x Alarm port

DS-LGPA-08/16 & DS-LSPA-08/16

DeltaStream Chassis
Optical Line Terminal
Service Board

Broadcom solution

8/16 x GPON ports or 8/16x
XGS-PON & GPON combo ports

PON Features
  • Standard OMCI Management
    Supported.
  • ONU Auto Authentication.
  • Multi-Service traffic identify
    and Rate Limit.
L2 and L2+ Features
  • Static Routing.
  • IGMP snooping/MLD snooping.
  • STP/RSTP/MSTP.
  • DHCP Relay.
  • IEEE 802.1p/DSCP QoS.
Security and Management
  • ACL (IPv4/IPv6).
  • IP-MAC-Port-VID binding.
  • ARP inspecion.
  • Ip source guard.
  • DoS defend.
